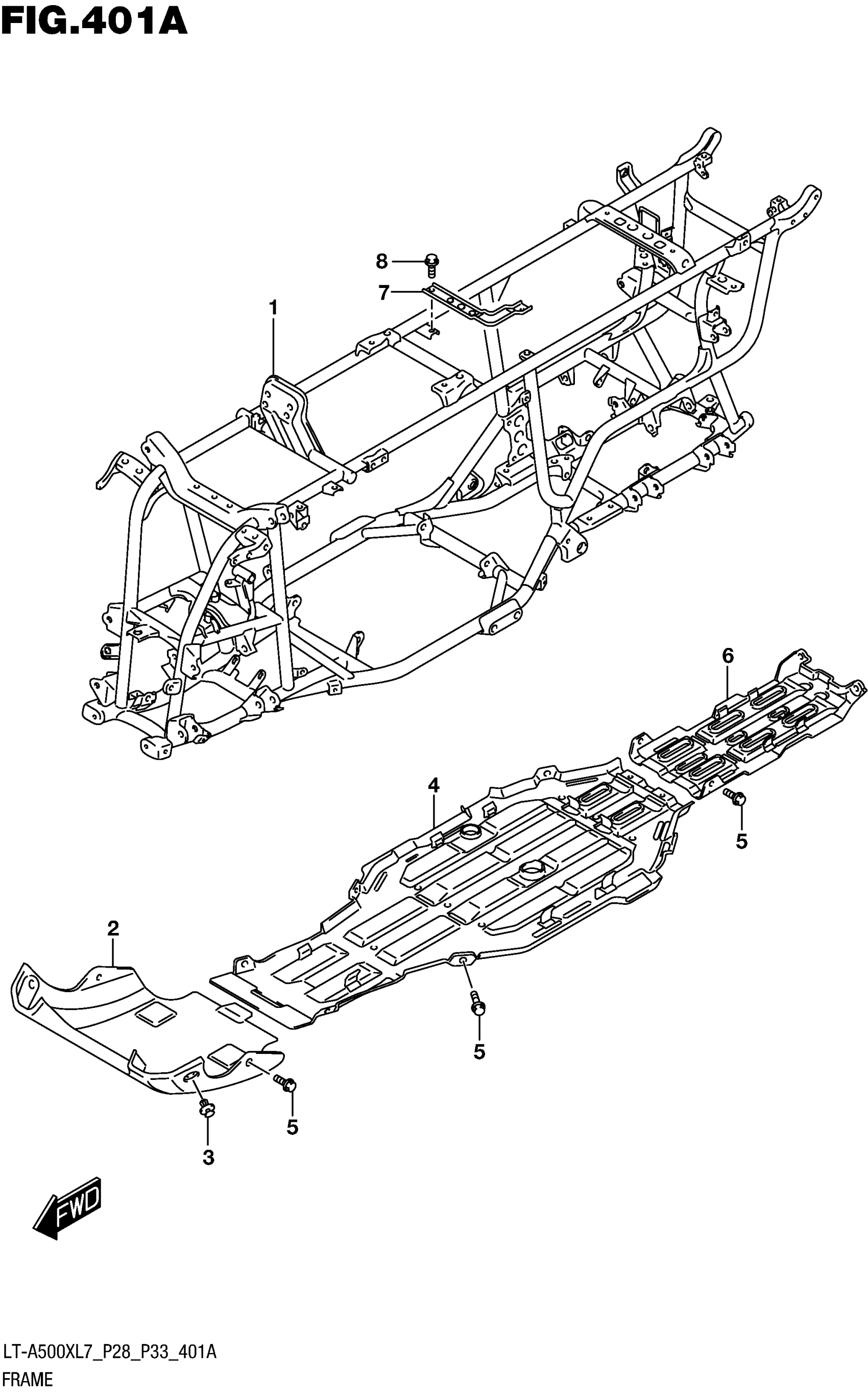

Suzuki LT-A500X AXI (RED, GREEN) (2017) FRAME Diagram

#

Description

Price

1

FRAME (BLACK)

41100-31GF1-019

$2,266.58

2

PROTECTOR, FRONT (BLACK)

42521-31G00-291

$57.52

3

CLIP

09409-08335

$2.44

4

PROTECTOR, ENGINE This part replaces 42511-31G02.

42511-31G04

$43.30

5

BOLT (6X12)

09111-06085

$4.16

6

PROTECTOR, REAR This part replaces 42531-31G01.

42531-31G01-291

$29.74

7

PLATE, BATTERY

41561-31G01

$7.82

8

BOLT (6X16)

09103-06283

$2.80
