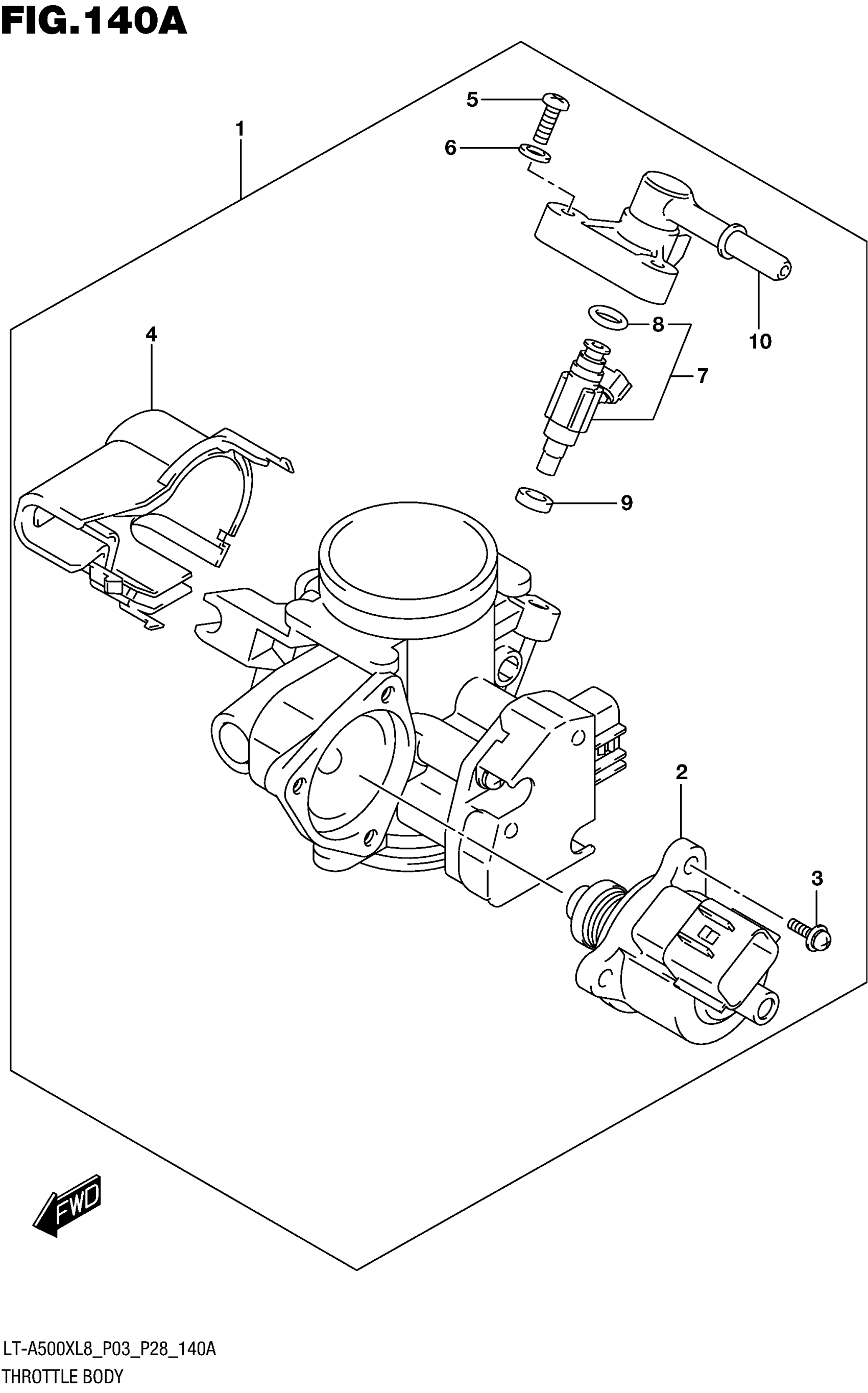

Suzuki LT-A500X, AXI, L8 (2018) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE This part replaces 13400-31H10.

13400-31H11

$864.68

2

.MOTOR, ISC STEPPING

13520-31G00

$188.05

3

.SCREW

13601-13G00

$3.33

4

.COVER

13578-31G00

$18.22

5

SCREW

13601-11J00

$4.51

6

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52

7

.INJECTOR ASSY, FUEL

15710-31G10

$281.52

8

..O RING

15717-31G00

$11.66

9

SEAL

15722-29G00

$10.01

10

.DELIVERY PIPE

15731-31G10

$228.95
