2018 Suzuki LT-A500X, AXI, L8 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2018 Suzuki LT-A500X, AXI, L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

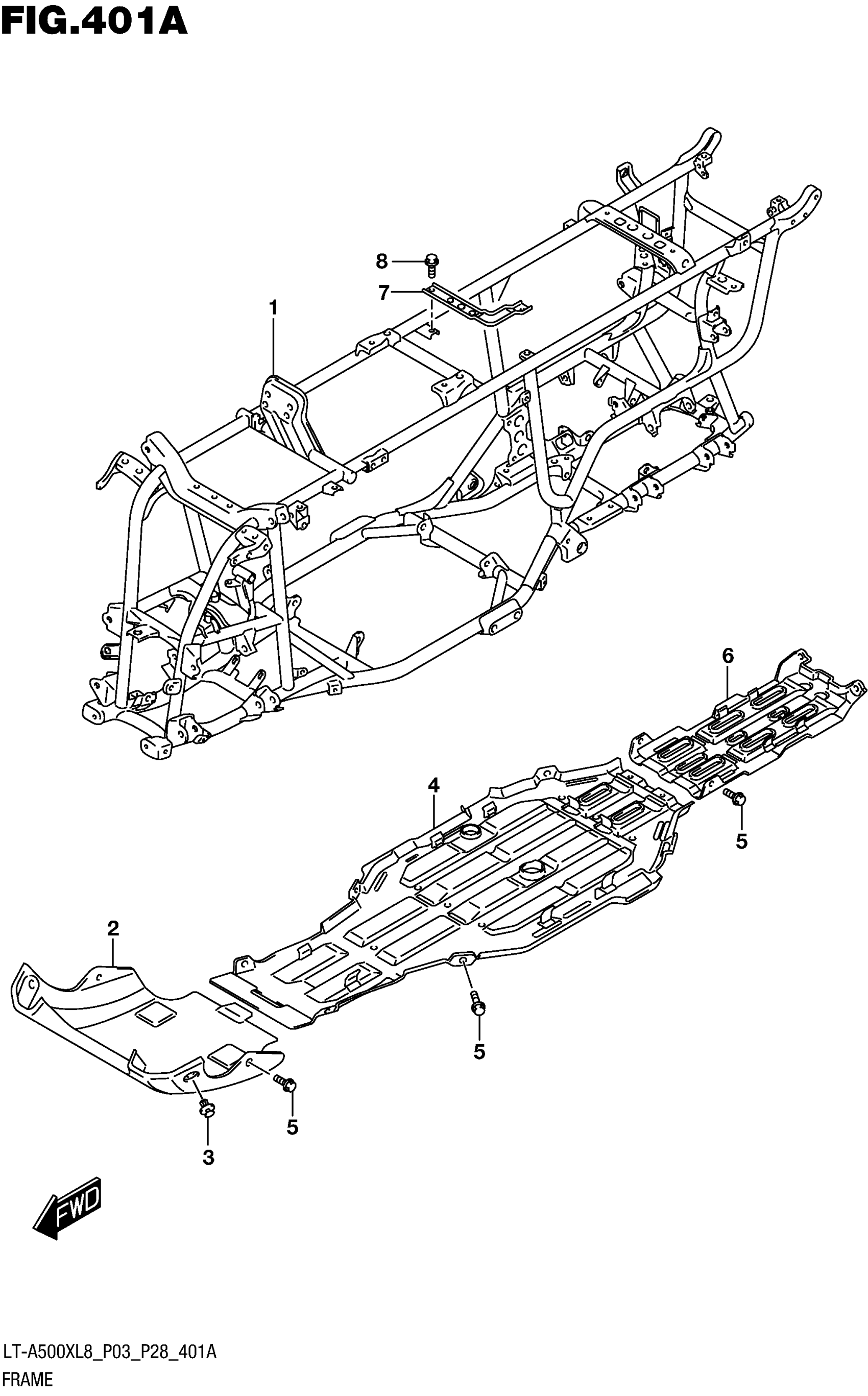

2018 Suzuki LT-A500X, AXI, L8 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK)

41100-31GF1-019

1
Out of stock

2

PROTECTOR, FRONT (BLACK)

42521-31G00-291

1
Out of stock

3

CLIP

09409-08335

2
Out of stock

4

PROTECTOR, ENGINE This part replaces 42511-31G02.

42511-31G04

1
Out of stock

5

BOLT (6X12) This part replaces 09111-06063.

09111-06085

12
Out of stock

6

PROTECTOR, REAR This part replaces 42531-31G01.

42531-31G01-291

1
Out of stock

7

PLATE, BATTERY

41561-31G01

1
Out of stock

8

BOLT (6X16)

09103-06283

2
Out of stock
