2018 Suzuki LT-A500X, AXI, L8 Electrical Diagram

← All diagrams

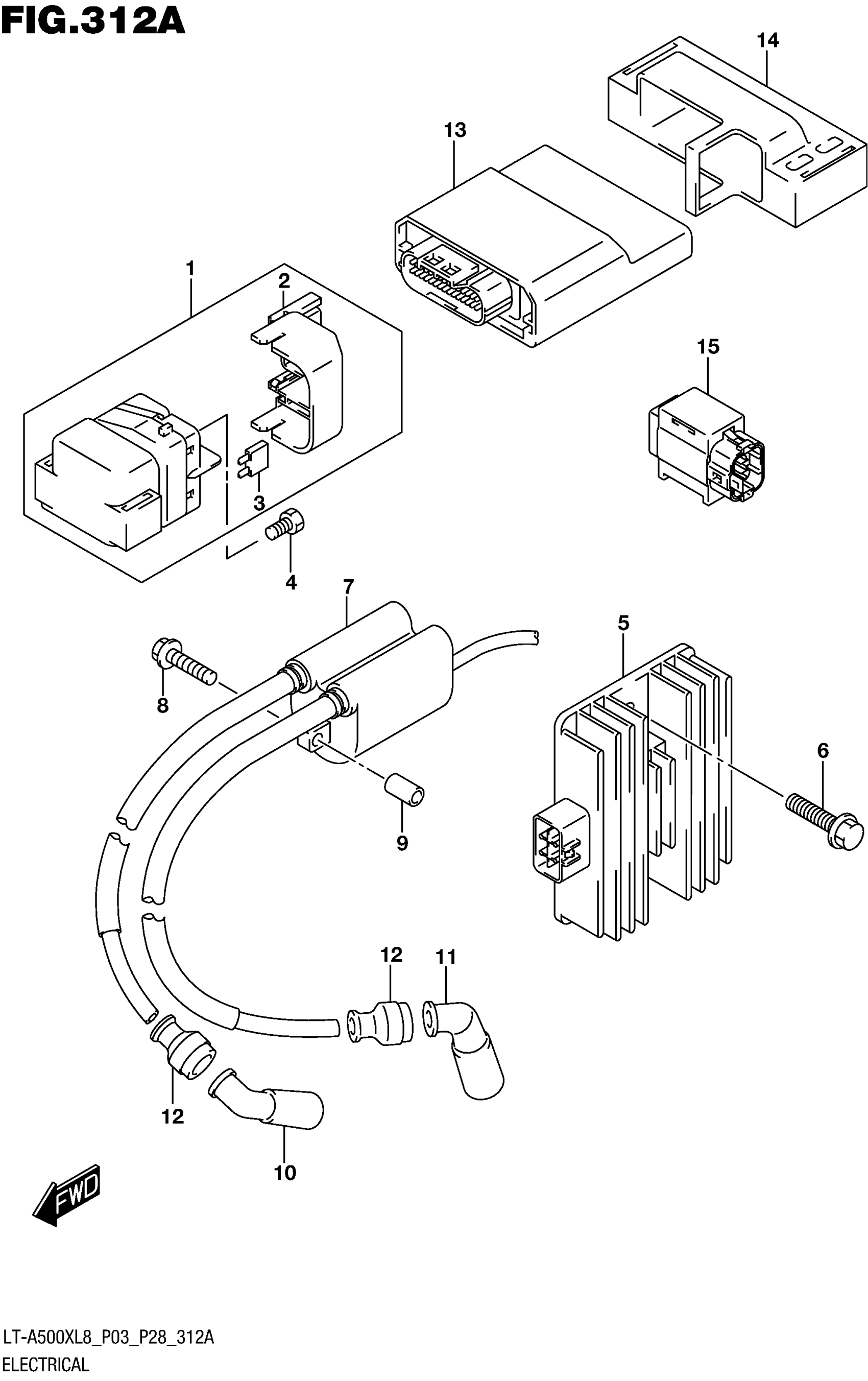

Find the part on the Electrical diagram for your 2018 Suzuki LT-A500X, AXI, L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki LT-A500X, AXI, L8 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

1
Out of stock

2

.COVER, STARTER RELAY

31861-38G00

1
Out of stock

3

.FUSE (30A)

09481-30501

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-42F10

1
Out of stock

6

BOLT

01550-0620A

2
Out of stock

7

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

1
Out of stock

8

BOLT

01547-0640A

2
Out of stock

9

SPACER (6.4X10X18)

09180-06195

2
Out of stock

10

CAP ASSY,SPARK PLUG

33510-31G10

1
Out of stock

11

CAP ASSY,SPARK PLUG

33510-31G10

1
Out of stock

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

2
Out of stock

13

CONTROL UNIT, FI

32920-31HC0

1
Out of stock

14

HOLDER, FI CONTROL UNIT

32980-31GA0

1
Out of stock

15

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock
