Description

Price

1

STARTER ASSY,RECOIL | Includes Item(s) 2 - 6

18100-24503

$210.26

2

REEL

18120-24500

Unavailable

3

RATCHET SET

18130-24400

$22.50

4

.SPRING,SPIRAL

18142-24400

$27.09

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

ROPE ASSY

18200-24501

$35.90

7

BOLT

09103-06236

$2.71

8

CUP,STARTER

18410-09F02

$86.98

9

NUT This part replaces 08316-10103.

08316-1010B

$2.65

10

O RING (D:1.9,ID:12.6)

09280-12009

$2.87

11

SPACER

12359-44D20

$36.30

12

BEARING

09262-25006

$23.05

13

O RING (D:2.4,ID:44.0)

09280-44007

$10.96

14

OIL SEAL (25X36X6)

09283-25094

$33.70

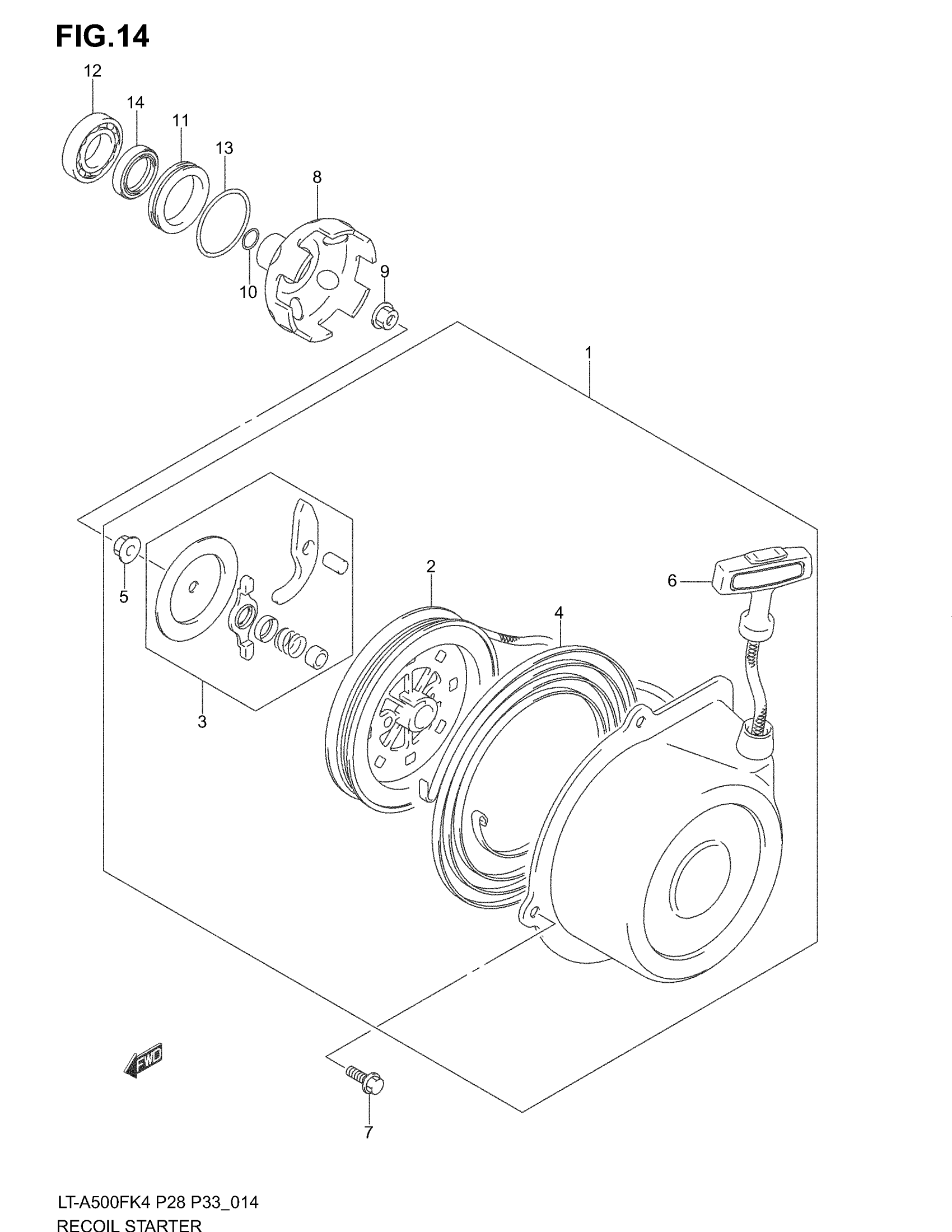

Suzuki LT-A500FB (2004) RECOIL STARTER Diagram
