2004 Suzuki LT-A500FB Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2004 Suzuki LT-A500FB, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

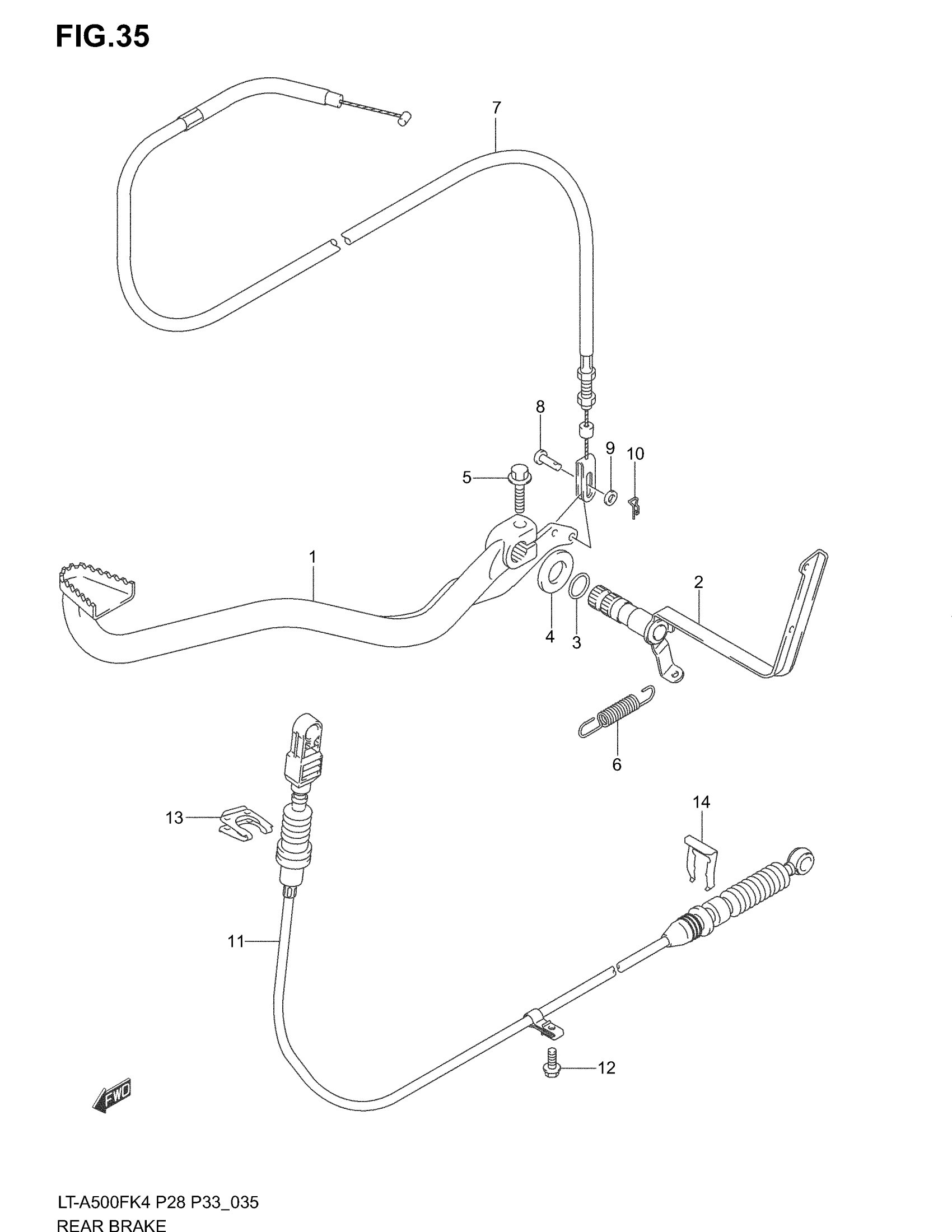

2004 Suzuki LT-A500FB Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-03G00

1
Out of stock

2

ARM, ROD

43120-03G11

1
Out of stock

3

O RING

09280-17002

2
Out of stock

4

WASHER

09160-17050

1
Out of stock

5

BOLT This part replaces 09103-08152.

09103-08419

1
Out of stock

6

SPRING, RETURN

09443-12019

1
Out of stock

7

CABLE, REAR BRAKE

58810-03G10

1
Out of stock

8

PIN

09200-06013

1
Out of stock

9

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

10

COTTER PIN

09385-06012

1
Out of stock

11

CABLE, REAR FINAL LOCK

58670-03G00

1
Out of stock

12

BOLT This part replaces 01550-06203.

01550-0620A

1
Out of stock

13

CLIP

28375-78A00

1
Out of stock

14

E RING

09383-19005

1
Out of stock
