Description

Price

1

RADIATOR ASSY, WATER

17710-03G10

$507.90

2

COVER, RADIATOR | Includes Item(s) 3 This part replaces 17760-09F00.

17760-09F01

$69.87

3

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.82

4

SCREW This part replaces 02142-06083.

02142-0608A

$1.36

5

BOLT

09118-06097

$2.57

6

SPACER

09180-06290

$2.09

7

CUSHION

09320-10042

$2.90

8

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.97

9

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

10

SWITCH COM,ENG | Includes Item(s) 11 This part replaces 17680-50F70.

17680-50F71

$63.57

11

O RING

17689-50F00

$2.63

12

FAN ASSY, RADIATOR

17800-03G10

$388.33

13

LABEL, COOLING FAN | E33 This part replaces 17991-02F01.

17991-02F02

$3.27

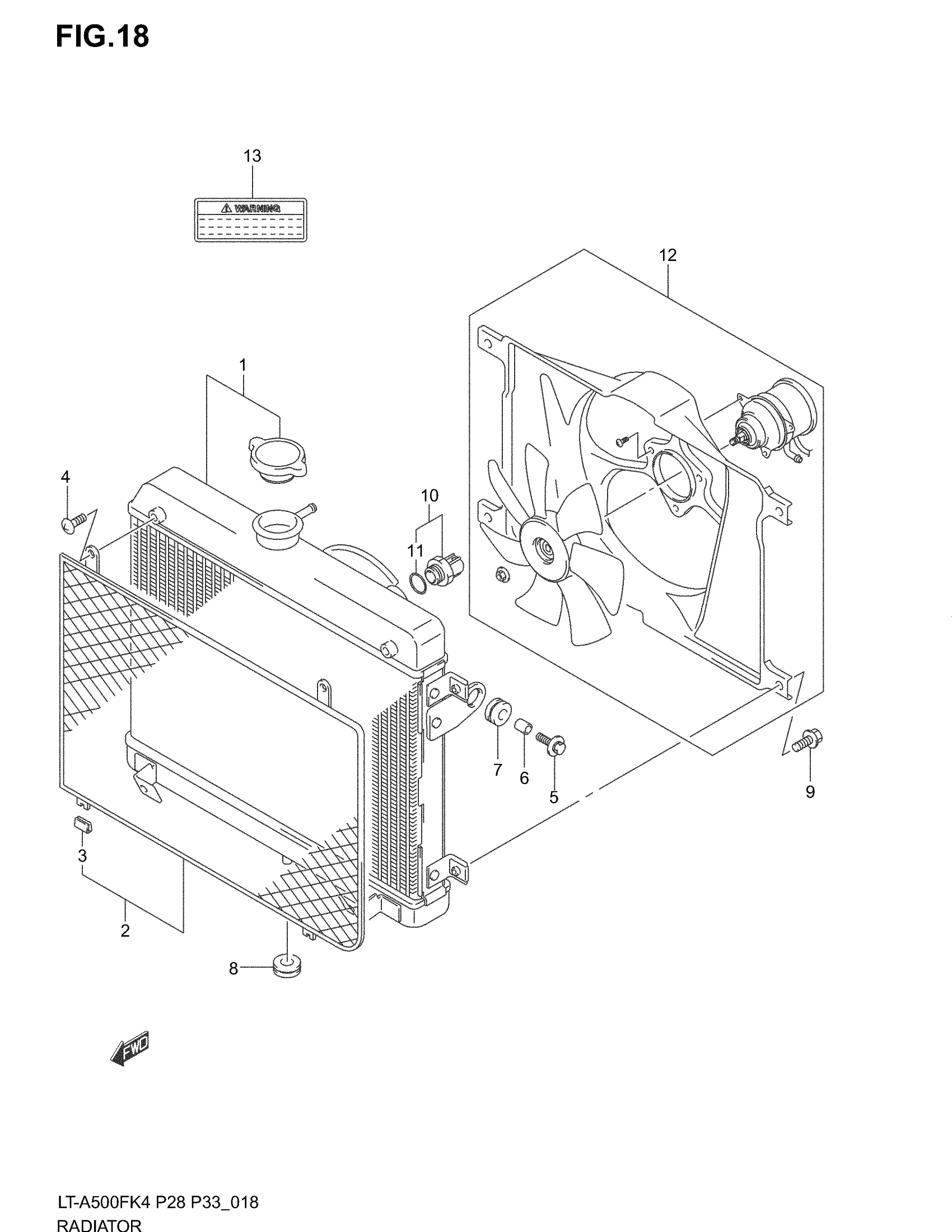

Suzuki LT-A500FB (2004) RADIATOR Diagram
