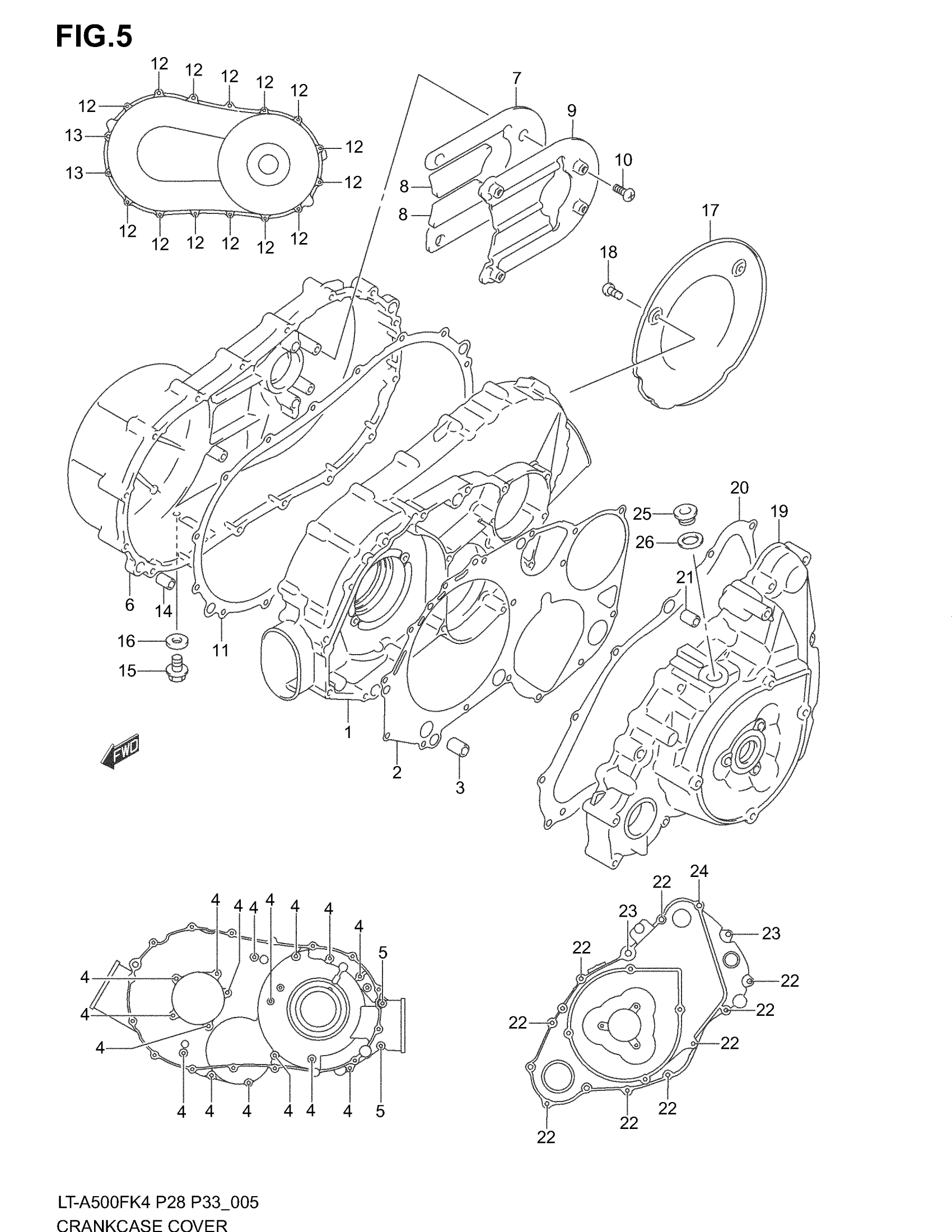

Suzuki LT-A500FB (2004) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-03G00

$564.42

2

GASKET

11482-09F50

$21.12

3

PIN

04211-13189

$2.19

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

5

BOLT This part replaces 01547-06753.

01547-0675B

$4.28

6

COVER, V BELT

11371-03G00

Unavailable

7

DAMPER, V BELT COVER NO.1

11372-03G00

Unavailable

8

DAMPER, V BELT COVER NO.2

11373-03G00

Unavailable

9

PLATE, V BELT COVER

11374-03G00

Unavailable

10

SCREW, V BELT PLATE

09125-06086

$3.00

11

GASKET

11484-09F50

$46.97

12

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

13

BOLT This part replaces 01547-06553.

01547-0655B

$2.74

14

PIN

04211-13189

$2.19

15

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

16

GASKET

09168-08029

$2.31

17

PLATE, AIR INTAKE

11343-03G10

Unavailable

18

SCREW

09125-06086

$3.00

19

COVER, MAGNETO

11351-03G00

$421.02

20

GASKET

11483-03G00

$23.55

21

PIN

04211-13189

$2.19

22

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

23

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

24

BOLT This part replaces 01547-06603.

01547-0660B

$2.87

25

PLUG, TDC CHECK

09248-16012

$4.19

26

GASKET

09168-16002

$1.89
