2007 Suzuki LT-A500F Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2007 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

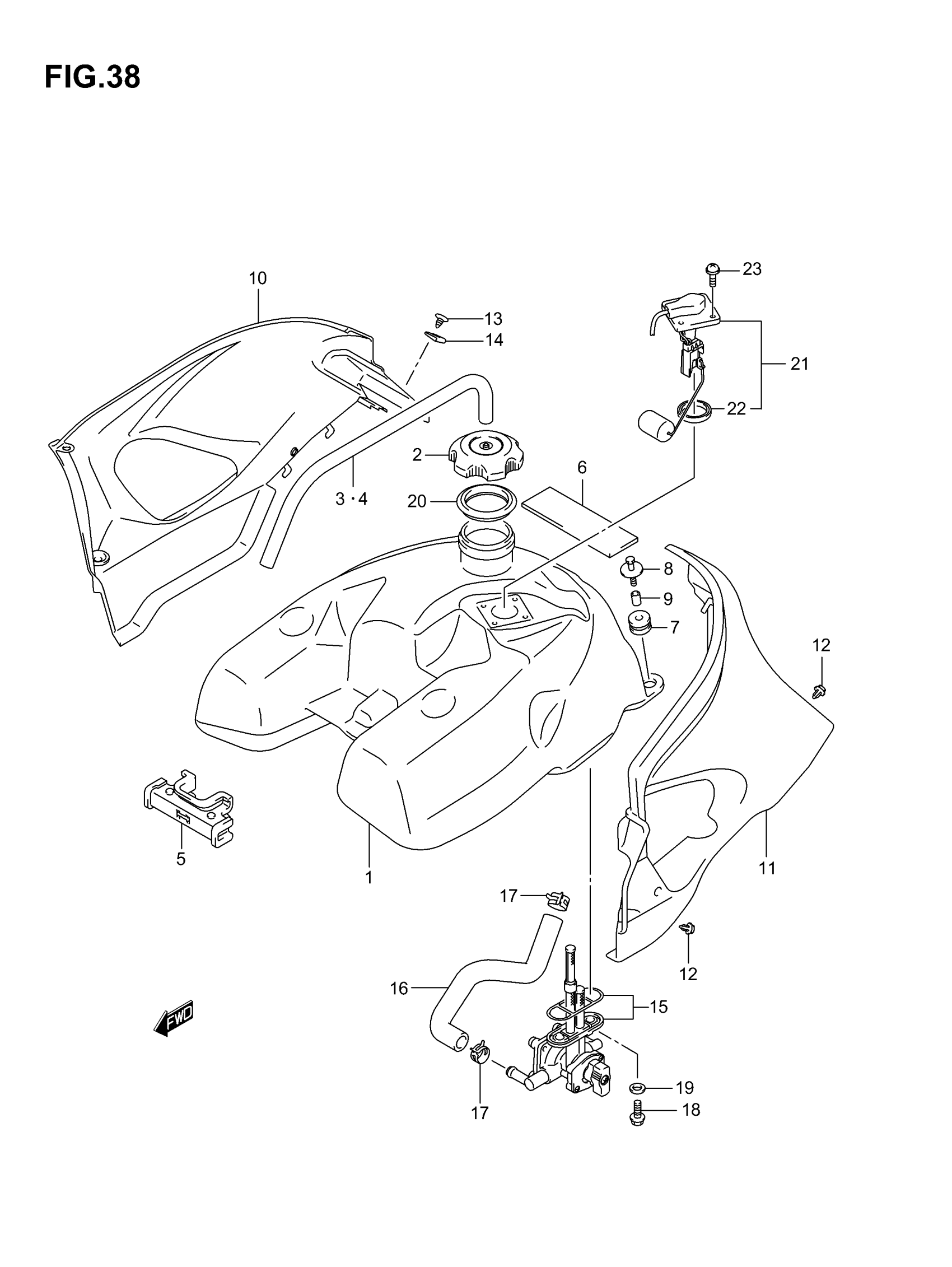

2007 Suzuki LT-A500F Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL

44100-03G10

1
Out of stock

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

1
Out of stock

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

5

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

1
Out of stock

6

CUSHION

47451-38A01

1
Out of stock

7

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

2
Out of stock

8

BOLT

09116-06050

2
Out of stock

9

SPACER

09180-06293

2
Out of stock

10

COVER, TANK RH (BLACK)

44271-03G03-291

1
Out of stock

11

COVER, TANK LH (BLACK)

44272-03G02-291

1
Out of stock

12

CLIP | MODEL K4/K5/K6

09409-07333

6
Out of stock

12

CLIP | MODEL K7

09409-08335

6
Out of stock

13

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

1
Out of stock

14

NUT

09148-05038

1
Out of stock

15

COCK ASSY,FUEL | MODEL K4/K5 This part replaces 44300-03G02.

44300-03G03

1
Out of stock

15

COCK ASSY, FUEL | MODEL K6/K7 This part replaces 44300-03G10.

44300-03G1V

1
Out of stock

16

HOSE, FUEL

44421-03G01

1
Out of stock

17

CLIP This part replaces 09401-11407.

09401-11415

2
Out of stock

18

BOLT

09103-06277

2
Out of stock

19

GASKET

09168-06026

2
Out of stock

20

RUBBER, INLET

44261-38F00

1
Out of stock

21

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 22

34810-03G00

1
Out of stock

22

.PACKING,FUEL LEVEL GAUGE This part replaces 34825-03A00.

34825-03A01

1
Out of stock

23

SCREW This part replaces 02112-76163.

02112-7616A

4
Out of stock
