2007 Suzuki LT-A500F Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2007 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

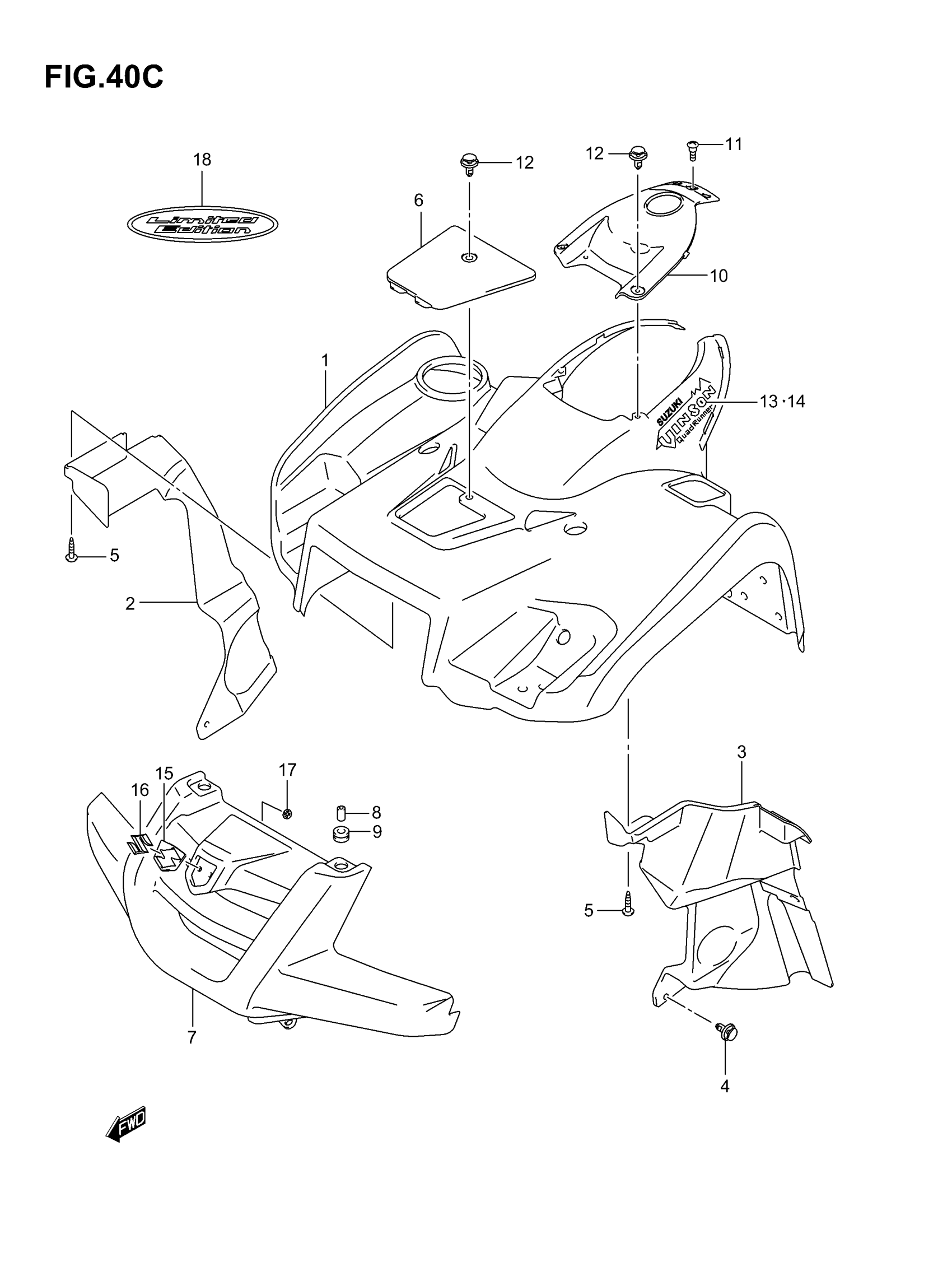

2007 Suzuki LT-A500F Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT This part replaces 53111-03G20-YT9.

53111-03G21-YT9

1
Out of stock

1

FENDER,FRONT This part replaces 53111-03G20-YLG.

53111-03G21-YLG

1
Out of stock

1

FENDER,FRONT | CAMO This part replaces 53111-03GC0-YKL.

53111-03GC2-YKL

1
Out of stock

1

FENDER, FRONT | FOR YLZ,4YX This part replaces 53111-03G20-YLZ.

53111-03G21-YLZ

1
Out of stock

1

FENDER,FRONT | E28 This part replaces 53111-03G20-YU1.

53111-03G21-YU1

1
Out of stock

2

MUDFLAP, INNER RH

53410-03G02

1
Out of stock

3

MUDFLAP, INNER LH

53421-03G00

1
Out of stock

4

CLIP

09409-08335

3
Out of stock

5

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

3
Out of stock

6

LID (RED)

53341-03G01-YT9

1
Out of stock

6

LID (GREEN)

53341-03G01-YLG

1
Out of stock

6

LID | CAMO

53341-03GC0-YKL

1
Out of stock

6

LID (BLACK) | FOR YLZ,4YX

53341-03G01-YLZ

1
Out of stock

6

LID (YELLOW) | E28

53341-03G01-YU1

1
Out of stock

7

GRILLE, FRONT (BLACK)

53118-03G00-291

1
Out of stock

8

SPACER

09180-08188

2
Out of stock

9

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

2
Out of stock

10

FENDER, CENTER (RED)

53119-03G10-YT9

1
Out of stock

10

FENDER, CENTER (GREEN)

53119-03G10-YLG

1
Out of stock

10

FENDER, CENTER | CAMOUFLAGE

53119-03GC0-YKL

1
Out of stock

10

FENDER, CENTER (BLACK) | FOR YLZ,4YX

53119-03G10-YLZ

1
Out of stock

10

FENDER, CENTER (YELLOW) | E28

53119-03G10-YU1

1
Out of stock

11

SCREW

09139-05076

1
Out of stock

12

CLIP

09409-07333

5
Out of stock

13

EMBLEM, RH | FOR YT9,YLG,YLZ,4YX,YU1

68151-03G50-DJF

1
Out of stock

13

EMBLEM, RH | FOR YKL

68151-03GA0-DJF

1
Out of stock

14

EMBLEM, LH | FOR YT9,YLG,YLZ,4YX,YU1

68152-03G50-DJF

1
Out of stock

14

EMBLEM, LH | FOR YKL

68152-03GA0-CPR

1
Out of stock

15

EMBLEM, FRONT BASE

68151-03G30

1
Out of stock

16

EMBLEM, "S"

68151-03G40

1
Out of stock

17

NUT This part replaces 09148-05006.

09148-05012

2
Out of stock

18

EMBLEM, LIMITED | E28 FOR 4YX

68151-03G20-CN5

1
Out of stock
