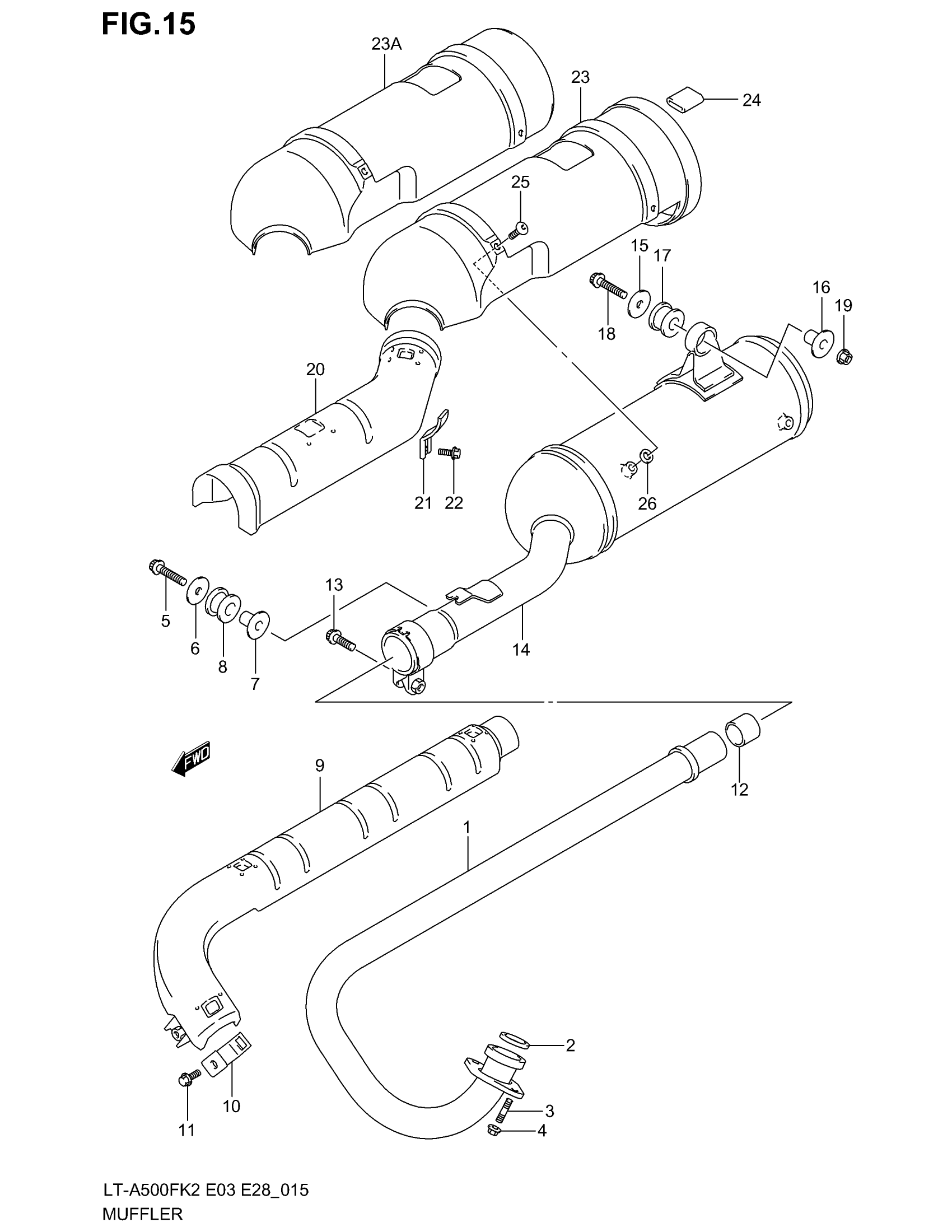

Suzuki LT-A500F (2003) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-03G00

Unavailable

2

.GASKET,EXHAUST

14181-18C00

$6.61

3

BOLT,STUD This part replaces 01421-08253.

01421-0825A

$2.01

4

NUT This part replaces 08319-31083.

08319-3108A

$2.31

5

BOLT, EXHAUST SUPPORT

09106-08133

$3.56

6

WASHER, EXHAUST SUPPORT

09160-08135

$2.10

7

SPACER, EXHAUST SUPPORT

09180-08151

$4.73

8

CUSHION, EXHAUST SUPPORT

09320-12043

$7.20

9

COVER, EXHAUST PIPE

14180-03G00

Unavailable

10

CLAMP

14185-03G00

Unavailable

11

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

12

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

$14.26

13

BOLT This part replaces 07120-08403.

07120-0840A

$3.08

14

NO DESCRIPTION AVAILABLE This part replaces 14310-03G00.

14300-03810

Unavailable

15

WASHER

09160-08503

$2.53

16

SPACER

09180-08152

$5.26

17

CUSHION

09320-12048

$4.62

18

BOLT, MUFFLER SUPPORT This part replaces 07120-08453.

07120-0845B

$3.58

19

NUT This part replaces 08319-31083.

08319-3108A

$2.31

20

COVER, MUFFLER FRONT

14790-03G00

Unavailable

21

CLAMP

14185-03G00

Unavailable

22

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

23

COVER, MUFFLER REAR | MODEL K2

14880-03G00

Unavailable

23A

COVER, MUFFLER REAR | MODEL K3

14880-03GF0

Unavailable

24

GROMMET

14795-06F00

Unavailable

25

SCREW

09139-06027

$2.00

26

GASKET

09168-06120

$2.80
