Description

Price

1

GASKET SET | OPT; Includes Item(s) 2 - 12 This part replaces 11401-09850.

11401-09851

$215.27

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-09F00

$34.29

3

.O RING,INSPECTION CAP | NOT SHOWN

11177-14D01

$4.21

4

GASKET, CYLINDER | NOT SHOWN

11241-09F00

$15.77

5

GASKET, CLUTCH COVER | NOT SHOWN

11482-09F50

$21.12

6

GASKET, MAGNETO COVER (NA) | NOT SHOWN

11483-03G00

$23.55

7

GASKET, V BELT COVER | NOT SHOWN

11484-09F50

$46.97

8

.GASKET,TENSIONER ADJUSTER | NOT SHOWN

12837-24A10

$2.97

9

.GASKET,EXHAUST | NOT SHOWN

14181-18C00

$6.61

10

O RING | NOT SHOWN

16528-24500

$10.01

11

O-RING (D:2.4,ID:39.7) | NOT SHOWN This part replaces 09280-40010.

09280-40020

$2.80

12

O RING (D:2.4,ID:43.2) | NOT SHOWN

09280-44005

$4.03

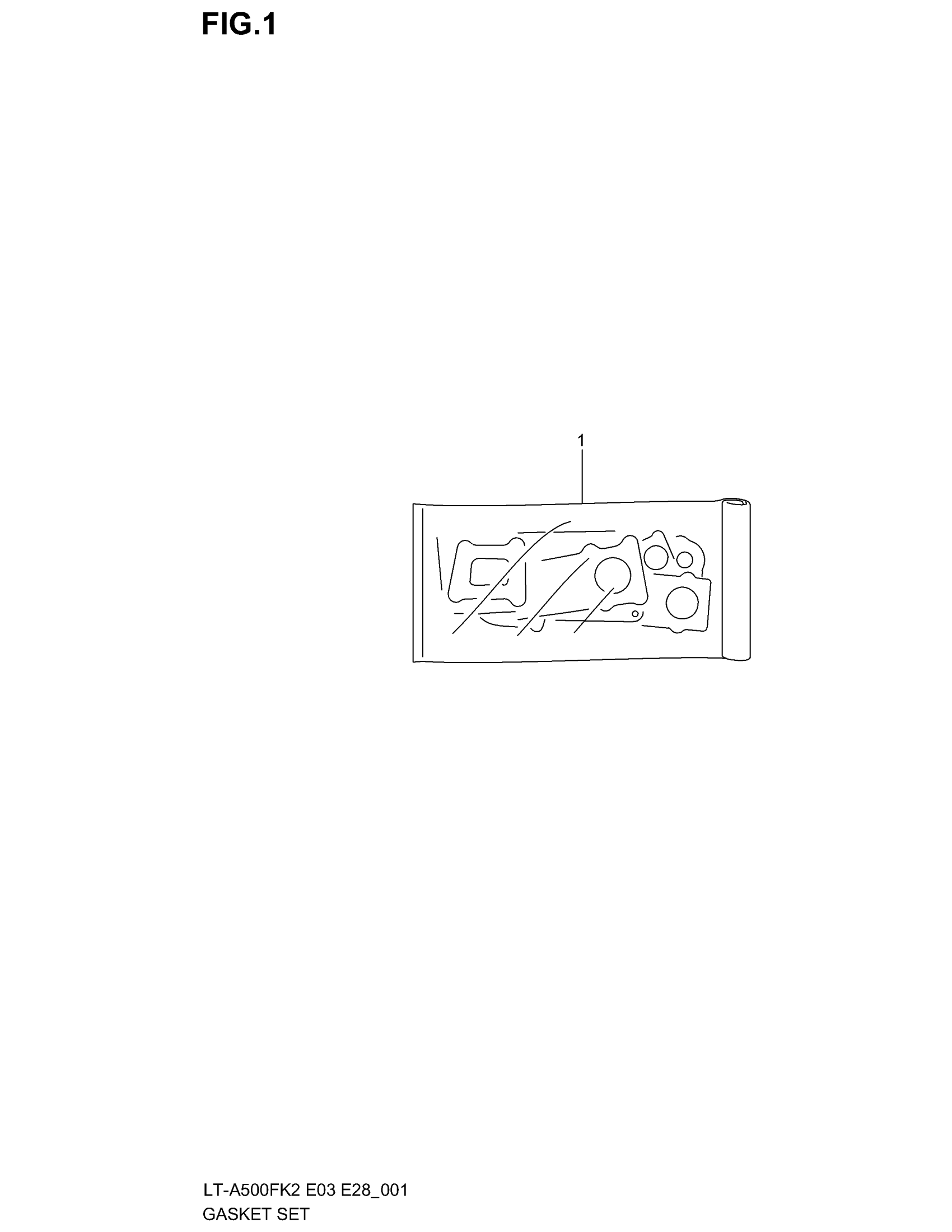

Suzuki LT-A500F (2003) GASKET SET Diagram
