2001 Suzuki LT-A500F Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2001 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

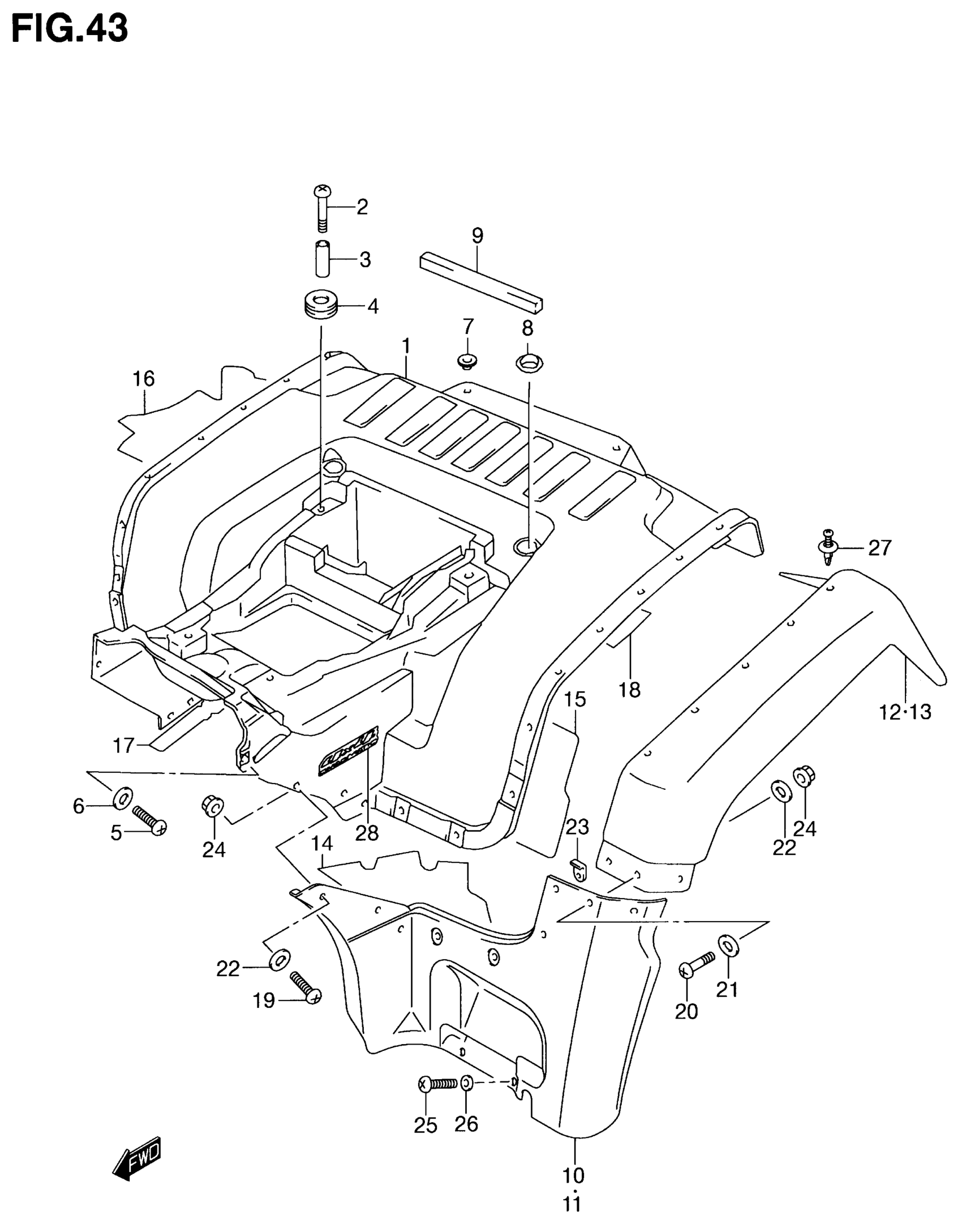

2001 Suzuki LT-A500F Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (GREEN)

63111-09F10-Y9N

1
Out of stock

1

FENDER, REAR (RED)

63111-09F10-Y9P

1
Out of stock

2

BOLT, CENTER | MODEL Y

09118-06109

2
Out of stock

2

BOLT, CENTER | MODEL K1

09112-06009

2
Out of stock

3

SPACER

09180-06120

2
Out of stock

4

CUSHION

09320-11008

2
Out of stock

5

BOLT This part replaces 01570-06203.

01570-0620A

2
Out of stock

6

WASHER

09169-06021

2
Out of stock

7

WASHER, REAR

09169-08045

2
Out of stock

8

GROMMET This part replaces 09308-25003.

09308-25005

2
Out of stock

9

CUSHION

47161-29B00

2
Out of stock

10

MUDGUARD, FRONT RH (GRAY)

63331-09F10-Y0J

1
Out of stock

11

MUD GUARD,REAR This part replaces 63341-09F10-Y0J.

63341-09F11-Y0J

1
Out of stock

12

MUDGUARD, REAR RH (GRAY)

63351-09F00-Y0J

1
Out of stock

13

MUDGUARD, REAR LH (GRAY)

63361-09F00-Y0J

1
Out of stock

14

SHIELD, MUDGUARD FRONT LH

63362-09F10

1
Out of stock

15

SHIELD, REAR FENDER

63263-09F10

1
Out of stock

16

SHIELD, REAR FENDER NO.3

63265-09F10

1
Out of stock

17

SHIELD, REAR FENDER NO.4

63266-09F10

1
Out of stock

18

SHIELD, REAR FENDER NO.5

63267-09F10

1
Out of stock

19

SCREW

09136-05038

14
Out of stock

20

SCREW, FRONT & REAR

09139-05037

2

$2.23

In stock

21

WASHER, FRONT & REAR

09160-08123

2
Out of stock

22

WASHER

09160-05046

14
Out of stock

23

PLATE

63332-09F00

2
Out of stock

24

NUT

09159-05043

16
Out of stock

25

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

26

WASHER, FRONT & LOWER

09169-06057

4
Out of stock

27

CLIP

09409-07333

17
Out of stock

28

EMBLEM, REAR FENDER | MODEL Y FOR Y9N

68171-09FA0-BJ2

2
Out of stock

28

EMBLEM, REAR FENDER | MODEL Y FOR Y9P

68171-09FA0-BJ3

2
Out of stock

28

EMBLEM, REAR FENDER | MODEL K1 FOR Y9N

68171-09FA0-EN5

2
Out of stock

28

EMBLEM, REAR FENDER | MODEL K1 FOR Y9P

68171-09FA0-EN6

2
Out of stock
