2001 Suzuki LT-A500F Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 2001 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

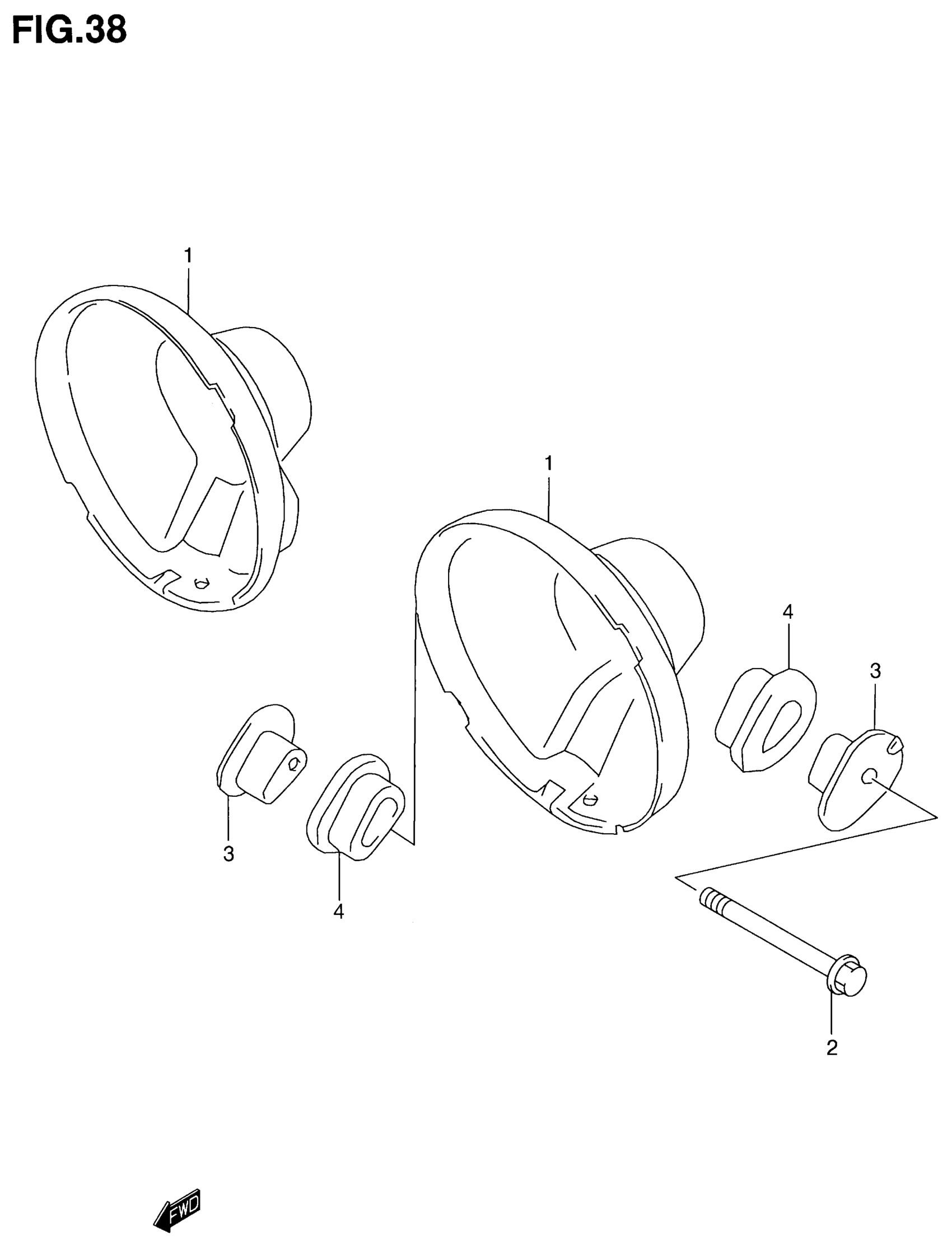

2001 Suzuki LT-A500F Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP

51810-09F00

2
Out of stock

2

BOLT This part replaces 01550-06503.

01550-0650A

2
Out of stock

3

SPACER

51821-09F10

4
Out of stock

4

CUSHION

51827-09F00

4
Out of stock
