2001 Suzuki LT-A500F Front Brake Hose Diagram

← All diagrams

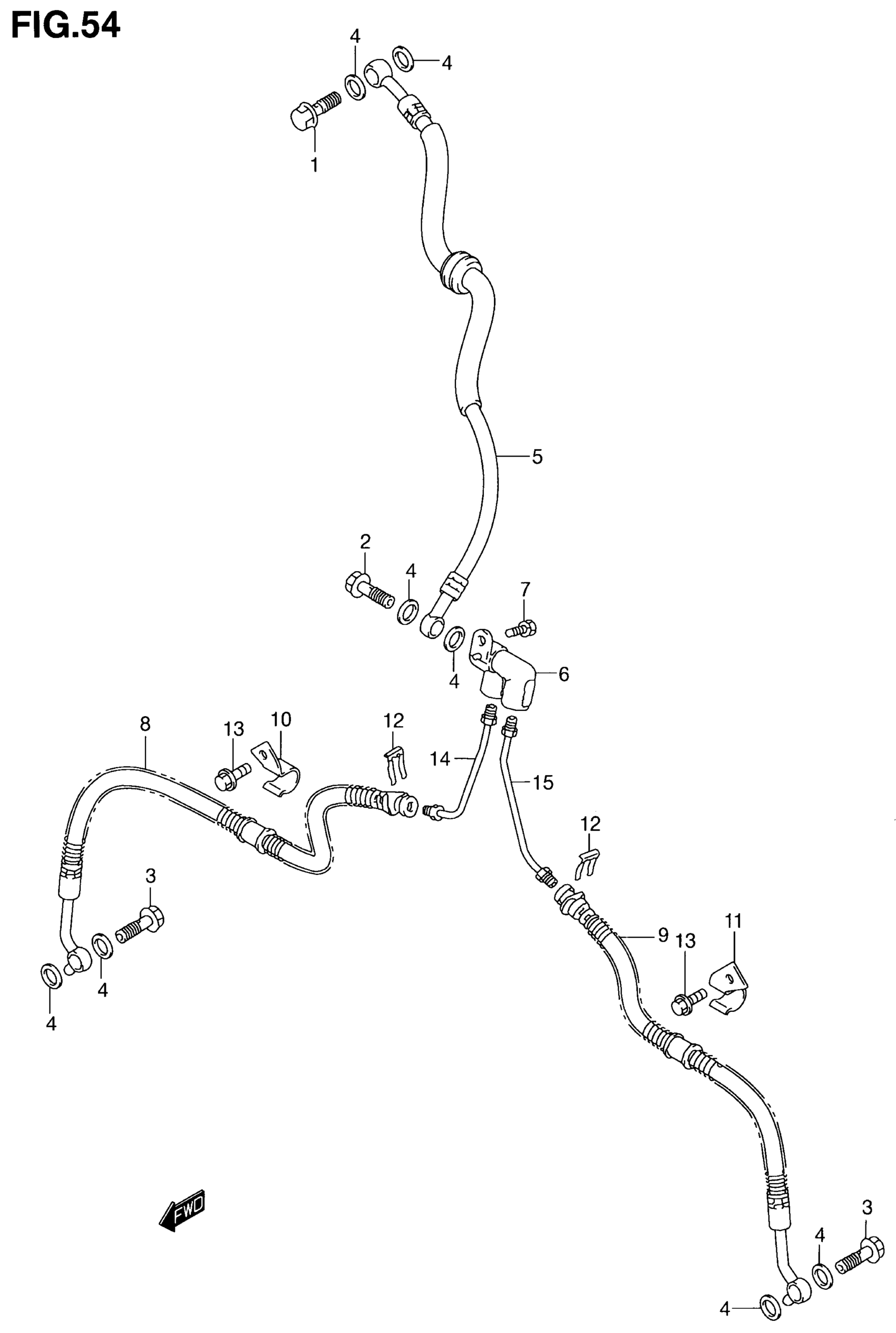

Find the part on the Front Brake Hose diagram for your 2001 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-A500F Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$6.33

In stock

2

1

$6.33

In stock

3

UNION This part replaces 09360-10042.

09360-10062

2
Out of stock

4

WASHER (10X15X1.5)

09161-10009

8
Out of stock

5

HOSE, FRONT BRAKE NO.1

59480-09F10

1
Out of stock

6

1

$60.18

In stock

7

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

8

HOSE, FRONT BRAKE NO.2 RH

59240-09F00

1
Out of stock

9

HOSE, FRONT BRAKE NO.2 LH

59440-09F00

1
Out of stock

10

CLAMP, HOSE NO.2 RH

59261-09F00

1
Out of stock

11

CLAMP, HOSE NO.2 LH

59271-09F00

1
Out of stock

12

2

$2.83

In stock

13

BOLT This part replaces 01550-06103.

01550-0610A

2
Out of stock

14

PIPE, FRONT BRAKE RH

59250-09F00

1
Out of stock

15

PIPE, FRONT BRAKE LH

59450-09F00

1
Out of stock
