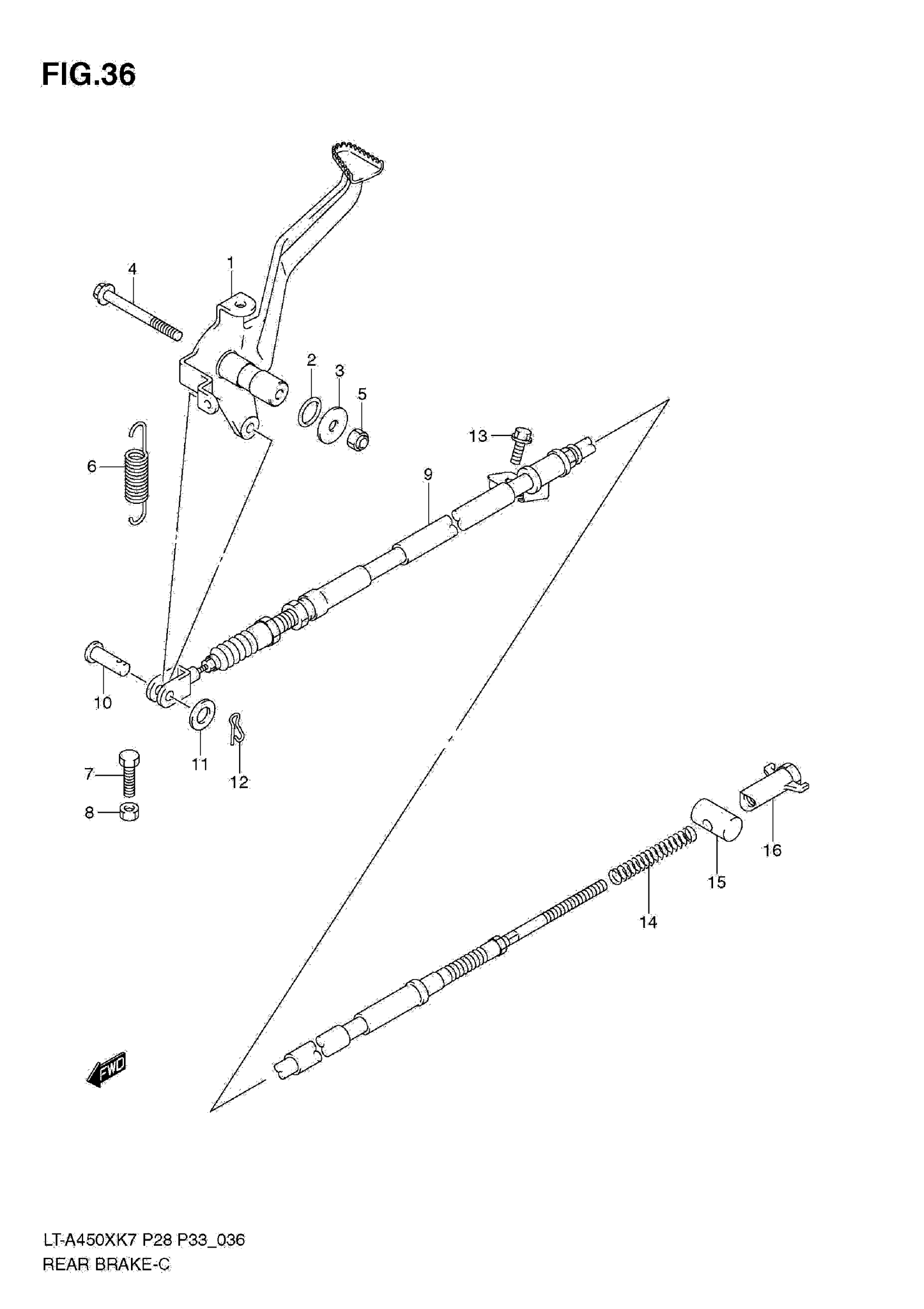

Suzuki LT-A450XK7 (2010) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-31G00

$218.80

2

O RING

09280-14011

$4.30

3

WASHER

09160-06138

$1.92

4

BOLT

09103-06195

$4.35

5

NUT

08319-2106A

$1.89

6

SPRING, RETURN

09443-12019

$4.07

7

BOLT, ADJUSTER

01500-0620A

$1.77

8

NUT

08310-0006A

$1.83

9

CABLE, REAR BRAKE

58510-31G00

$79.43

10

PIN, FRONT

09200-05001

$1.52

11

WASHER

08322-0106B

$2.24

12

COTTER PIN

09385-06012

$1.89

13

BOLT, CABLE

01547-0616A

$2.01

14

SPRING

09440-08042

$2.80

15

PIN

09209-13006

$4.73

16

NUT

09150-06015

$3.26
