2009 Suzuki LT-A450X Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2009 Suzuki LT-A450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

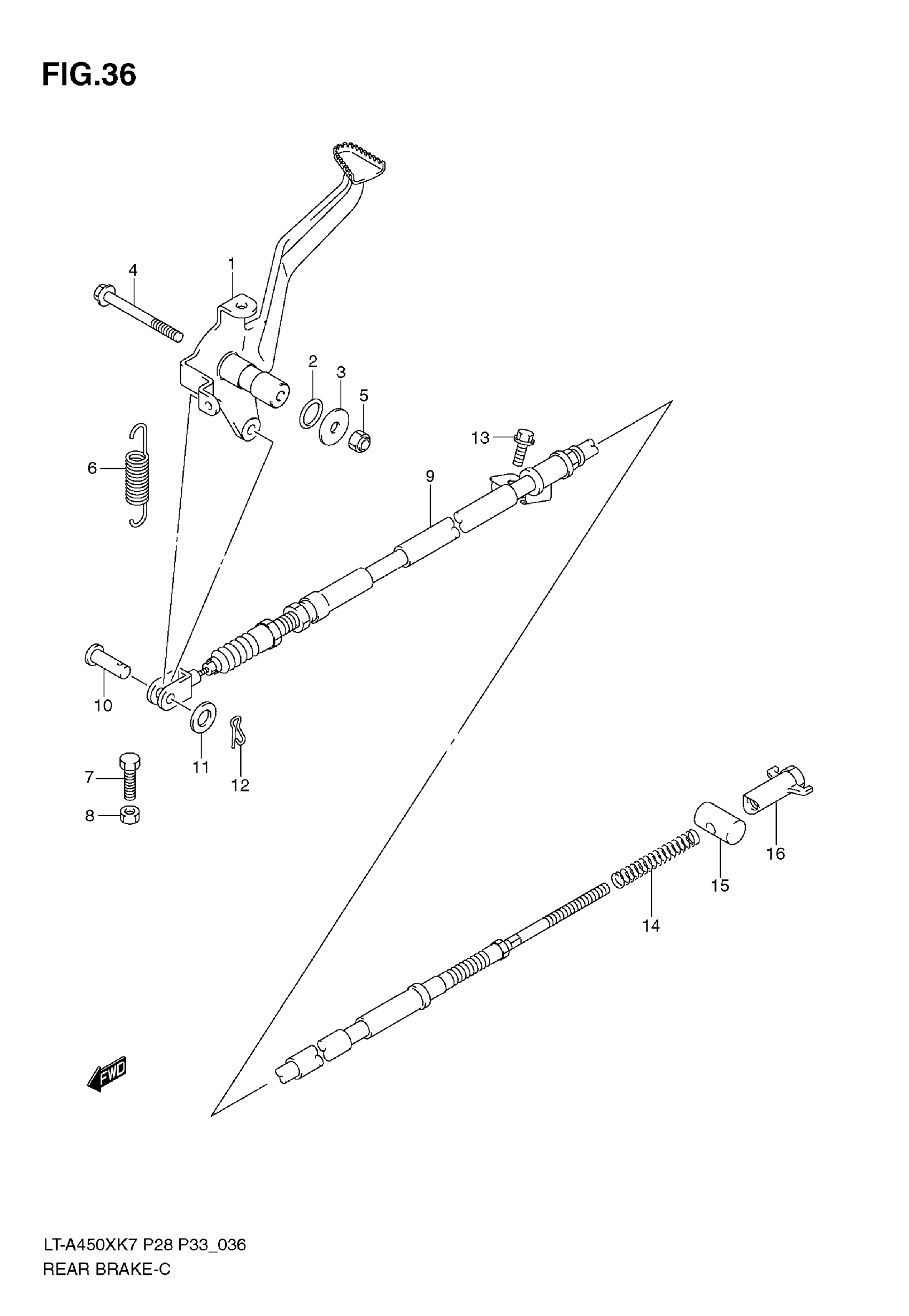

2009 Suzuki LT-A450X Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-31G00

1
Out of stock

2

O RING

09280-14011

2
Out of stock

3

WASHER

09160-06138

1
Out of stock

4

BOLT

09103-06195

1
Out of stock

5

NUT

08319-2106B

1
Out of stock

6

SPRING, RETURN

09443-12019

1
Out of stock

7

BOLT, ADJUSTER

01500-0620B

1

$2.35

In stock

8

NUT

08310-0006B

1
Out of stock

9

CABLE, REAR BRAKE

58510-31G00

1

$86.08

In stock

10

PIN, FRONT

09200-05001

1
Out of stock

11

WASHER

08322-0106B

1
Out of stock

12

COTTER PIN

09385-06012

1
Out of stock

13

BOLT, CABLE

01550-0616A

1
Out of stock

14

SPRING

09440-08042

1
Out of stock

15

PIN

09209-13006

1
Out of stock

16

NUT

09150-06015

1
Out of stock
