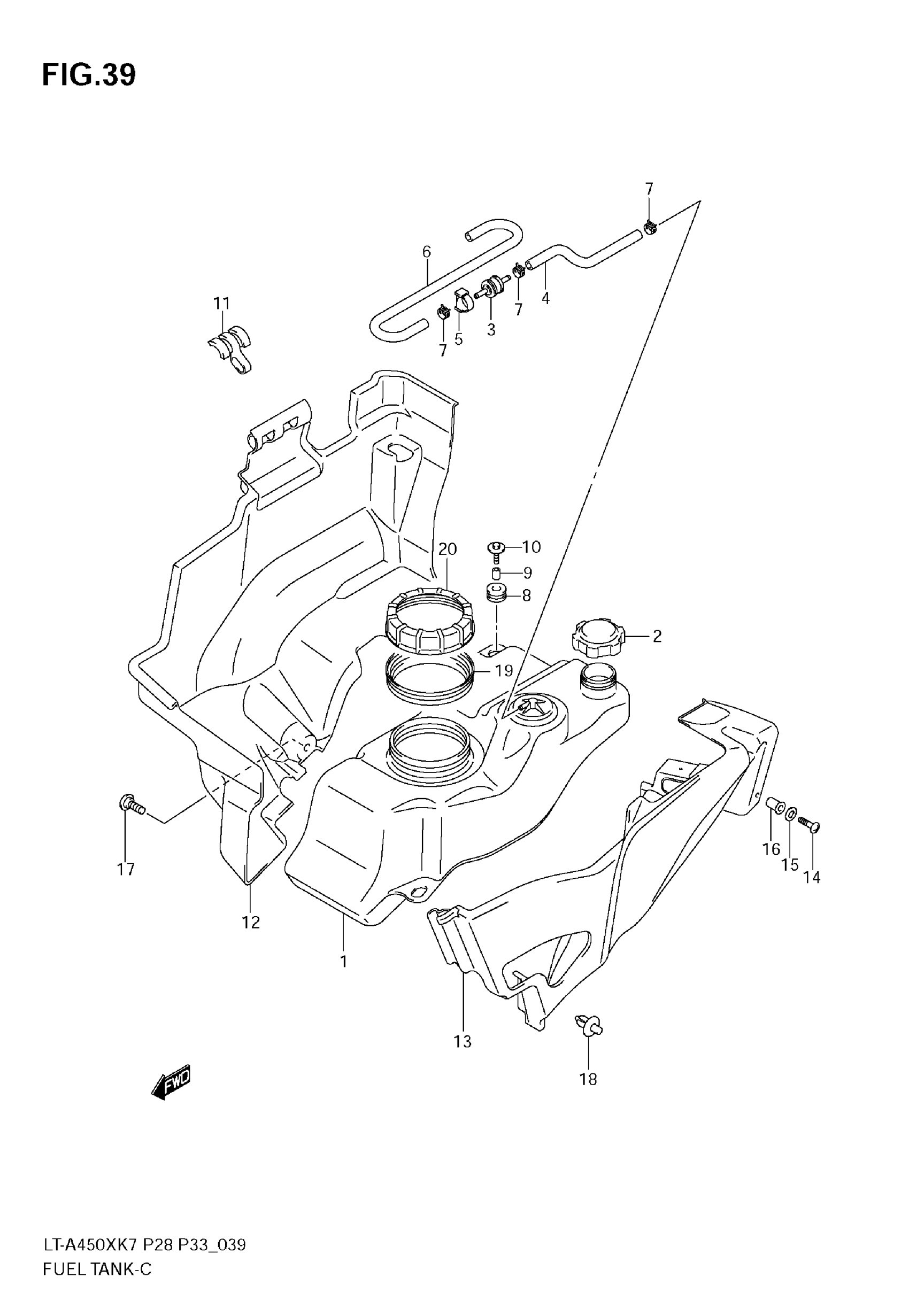

Suzuki LT-A450X (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL | MODEL K7

44100-31G00

Unavailable

1

TANK ASSY, FUEL | MODEL K8/K9 This part replaces 44100-31G10.

44100-31G21

$260.24

2

CAP ASSY, FUEL TANK

44200-31G00

$47.92

3

VALVE,2 WAY CHECK

85451-75100

$44.04

4

HOSE,CHECK VALV This part replaces 44425-31G00.

44425-31G01

$13.62

5

CUSHION, CHECK VALVE This part replaces 44881-31G00.

44881-31G01

$4.95

6

HOSE,FUEL TANK | MODEL K7 This part replaces 44434-31G00.

44434-31G01

Unavailable

6

HOSE, TANK BREATHER | MODEL K8/K9 This part replaces 44434-31G10.

44434-31G11

$50.95

7

CLIP

09401-08409

$1.85

7

CLIP (ID:9.4,H:8) | MODEL K8/K9

09401-09403

$2.01

8

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.44

9

SPACER

09180-06293

$2.58

10

BOLT

09116-06050

$2.28

11

CUSHION, SIDE

44541-31G00

Unavailable

12

COVER, LOWER | MODEL K7

44390-31G10

$77.45

12

COVER,F/TANK LO | MODEL K8/K9 This part replaces 44390-31G20.

44390-31G60

$122.78

13

COVER, OUTER

44391-31G00

$114.65

14

SCREW

02142-0520B

$1.77

15

WASHER

09160-05046

$1.90

16

NUT

09159-05019

$6.44

17

SCREW

09139-06137

$2.71

18

CLIP

09409-07333

$2.29

19

PACKING,FUEL PU This part replaces 44596-10G00.

44596-10G01

$20.42

20

RETAINER, FUEL PUMP

44597-10G00

$40.32
