2014 Suzuki LT-A400L4 Fuel Tank Diagram

← All diagrams

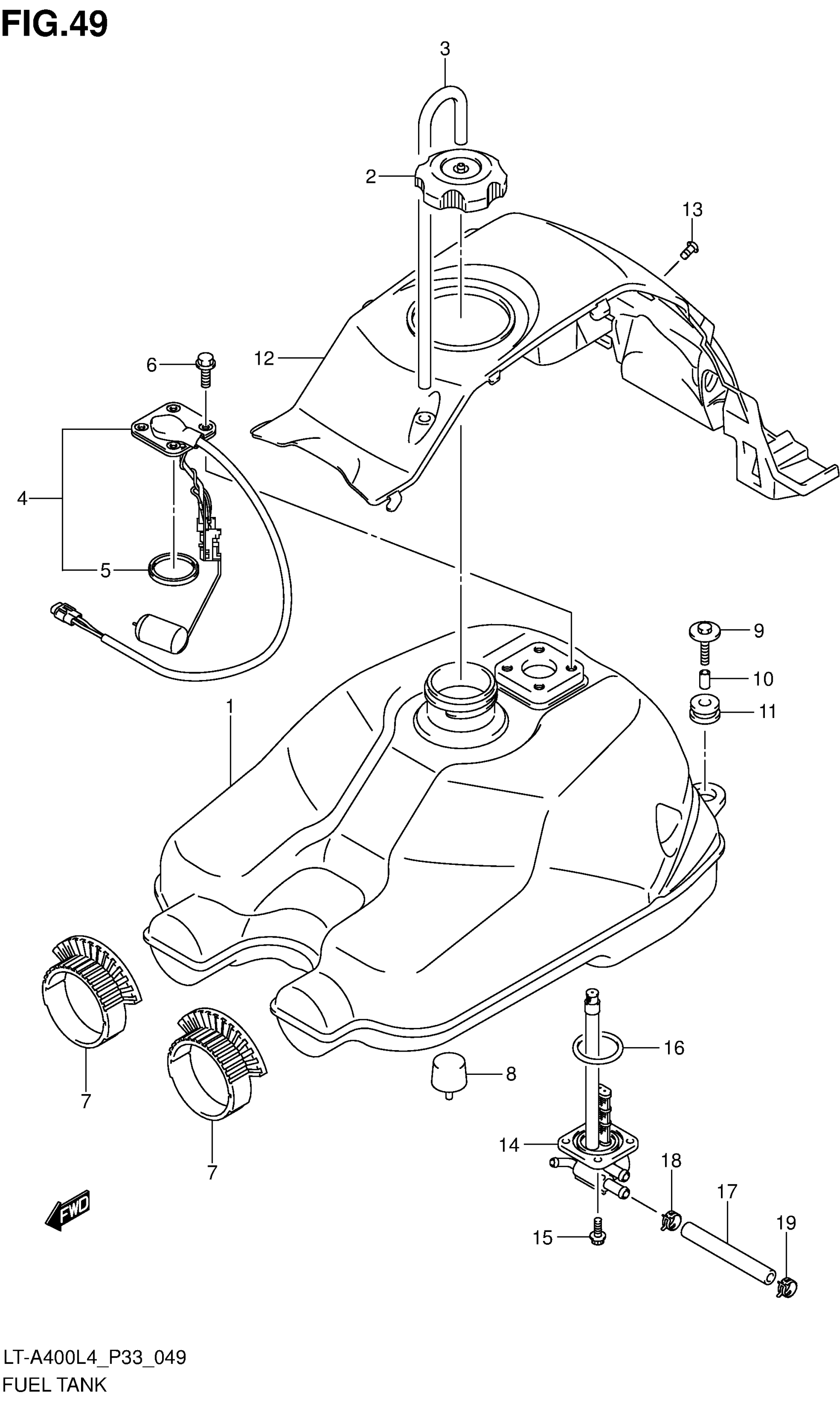

Find the part on the Fuel Tank diagram for your 2014 Suzuki LT-A400L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-A400L4 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL This part replaces 44100-27HA0.

44100-27HB2

1
Out of stock

4

1

$133.13

In stock

6

BOLT

01550-0612A

4
Out of stock

9

BOLT (6X30)

09116-06050

2
Out of stock

10

SPACER (6.5X10X14)

09180-06293

2
Out of stock

11

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

2
Out of stock

13

BOLT (5X13)

09139-05085

1
Out of stock

14

1

$202.31

In stock

15

BOLT

07120-0612A

4
Out of stock

16

O RING, FUEL TANK OUTLET

44348-33H00

1
Out of stock

17

1

$46.22

In stock

18

CLIP

09401-12405

1

$2.42

In stock

19

CLIP

09401-12410

1
Out of stock
