2014 Suzuki LT-A400L4 Crankcase Cover Diagram

← All diagrams

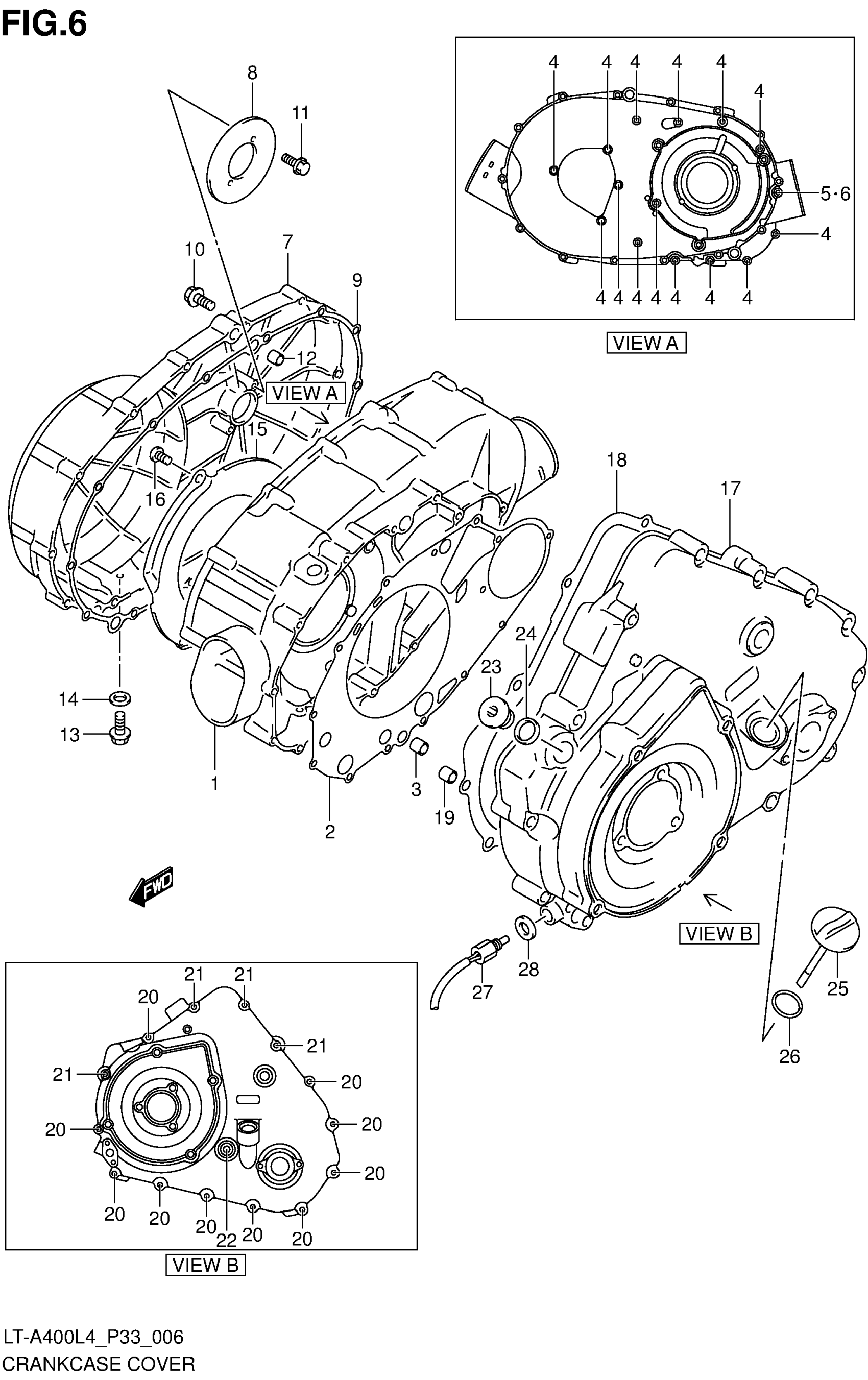

Find the part on the Crankcase Cover diagram for your 2014 Suzuki LT-A400L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-A400L4 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CLUTCH

11341-38F00

1
Out of stock

2

GASKET, CLUTCH COVER (NA)

11482-38F00

1
Out of stock

3

PIN

04211-13189

2
Out of stock

4

BOLT

01547-0640A

14
Out of stock

5

BOLT

01547-0680A

1
Out of stock

6

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

7

COVER,V-BELT

11371-27H00

1
Out of stock

8

PLATE,V-BELT COVER

11372-27H00

1
Out of stock

9

GASKET, V-BELT COVER (NA)

11484-38F00

1
Out of stock

10

BOLT

01547-0635A

14
Out of stock

11

BOLT

01547-0616A

2
Out of stock

12

PIN

04211-13189

2
Out of stock

13

BOLT (8X12) | DRAIN

01550-0812A

1
Out of stock

14

GASKET (8.2X16X1)

09168-08029

1
Out of stock

15

PLATE,AIR INTAKE

11343-38F00

1
Out of stock

16

SCREW

02112-0612A

3
Out of stock

17

COVER, MAGNETO

11351-27H21

—
Out of stock

18

GASKET, MAGNETO COVER (NA)

11483-27H00

1
Out of stock

19

PIN

04211-13189

2
Out of stock

20

BOLT

01547-0640A

12
Out of stock

21

BOLT

01547-0650A

2
Out of stock

22

BOLT (8X140)

09103-08040

1
Out of stock

23

PLUG (16X8)

09248-16012

1
Out of stock

24

GASKET (16X22X2)

09168-16002

1
Out of stock

25

GAUGE,OIL LEVEL

11971-38F00

1
Out of stock

26

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

27

SENSOR,ENGINE TEMP This part replaces 13640-32G00.

13640-32G01

1
Out of stock

28

GASKET (8.2X14X1)

09168-08016

1
Out of stock
