2021 Suzuki LT-A400FZM1 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2021 Suzuki LT-A400FZM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

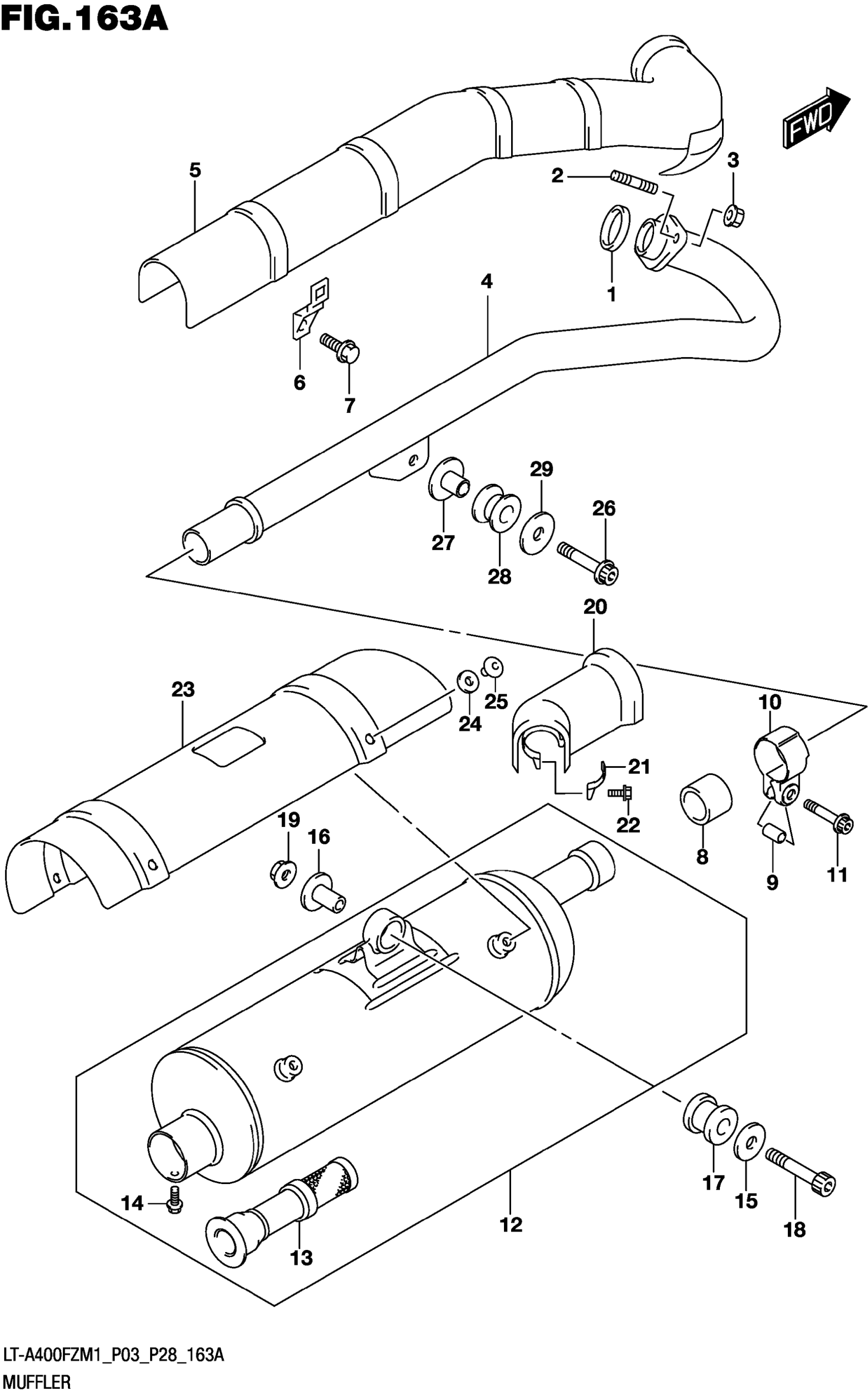

2021 Suzuki LT-A400FZM1 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.GASKET,EXHAUST

14181-18C00

1
Out of stock

2

BOLT,STUD

01421-0825A

2
Out of stock

3

NUT

08319-3108A

2
Out of stock

4

PIPE,EXH

14150-27H00

1
Out of stock

5

COVER,EXH PIPE FR

14180-38F50

1
Out of stock

6

CLAMP,EXH PIPE COVER

14185-38F10

3
Out of stock

7

BOLT

01550-0612A

3
Out of stock

8

CONNECTOR,MUFFLER

14771-38F00

1
Out of stock

9

SPACER,CLAMP

14458-45G01

1
Out of stock

10

CLAMP,MUF CONNECTOR

14459-38F10

1
Out of stock

11

BOLT

07120-0835A

1
Out of stock

12

BODY,MUFFLER This part replaces 14310-38F40.

14310-38F41

1
Out of stock

13

.ARRESTER

14850-38F30

1
Out of stock

14

.BOLT

07120-0508B

1
Out of stock

15

WASHER (8.5X30X2.3)

09160-08503

2
Out of stock

16

SPACER (8.6X12X24.2)

09180-08152

2
Out of stock

17

CUSHION

09320-12082

2
Out of stock

18

BOLT

07130-0845A

2
Out of stock

19

NUT

08319-3108A

2
Out of stock

20

COVER,MUF FR

14790-27H00

1
Out of stock

21

CLAMP,EXH PIPE COVER

14185-38F10

1
Out of stock

22

BOLT

01550-0612A

2
Out of stock

23

COVER,MUF RR

14880-38F10

1
Out of stock

24

GASKET (5.8X13X1.4)

09168-06120

4
Out of stock

25

SCREW (6X10)

09139-06076

4
Out of stock

26

BOLT (8X35)

09106-08133

1
Out of stock

27

SPACER (8.6X12X17.5)

09180-08151

1
Out of stock

28

CUSHION, EXHAUST SUPPORT This part replaces 09320-12035.

09320-12043

1
Out of stock

29

WASHER (8.5X28X1.5)

09160-08135

1
Out of stock
