2021 Suzuki LT-A400FZM1 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2021 Suzuki LT-A400FZM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

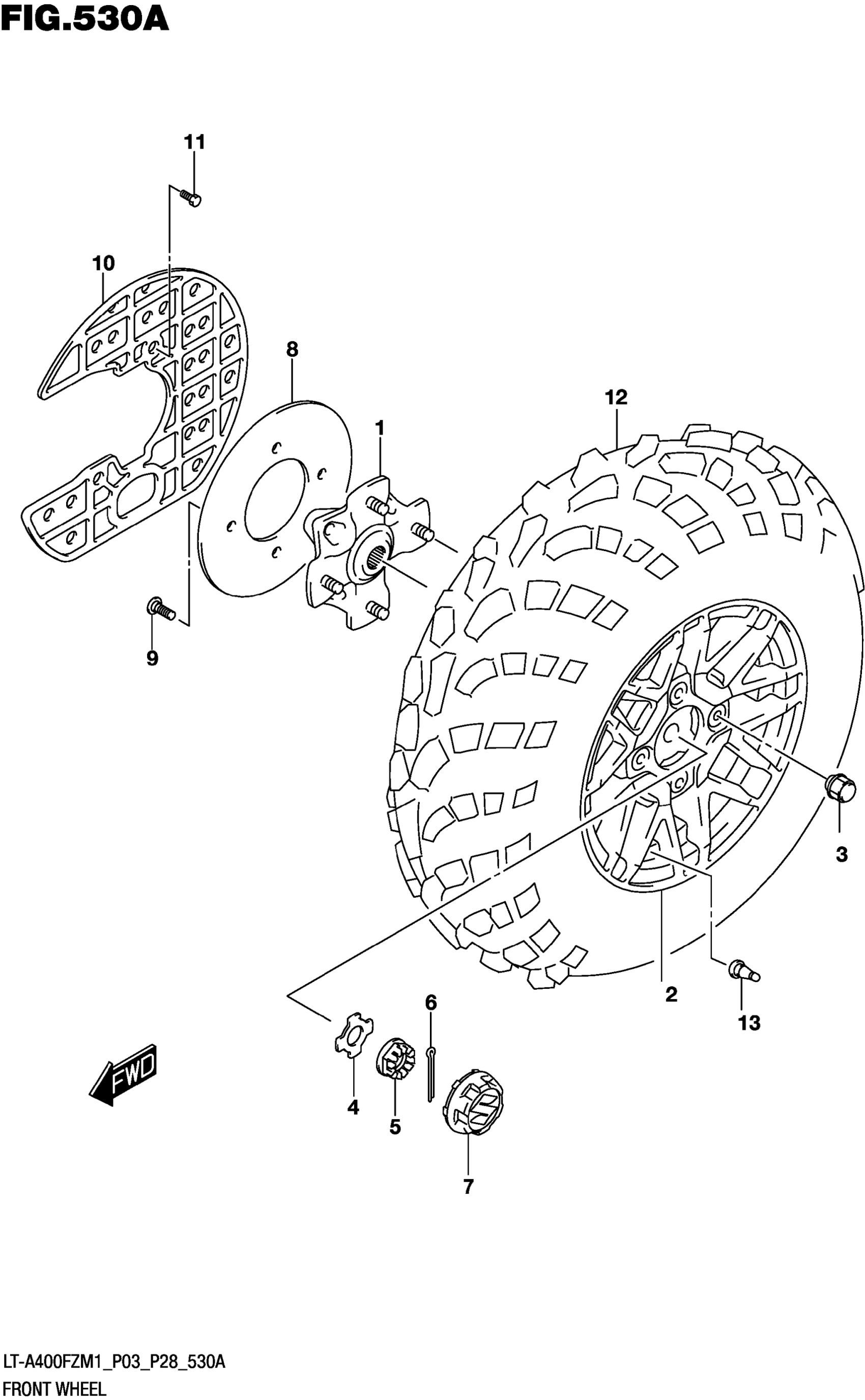

2021 Suzuki LT-A400FZM1 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,FRONT WHEEL This part replaces 54110-27H00.

54110-27H10

2
Out of stock

2-1

WHEEL,FRONT (BLACK) | BODY COLOR:YT9,YLG,30H,QMA

55311-27H00-291

—
Out of stock

2-2

WHEEL,FRONT (BLACK) | BODY COLOR:QTF,QTM

55311-27H20-019

2
Out of stock

3

NUT (H:23)

09159-10045

8
Out of stock

4

WASHER

09164-18004

2
Out of stock

5

NUT

09141-18010

2
Out of stock

6

PIN

04111-4035A

2
Out of stock

7-1

CAP,WHEEL CENTER | BODY COLOR:YT9,YLG,30H,QMA

54725-34K00

2
Out of stock

7-2

CAP,WHEEL CENTER | BODY COLOR:QTF,QTM

54725-34K20

2
Out of stock

8

DISC,FRONT BRAKE

59211-38F20

2
Out of stock

9

BOLT (8X21)

09106-08160

8
Out of stock

10

COVER,FRONT DISC

59231-27H00

2
Out of stock

11

SCREW (6X16)

09139-06158

4
Out of stock

12

TIRE,FRONT (AT25X8-12) | AT489 CARLISLE

55110-31G30

2
Out of stock

13

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

2
Out of stock
