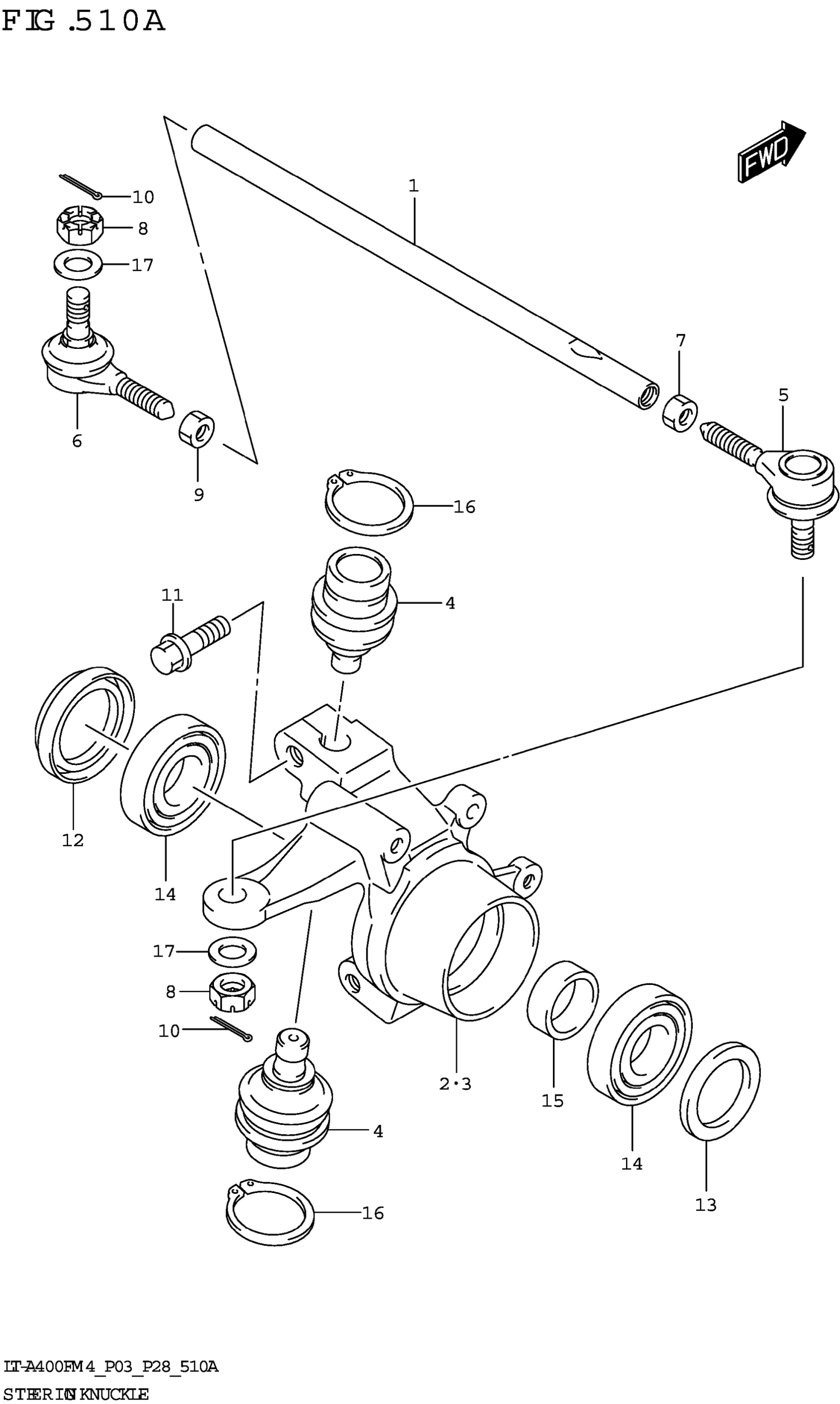

Find the part on the Steering Knuckle diagram for your 2024 Suzuki LT-A400FM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki LT-A400FM4 Steering Knuckle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE-ROD,STEERING

51281-27H00

2
Out of stock

2-1

KNUCKLE,STEERING,R This part replaces 51231-27H00.

51231-27H10

1
Out of stock

2-2

KNUCKLE,STEERING,R | FROM 202306

51231-27H10

1
Out of stock

3-1

KNUCKLE,STEERING,L This part replaces 51241-27H00.

51241-27H10

1
Out of stock

3-2

KNUCKLE,STEERING,L | FROM 202306

51241-27H10

1
Out of stock

4

END,KNUCKLE STEERING

51210-38F00

4
Out of stock

5

END,ROD RH

51260-21G00

2
Out of stock

6

END,ROD LH

51270-21G00

2
Out of stock

7

NUT, TIE-ROD RH

51283-21G00

2
Out of stock

8

NUT

08314-4010B

4
Out of stock

9

NUT (LH THREAD)

09140-10027

2
Out of stock

10

PIN

04111-2020A

4
Out of stock

11

BOLT,KNUCKLE (10X30)

51233-09F00

4
Out of stock

12

OIL SEAL (38X55X8)

09283-38012

2
Out of stock

13

OIL SEAL (38X55X9)

09283-38022

2
Out of stock

14

BEARING

08133-60067

—
Out of stock

15

SPACER,HUB BEARING

54731-03G00

2
Out of stock

16

CIRCLIP

08331-31309

4
Out of stock

17

WASHER (10.5X19X2.0)

09160-10082

4
Out of stock
