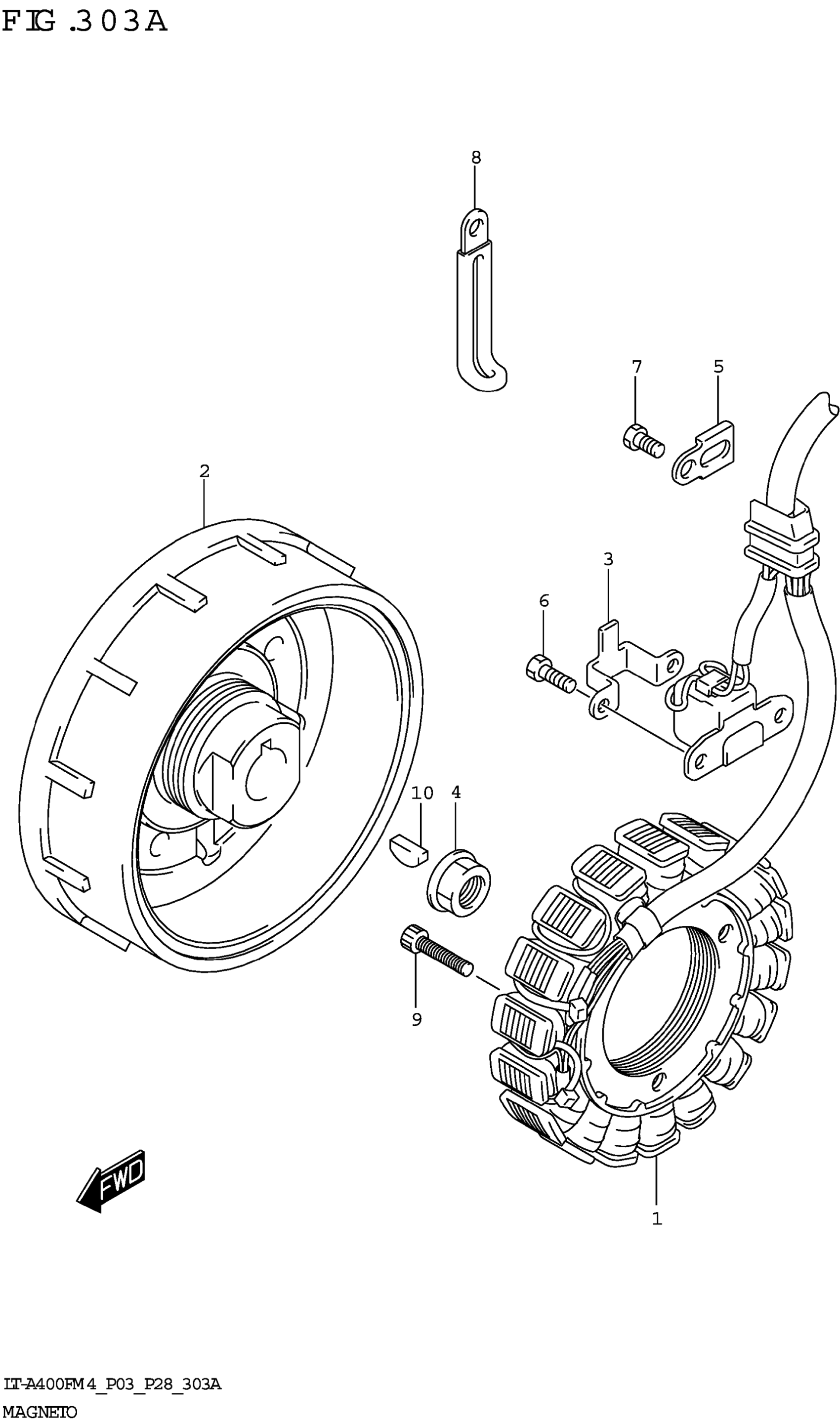

Find the part on the Magneto diagram for your 2024 Suzuki LT-A400FM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki LT-A400FM4 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

32101-27H10

1
Out of stock

2

ROTOR ASSY

32102-27H10

1
Out of stock

3

CLAMP,MAGNETO LEAD

31497-45000

1
Out of stock

4

NUT,MAGNETO ROTOR

31792-11H00

1
Out of stock

5

CLAMP,MAGNETO LEAD

32371-32E00

1
Out of stock

6

BOLT (5X10)

09100-05019

2
Out of stock

7

BOLT (5X10)

09100-05019

1
Out of stock

8

CLAMP (L:45)

09404-06429

1
Out of stock

9

BOLT

07130-0630A

3
Out of stock

10

KEY

09420-05007

1
Out of stock
