2024 Suzuki LT-A400FM4 Front Caliper Diagram

← All diagrams

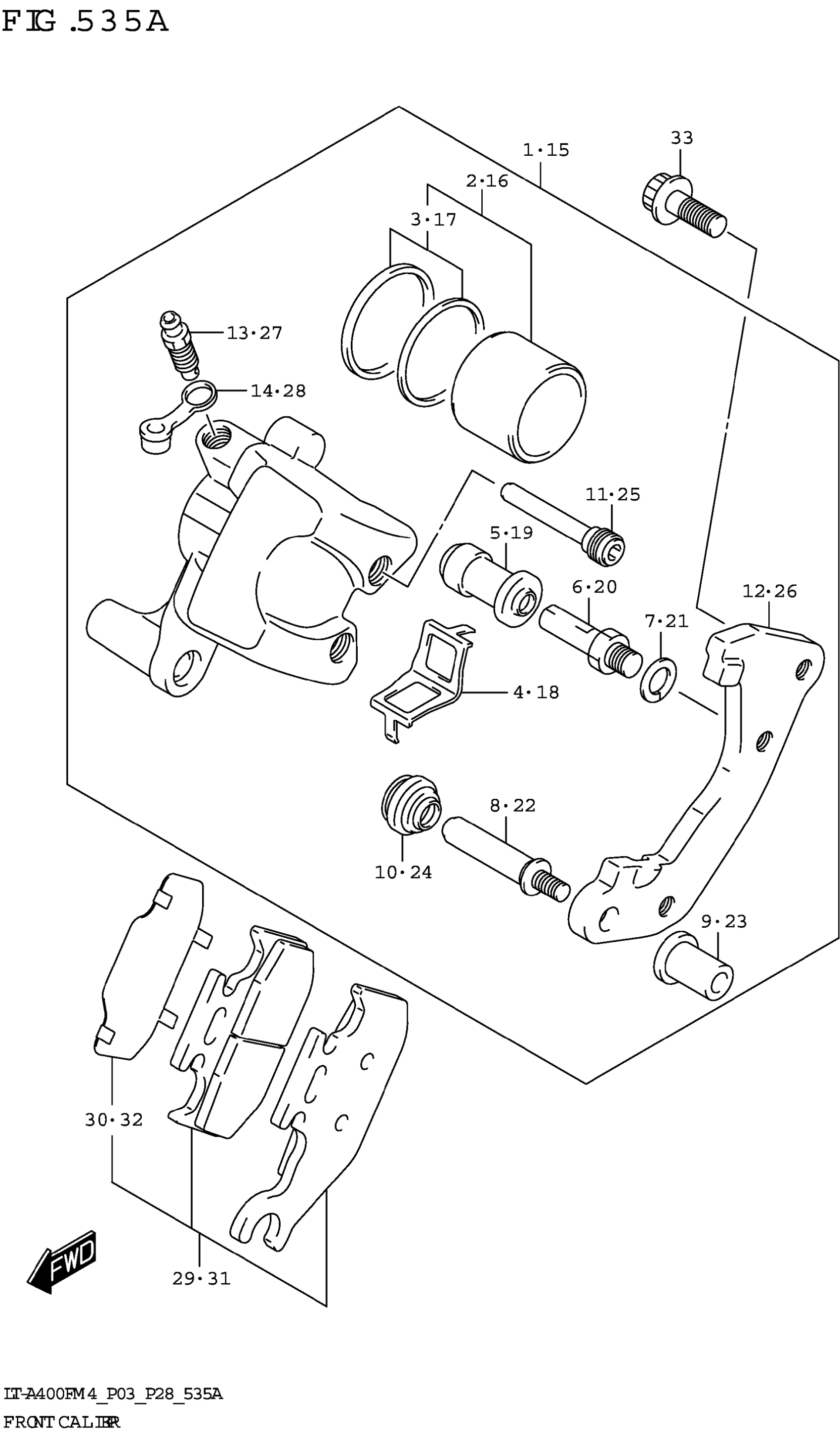

Find the part on the Front Caliper diagram for your 2024 Suzuki LT-A400FM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki LT-A400FM4 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FRONT,R

59100-31G00-999

1
Out of stock

2

.PISTON SET

59300-13810

1
Out of stock

3

..SEAL SET,PISTON

69100-13820

1
Out of stock

4

.SPRING

59315-27C00

1
Out of stock

5

.BOOT

59386-13A00

1
Out of stock

6

.BOLT

59382-13A00

1
Out of stock

7

.WASHER

59314-13A00

1
Out of stock

8

.PIN

59387-00B20

1
Out of stock

9

.NUT

59388-00B20

1
Out of stock

10

.BOOT

59303-14500

1
Out of stock

11

.PIN,HANGER

59145-39D00

2
Out of stock

12

.BRACKET,R

59151-31G00

1
Out of stock

13

.BLEEDER

59121-01A00

1
Out of stock

14

.CAP,BLEEDER

59122-01A00

1
Out of stock

15

CALIPER ASSY,FRONT,L

59300-31G01-999

1
Out of stock

16

.PISTON SET

59300-13810

1
Out of stock

17

..SEAL SET,PISTON

69100-13820

1
Out of stock

18

.SPRING

59315-27C00

1
Out of stock

19

.BOOT

59386-13A00

1
Out of stock

20

.BOLT

59382-13A00

1
Out of stock

21

.WASHER

59314-13A00

1
Out of stock

22

.PIN

59387-00B20

1
Out of stock

23

.NUT

59388-00B20

1
Out of stock

24

.BOOT

59303-14500

1
Out of stock

25

.PIN,HANGER

59145-39D00

2
Out of stock

26

.BRACKET,L

59351-31G00

1
Out of stock

27

.BLEEDER

59121-01A00

1
Out of stock

28

.CAP,BLEEDER

59122-01A00

1
Out of stock

29

PAD & SHIM SET,R

59100-31870

1
Out of stock

30

.SHIM

69132-28C00

1
Out of stock

31

PAD & SHIM SET,L

59100-31880

1
Out of stock

32

.SHIM

69132-28C00

1
Out of stock

33

BOLT,8X16 (8X16)

09106-08174

4
Out of stock
