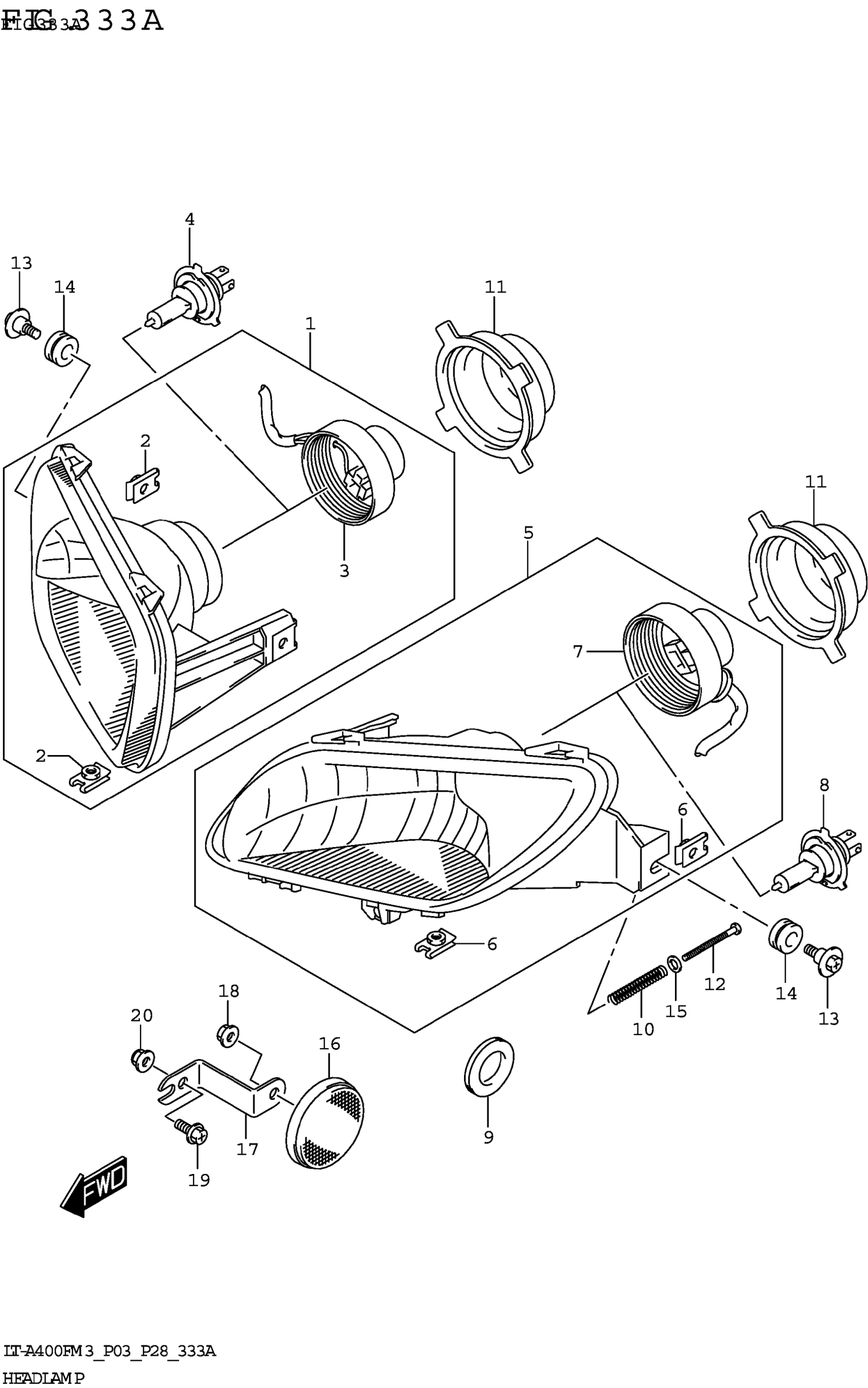

Suzuki LT-A400FM3 (2023) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY RH

35100-31G92-999

$92.66

2

.NUT (M6)

35157-31G90

$5.00

3

.CORD ASSY RH

35171-31GM1

$33.97

4

BULB (12V35/35W,HS1(01750A))

09471-12101

$61.01

5

HEADLAMP ASSY LH

35300-31G92-999

$92.66

6

.NUT (M6)

35157-31G90

$5.00

7

.CORD ASSY LH

35171-31GH1

$43.43

8

BULB (12V35/35W,HS1(01750A))

09471-12101

$61.01

9

GROMMET

09308-07011

$2.64

10

SPRING

35154-31300

$3.49

11

COVER,HEADLAMP HOUSING

35174-31G00

$9.99

12

SCREW (4X50)

09125-04031

$2.29

13

SCREW (6X22.5)

09139-06118

$3.05

14

CUSHION (10X20X10)

09320-10078

$3.81

15

WASHER

08322-0104A

$1.92

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

17

BRACKET,FRONT SIDE RR

35956-27H00

$10.28

18

NUT

08316-1005A

$2.19

19

SCREW

02162-0516B

$2.77

20

NUT

08319-3105B

$3.25
