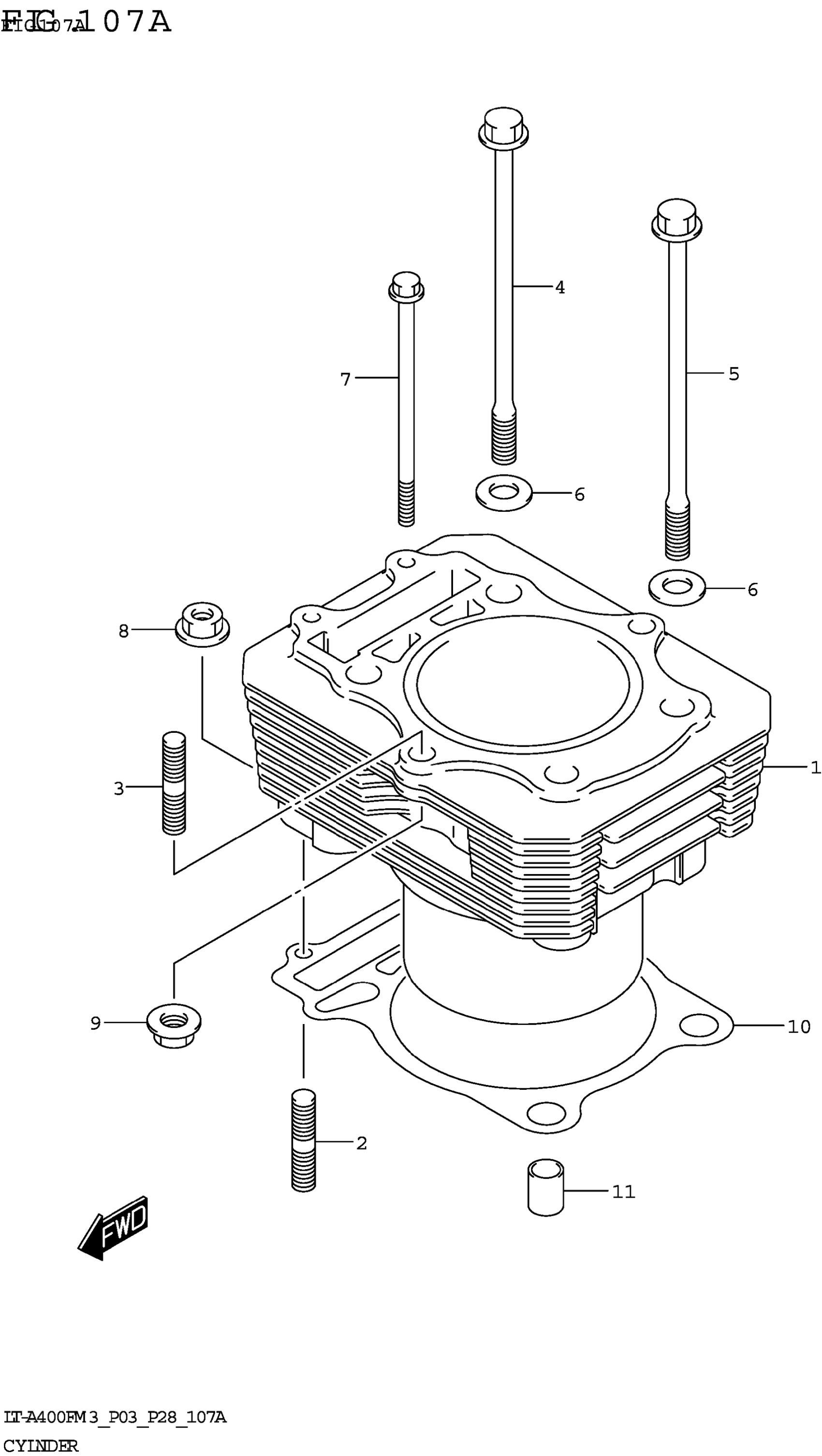

Suzuki LT-A400FM3 (2023) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-27H00-0F0

$766.43

2

BOLT,STUD

01421-0620A

$1.97

3

BOLT,STUD (L:30)

09108-08142

$2.95

4

BOLT (10X180)

09103-10178

$13.77

5

BOLT (10X170)

09103-10321

$16.60

6

WASHER (10.5X22X2.3)

09160-10039

$2.31

7

BOLT (6X115)

09103-06167

$4.04

8

NUT (6X12)

08316-1006A

$2.25

9

NUT

08316-1008A

$2.56

10

.GASKET,CYLINDER

11241-38F00

$12.73

11

PIN (10.4X13X18)

04211-13189

$2.25
