2022 Suzuki LT-A400FM2 Wiring Harness Diagram

← All diagrams

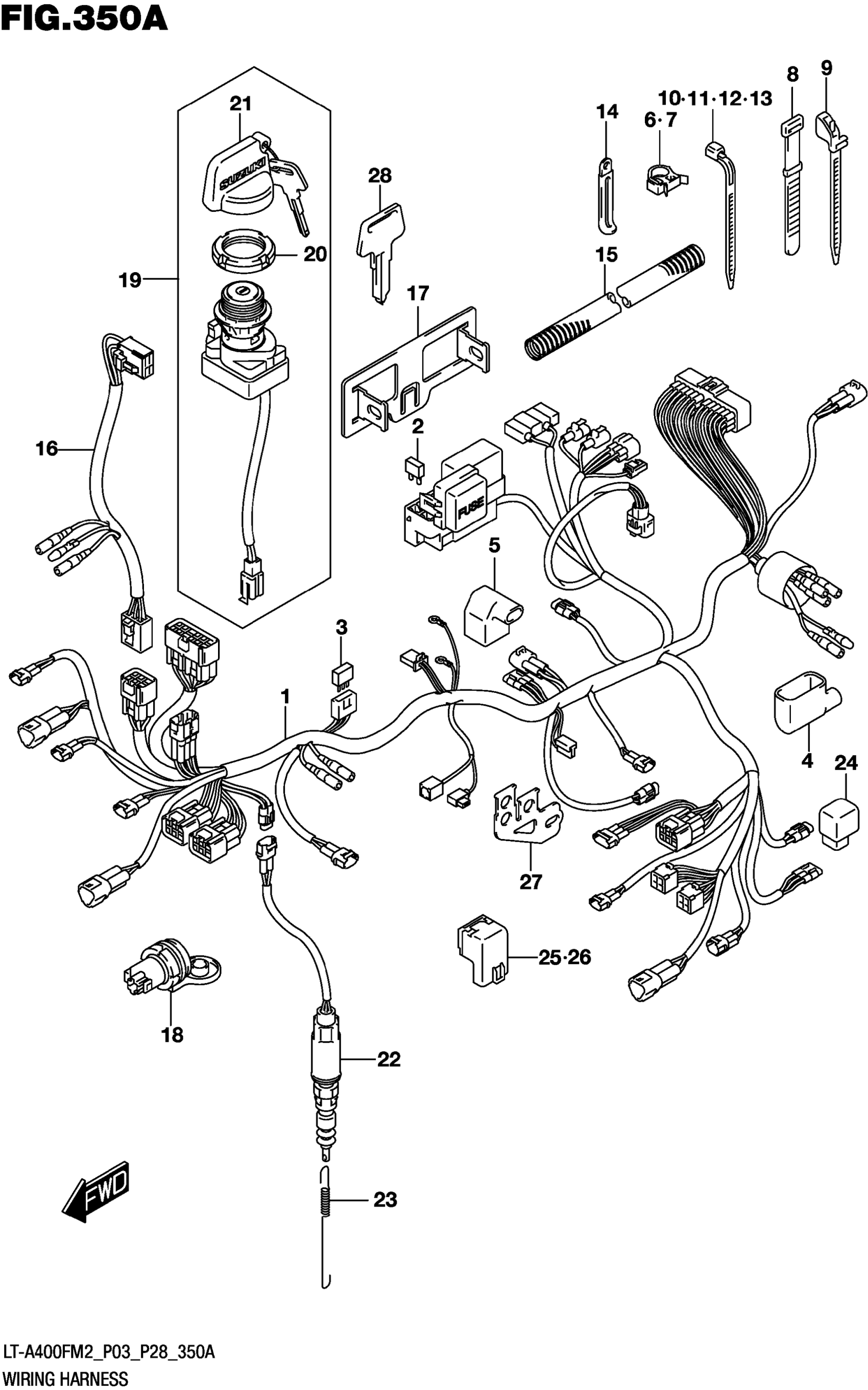

Find the part on the Wiring Harness diagram for your 2022 Suzuki LT-A400FM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-A400FM2 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING This part replaces 36610-27HG1.

36610-27HG2

1
Out of stock

2

.FUSE (10A)

09481-10501

6
Out of stock

3

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

4

.PROTECTOR,WIRING HARNESS

36618-25H00

1
Out of stock

5

.BOOT,CONNECTOR

36618-27H00

1
Out of stock

6

CLAMP (D:20)

09403-20403

1
Out of stock

7

CLAMP

09403-30403

1
Out of stock

8

CLAMP (L:187)

09407-18401

2
Out of stock

9

CLAMP (L:116)

09407-12407

—
Out of stock

10

CLAMP (L:125)

09407-14403

8
Out of stock

11

CLAMP (L:165)

09407-18402

2
Out of stock

12

CLAMP (L:235)

09407-25401

3
Out of stock

13

CLAMP (L:95)

09407-11401

1
Out of stock

14

1

$2.42

In stock

15

GUIDE,WIRING HARNESS

36619-27H00

1
Out of stock

16

WIRE,FRONT BRAKE SW LEAD

36855-27H00

1
Out of stock

17

BRACKET,FUSE BOX

36744-38F00

1
Out of stock

18

TERMINAL,POWER SOURCE (12V,12

38850-03G10

1
Out of stock

19

SWITCH ASSY,IGNITION

37110-38F01

1
Out of stock

20

.NUT,IGNITION SWITCH

37112-24500

1
Out of stock

21

.MASCOT,KEY

37142-19B01

1
Out of stock

22

SWITCH ASSY,STOP LAMP

37740-38F01

1
Out of stock

23

SPRING

09443-06016

1
Out of stock

24

RELAY,NEUTRAL START

38730-09F00

1
Out of stock

25

RELAY ASSY

38740-31G11

1
Out of stock

26

RELAY ASSY

38740-31G11

1
Out of stock

27

BRACKET, RELAY

38741-27H20

—
Out of stock

28-1

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

28-2

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

28-3

KEY,BLANK (TYPE:E) | OPT

37146-19B20

1
Out of stock

28-4

KEY,BLANK (TYPE:F) | OPT

37146-19B30

1
Out of stock
