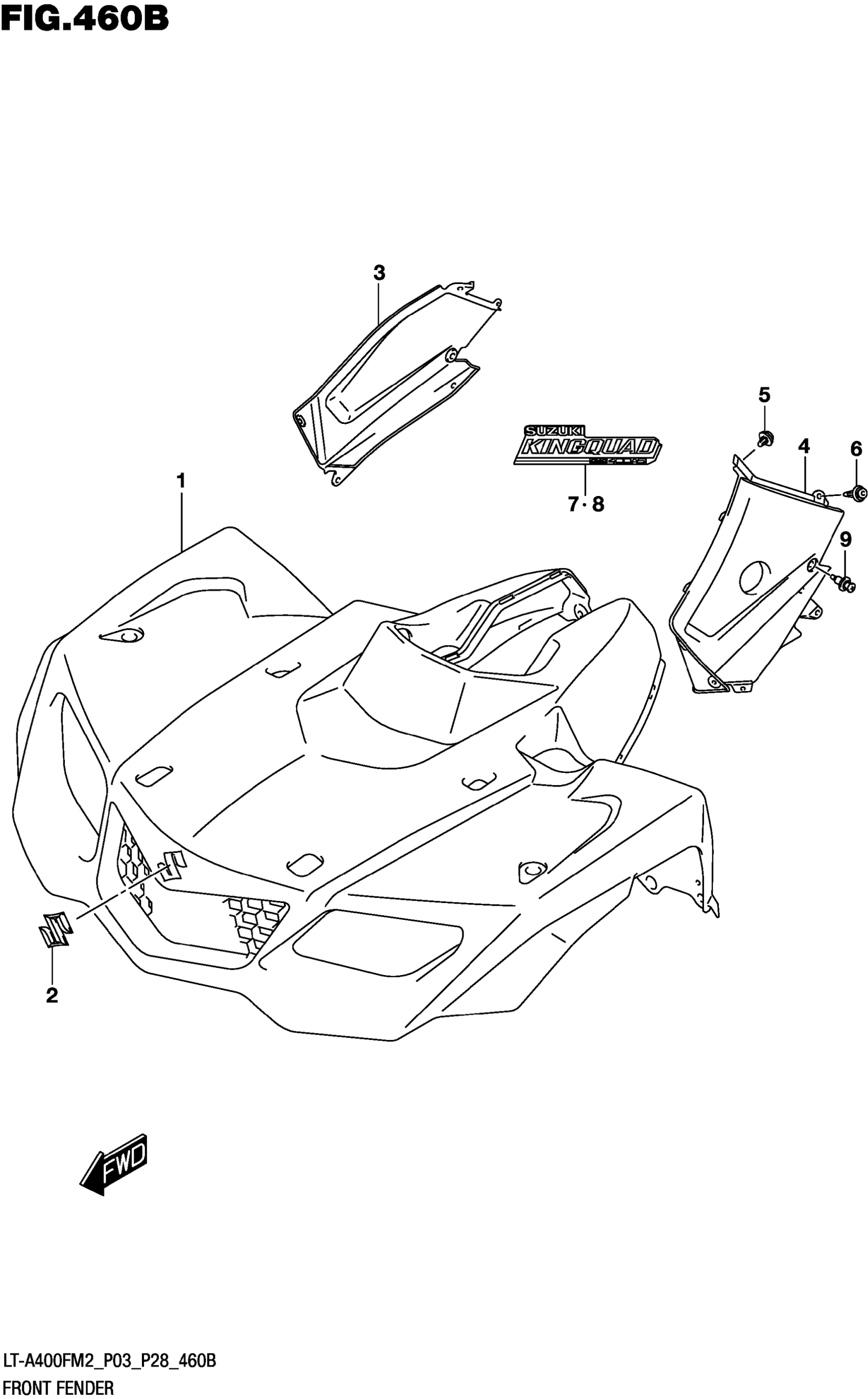

Suzuki LT-A400FM2 (2022) FRONT FENDER (P28) Diagram

Description

Price

1-1

FENDER,FRONT (RED) This part replaces 53111-27H01-YT9.

53111-27H02-YT9

$371.05

1-2

FENDER,FRONT (GREEN) This part replaces 53111-27H01-YLG.

53111-27H02-YLG

$358.13

1-3

FENDER,FRONT (WHITE) This part replaces 53111-27H01-30H.

53111-27H02-30H

$353.38

1-4

FENDER,FRONT (KANATI)

53111-27H11-QTM

$1,091.68

1-5

FENDER,FRONT (BRONZE)

53111-27H30-QMA

$471.43

1-6

FENDER,FRONT (GRAY)

53111-27H30-QTF

$917.18

EMBLEM,"S"

68151-03G40

$15.59

COVER,SIDE,R (BLACK) This part replaces 53112-27H02-291.

53112-27H04-291

$49.86

COVER,SIDE,L (BLACK) This part replaces 53122-27H11-291.

53122-27H13-291

$52.33

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

CLIP

09409-08335

$2.44

EMBLEM,FRONT FENDER RH (GRAY,

68151-27HB0-BM6

$27.17

EMBLEM,FRONT FENDER LH (GRAY,

68152-27HB0-BM6

$19.28

CLIP

09409-10306

$2.80
