2022 Suzuki LT-A400FM2 Cooling FAN Diagram

← All diagrams

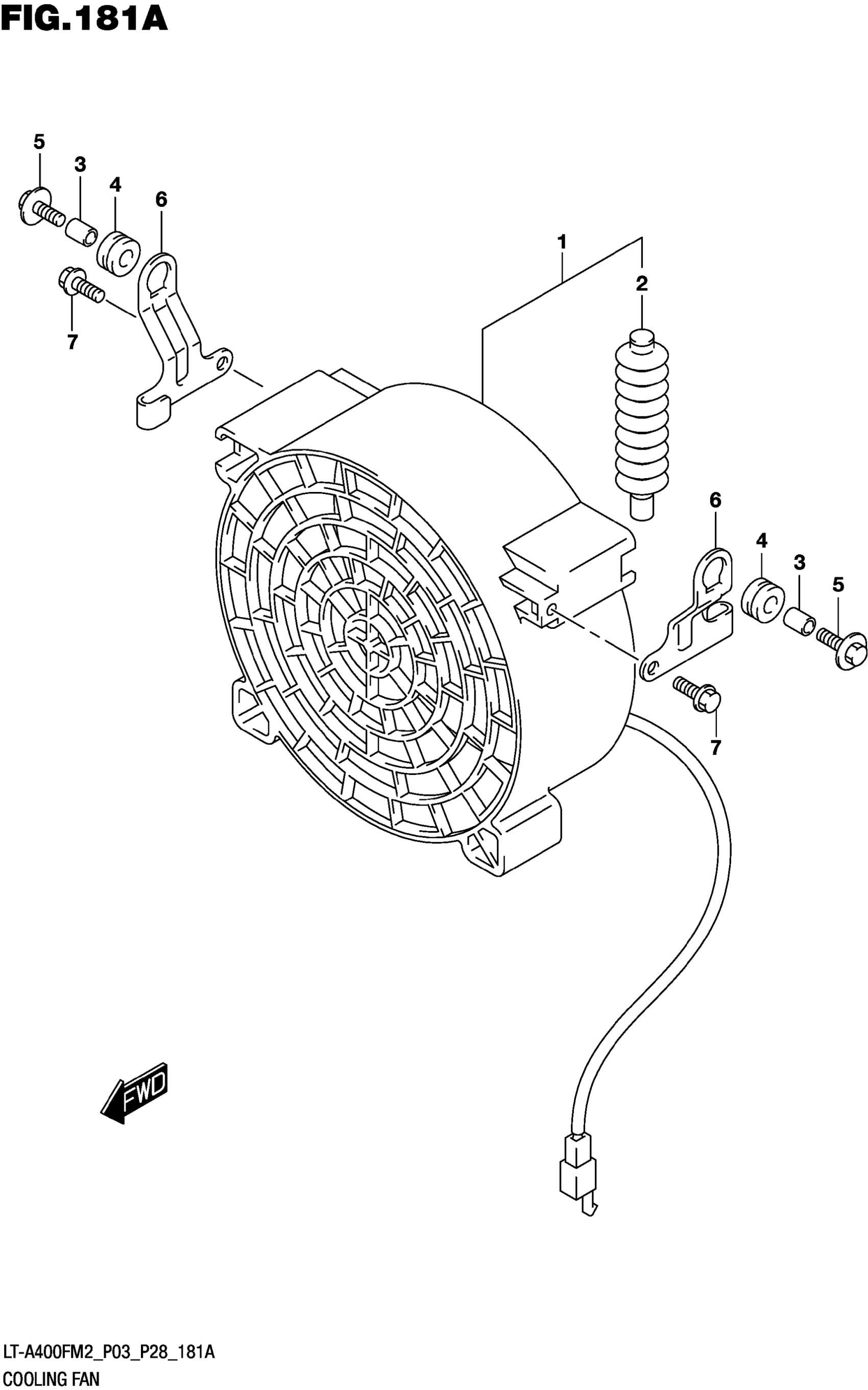

Find the part on the Cooling FAN diagram for your 2022 Suzuki LT-A400FM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-A400FM2 Cooling FAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAN ASSY,COOLING

17800-27H11

1
Out of stock

2

.BOOT,RDTR FAN MOTOR

17820-07G10

1
Out of stock

3

SPACER (6.5X10X10)

09180-06310

2
Out of stock

4

CUSHION

09320-10015

3
Out of stock

5

BOLT,6X20 (6X20)

09116-06212

2
Out of stock

6

BRACKET,COOLING FA

17810-38F00

2
Out of stock

7

BOLT

01550-0612A

2
Out of stock
