2021 Suzuki LT-A400FM1 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2021 Suzuki LT-A400FM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

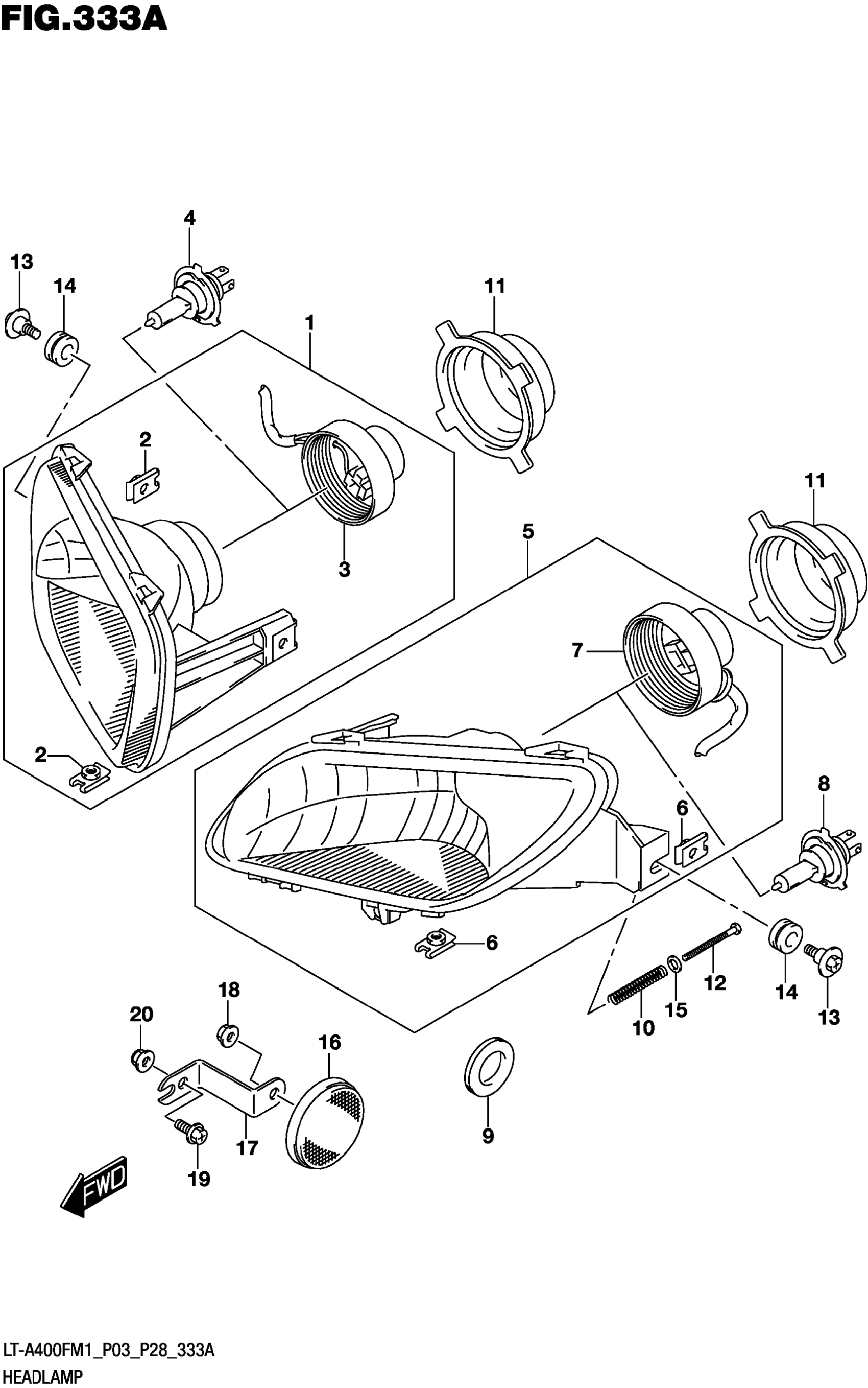

2021 Suzuki LT-A400FM1 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY RH

35100-31G92-999

1
Out of stock

2

.NUT (M6)

35157-31G90

2
Out of stock

3

.CORD ASSY RH

35171-31GM1

1
Out of stock

4

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

1
Out of stock

5

HEADLAMP ASSY LH

35300-31G92-999

1
Out of stock

6

.NUT (M6)

35157-31G90

2
Out of stock

7

.CORD ASSY LH

35171-31GH1

1
Out of stock

8

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

1
Out of stock

9

GROMMET

09308-07011

2
Out of stock

10

SPRING

35154-31300

2
Out of stock

11

COVER,HEADLAMP HOUSING

35174-31G00

2
Out of stock

12

SCREW (4X50)

09125-04031

2
Out of stock

13

SCREW (6X22.5)

09139-06118

4
Out of stock

14

CUSHION This part replaces 09320-10043.

09320-10501

4
Out of stock

15

WASHER

08322-0104A

2
Out of stock

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

17

BRACKET,FRONT SIDE RR

35956-27H00

2
Out of stock

18

NUT

08316-1005A

2
Out of stock

19

SCREW

02162-0516B

2
Out of stock

20

NUT

08319-3105B

2
Out of stock
