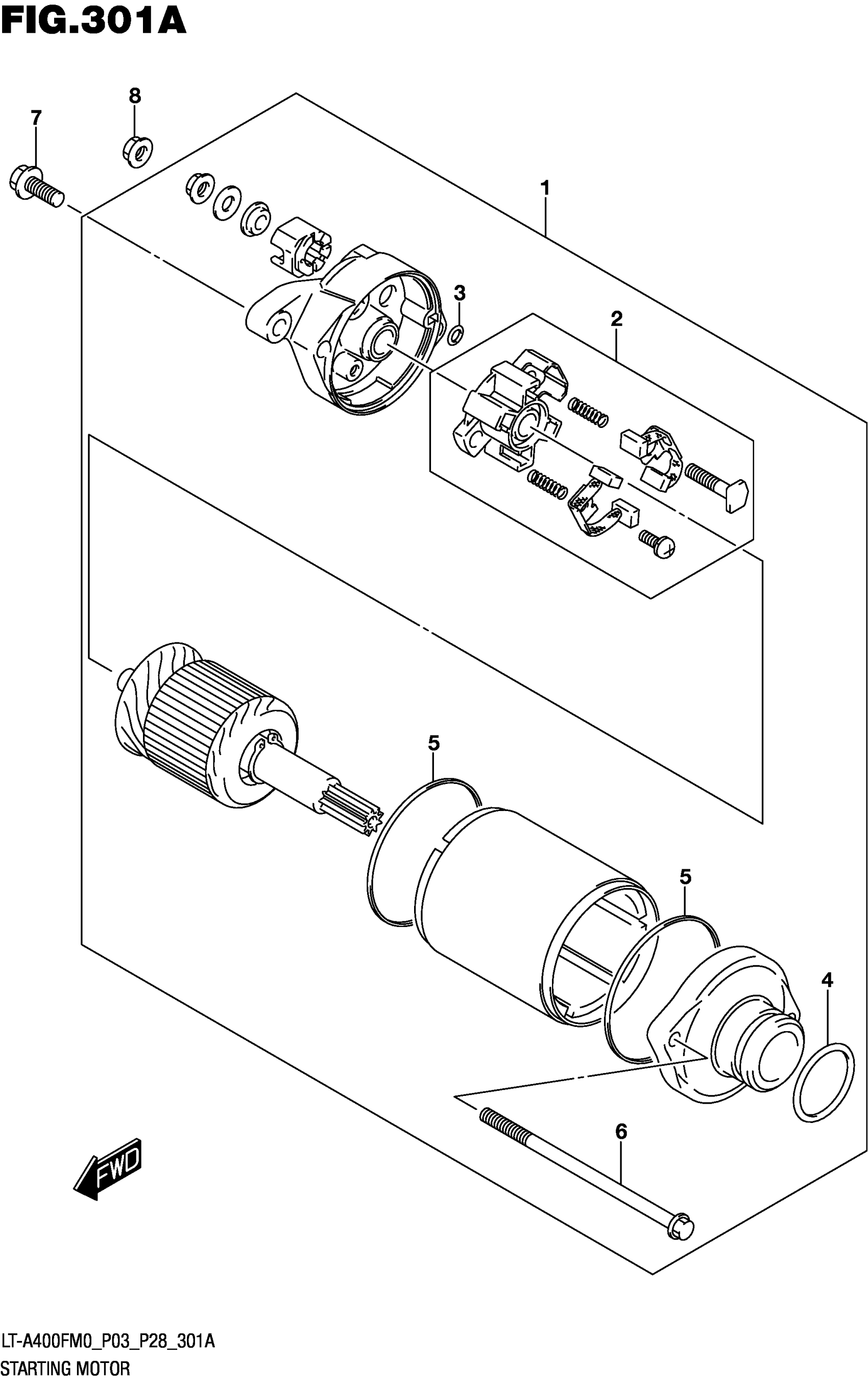

Suzuki LT-A400FM0 (2020) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING

31100-38F20

$362.47

2

.BRUSH HOLDER SET

31132-38F10

$51.95

3

.O-RING

31143-49040

$3.50

4

.O-RING (D:3.1,ID:24.4)

31156-98E00

$3.66

5

.SQUARE RING

31264-38F10

$9.50

6

.BOLT

31280-38F10

Unavailable

7

BOLT

01547-0625A

$2.01

8

NUT

08361-3506A

$1.81
