2019 Suzuki LT-A400FL9 Starting Motor Diagram

← All diagrams

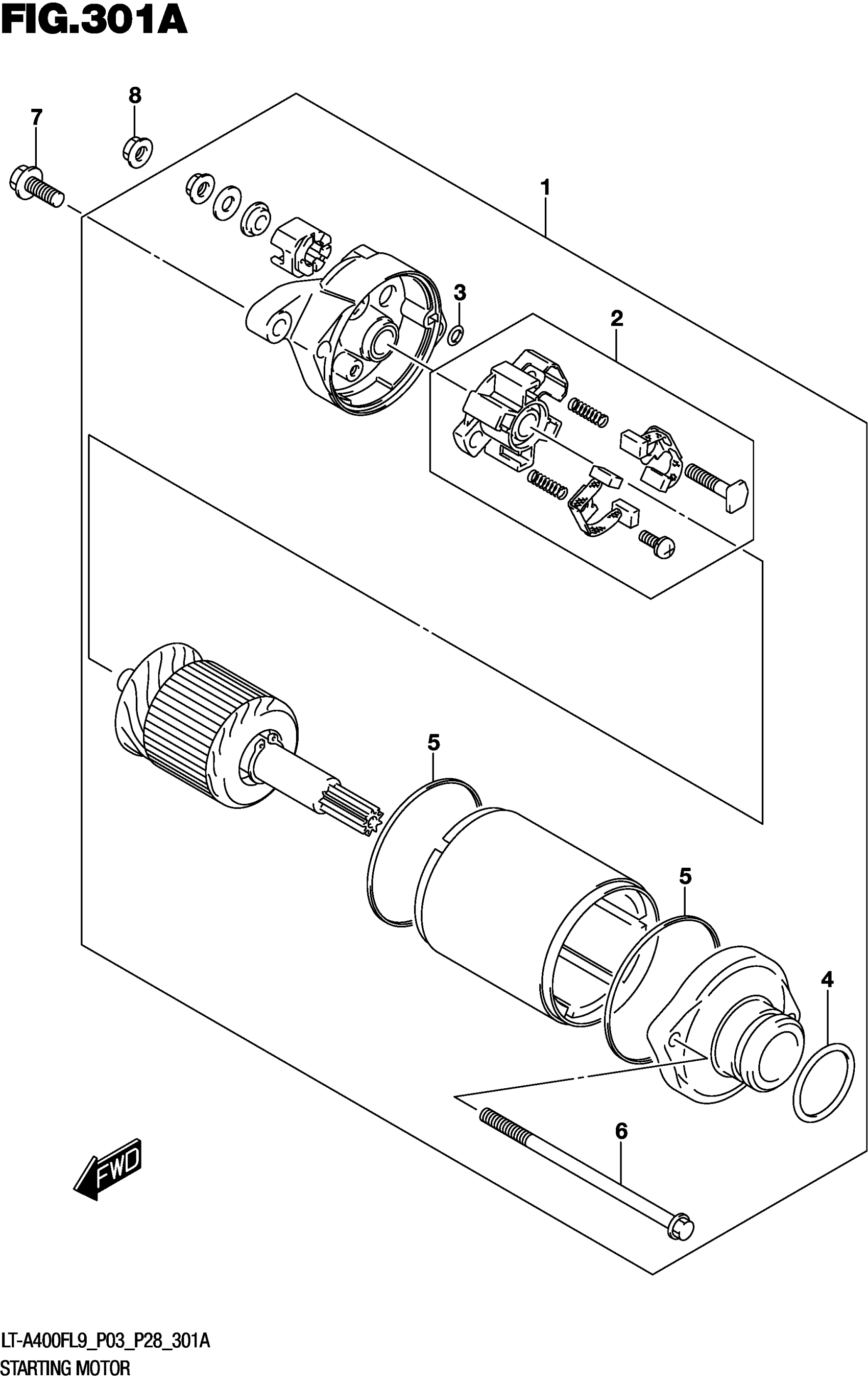

Find the part on the Starting Motor diagram for your 2019 Suzuki LT-A400FL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki LT-A400FL9 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING

31100-38F20

1
Out of stock

2

.BRUSH HOLDER SET

31132-38F10

1
Out of stock

3

.O-RING

31143-49040

1
Out of stock

4

.O-RING (D:3.1,ID:24.4)

31156-98E00

1
Out of stock

5

.SQUARE RING

31264-38F10

2
Out of stock

6

.BOLT

31280-38F10

2
Out of stock

7

BOLT

01547-0625A

2
Out of stock

8

NUT

08361-3506A

1
Out of stock
