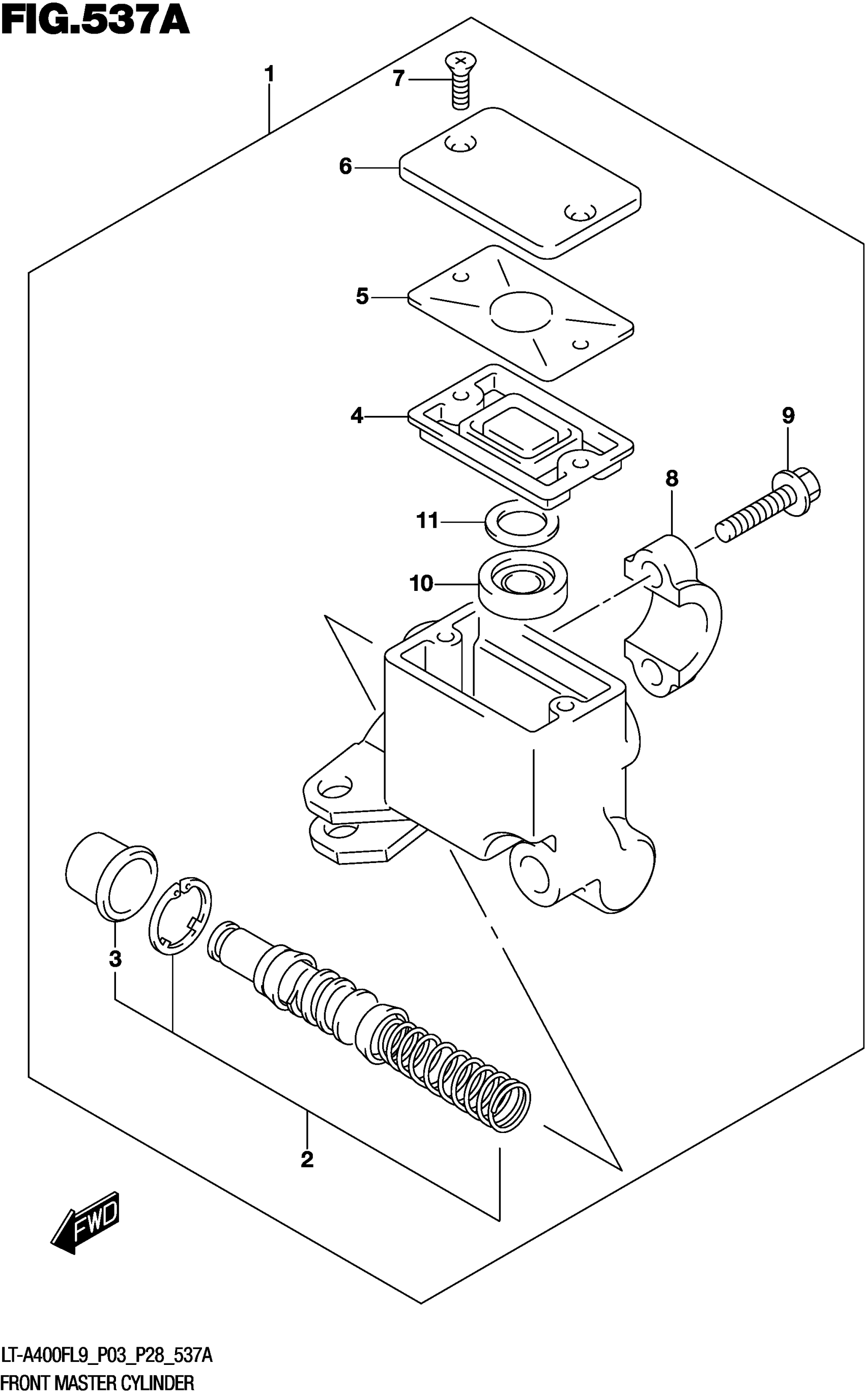

Suzuki LT-A400FL9 (2019) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-12D20

$330.98

2

.PISTON & CUP SET

59600-45850

$37.16

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-04700

$8.95

5

.PLATE,DIAPHRAGM

59668-14F00

$13.10

6

.CAP

59669-14F10

$23.02

7

.SCREW

69689-49300

$1.81

8

.HOLDER

59671-36500

$11.50

9

.BOLT (6X22)

59675-02FA0

$3.49

10

.SEPARATOR

59748-15400

$8.83

11

.PLATE

59749-15400

$2.80
