2019 Suzuki LT-A400FL9 2ND AIR Diagram

← All diagrams

Find the part on the 2ND AIR diagram for your 2019 Suzuki LT-A400FL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

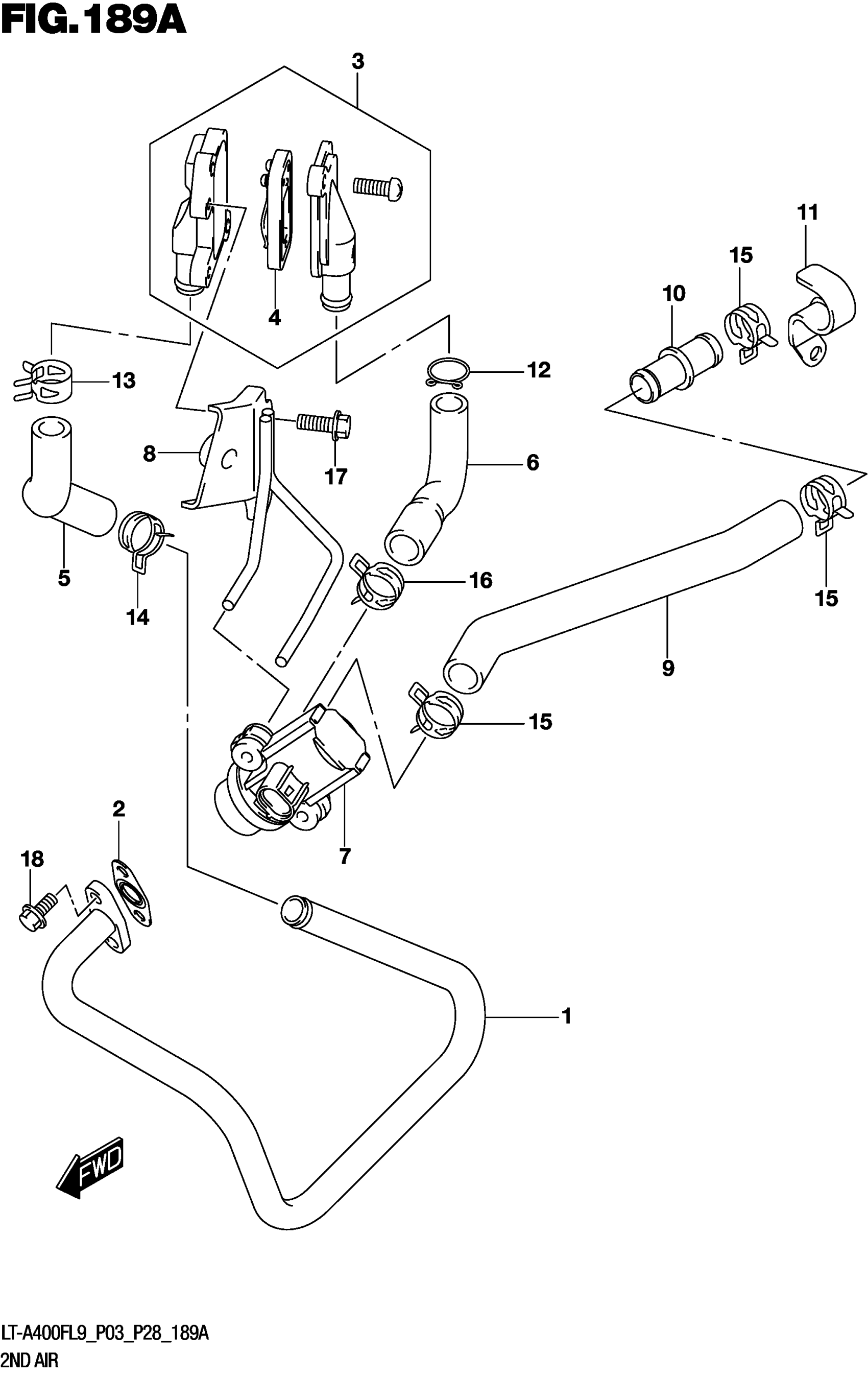

2019 Suzuki LT-A400FL9 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE COMP, 2ND AIR

18410-27H00

1
Out of stock

2

GASKET, 2ND AIR PIPE

18441-27H00

1
Out of stock

3

VALVE ASSY, 2ND AIR

18450-27H00

1
Out of stock

4

.VALVE ASSY,2ND AIR REED

18450-06G00

1
Out of stock

5

HOSE, 2ND AIR VALVE

18461-27H00

—
Out of stock

6

HOSE, 2ND AIR SWITCHING VALVE

18481-27H00

—
Out of stock

7

VALVE ASSY,AIR CUT

18510-29G50

1
Out of stock

8

BRACKET COMP, 2ND AIR VALVE

18610-27H00

1
Out of stock

9

HOSE, 2ND AIR CLEANER

18711-27H00

1
Out of stock

10

JOINT,2ND AIR CLNR HOSE

18713-39G00

1
Out of stock

11

GUIDE, 2ND AIR CLEANER HOSE

18715-27H00

—
Out of stock

12

CLIP (ID:15.5)

09401-15101

1
Out of stock

13

CLIP This part replaces 09401-16402.

09401-16403

1
Out of stock

14

CLIP (ID:16.5)

09401-16407

1
Out of stock

15

CLIP (ID:16.5)

09401-16407

3
Out of stock

16

CLIP (ID:16.5)

09401-16407

1
Out of stock

17

BOLT

01547-0612A

2
Out of stock

18

BOLT

01547-0616A

2
Out of stock
