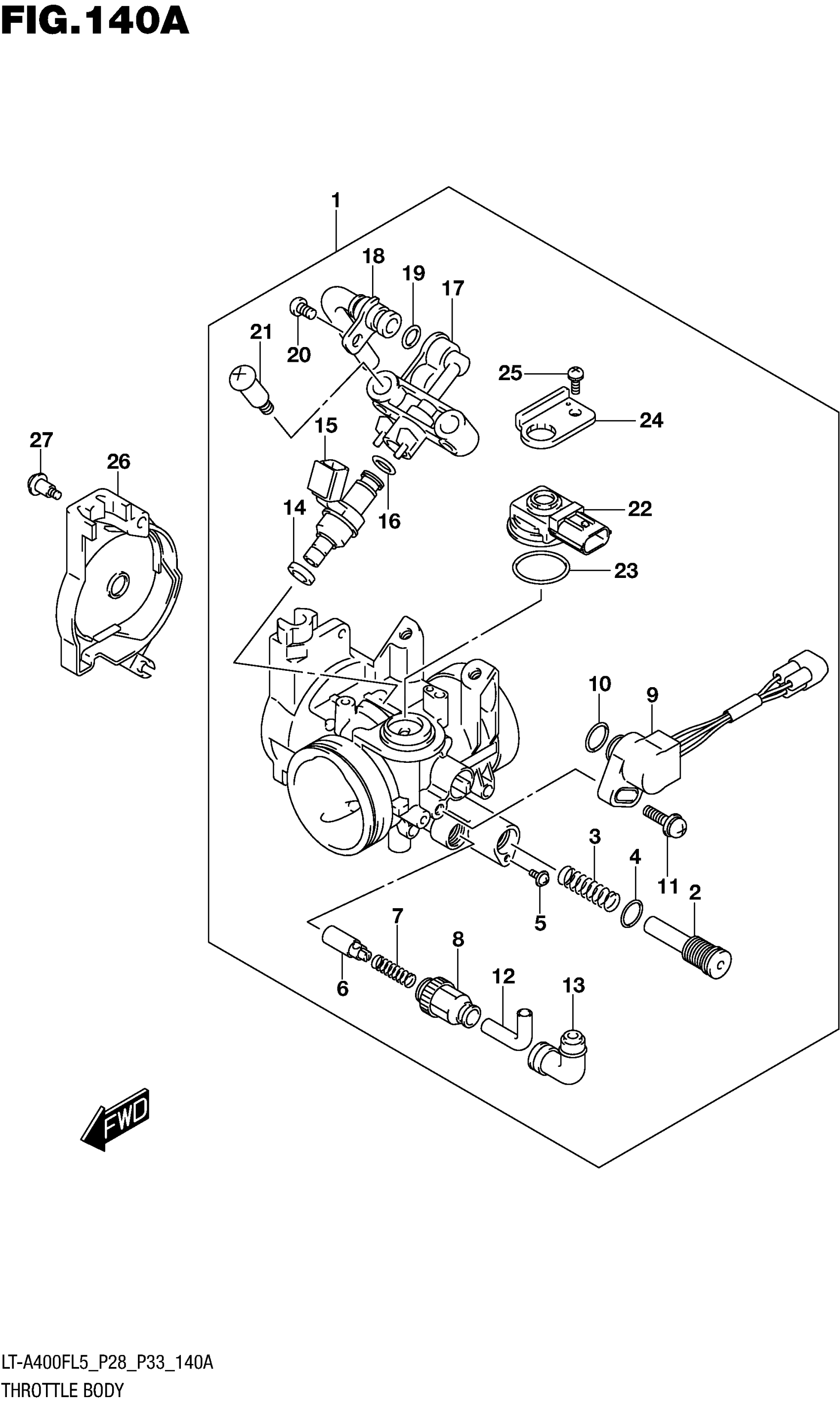

Suzuki LT-A400FL5 (2015) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13400-27H11.

13400-27H13

$635.58

2

SCREW

13279-27H00

$14.55

3

SPRING

13271-14G00

Unavailable

4

O RING

13295-14G00

$3.17

5

SCREW

13601-14G00

$3.42

6

STARTER VALVE

13411-28H00

$47.05

7

SPRING

13271-45G00

$5.81

8

HOLDER, CABLE

13581-45G00

$3.41

9

SENSOR,POSITION This part replaces 13580-27H11.

13580-27H12

$124.49

10

O RING

13575-40F00

$3.85

11

SCREW

13605-40F00

$3.50

12

GUIDE, CABLE

13579-45G00

$14.35

13

CAP

13681-45G00

$6.40

14

.RING,SEAL

15722-21H00

$10.30

15

INJECTOR ASSY

15710-21H10

$210.17

16

.O-RING

15721-21H00

$8.31

17

PIPE, FUEL

13471-27H00

$38.38

18

JOINT

13685-27H00

$42.28

19

.O-RING

15721-24F00

$8.31

20

SCREW

13452-45G00

$4.05

21

SCREW

13601-45G00

$2.97

22

SENSOR, MAP

15620-05H00

$304.30

23

.O RING This part replaces 15621-05H00.

15621-05H01

$10.22

24

PLATE, MAP SENSOR

15622-33H00

Unavailable

25

SCREW

02112-14087

$2.58

26

COVER

13484-45G00

$39.33

27

SCREW

13601-11F00

$2.80
