2014 Suzuki LT-A400FL4 Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 2014 Suzuki LT-A400FL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

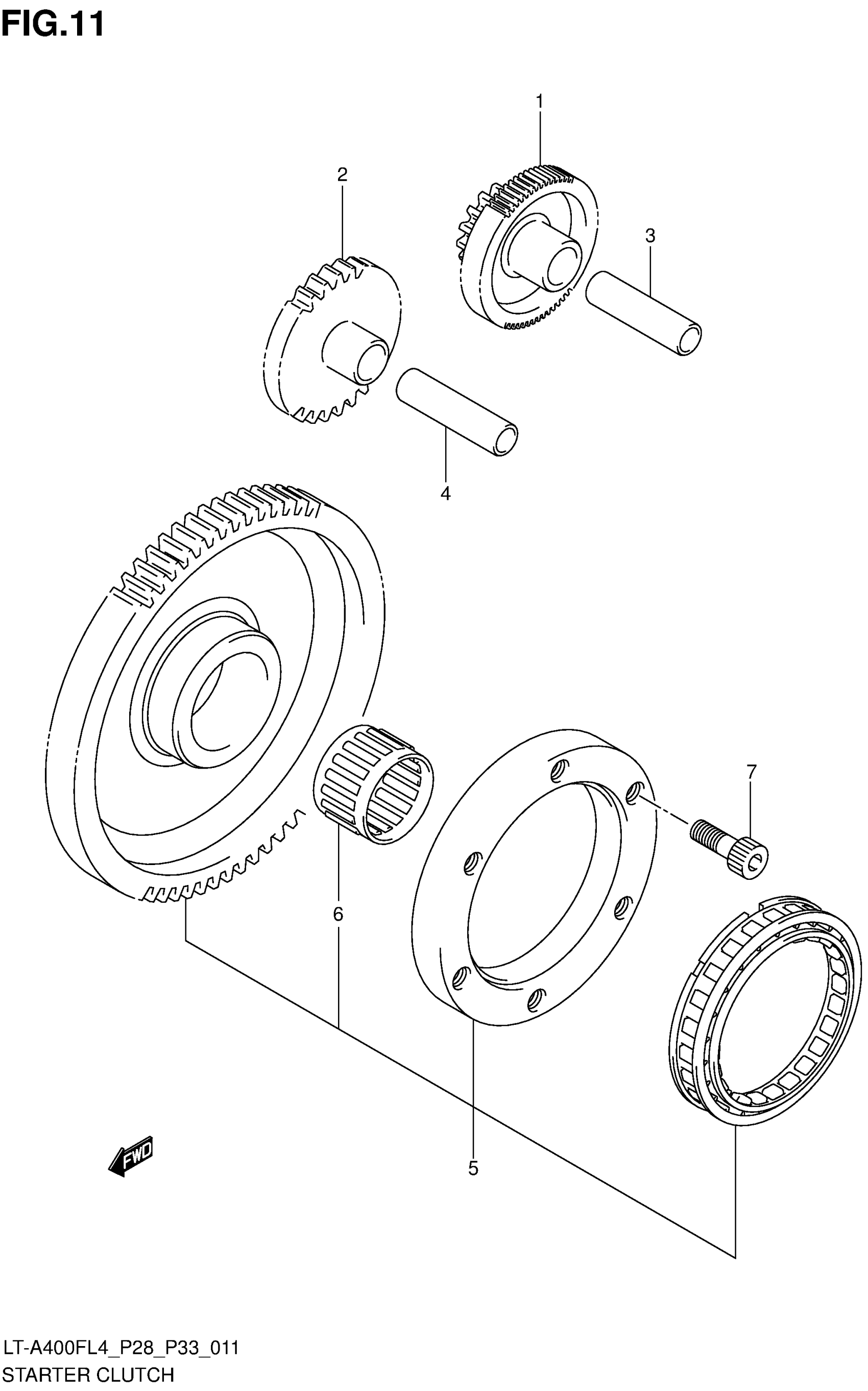

2014 Suzuki LT-A400FL4 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE NO.1 (NT:10/56)

12611-38F00

1
Out of stock

2

GEAR, STARTER IDLE NO.2 (NT:27)

12612-12D01

1
Out of stock

3

PIN (8X12X59)

09206-12005

1
Out of stock

4

PIN (8X12X45.5)

09206-12006

1
Out of stock

5

CLUTCH SET, STARTER ONE WAY (NT:73)

12600-38851

1
Out of stock

6

BEARING (29X36X18)

09263-29008

1
Out of stock

7

BOLT (8X20)

09106-08106

6
Out of stock
