2014 Suzuki LT-A400FL4 Recoil Starter Diagram

← All diagrams

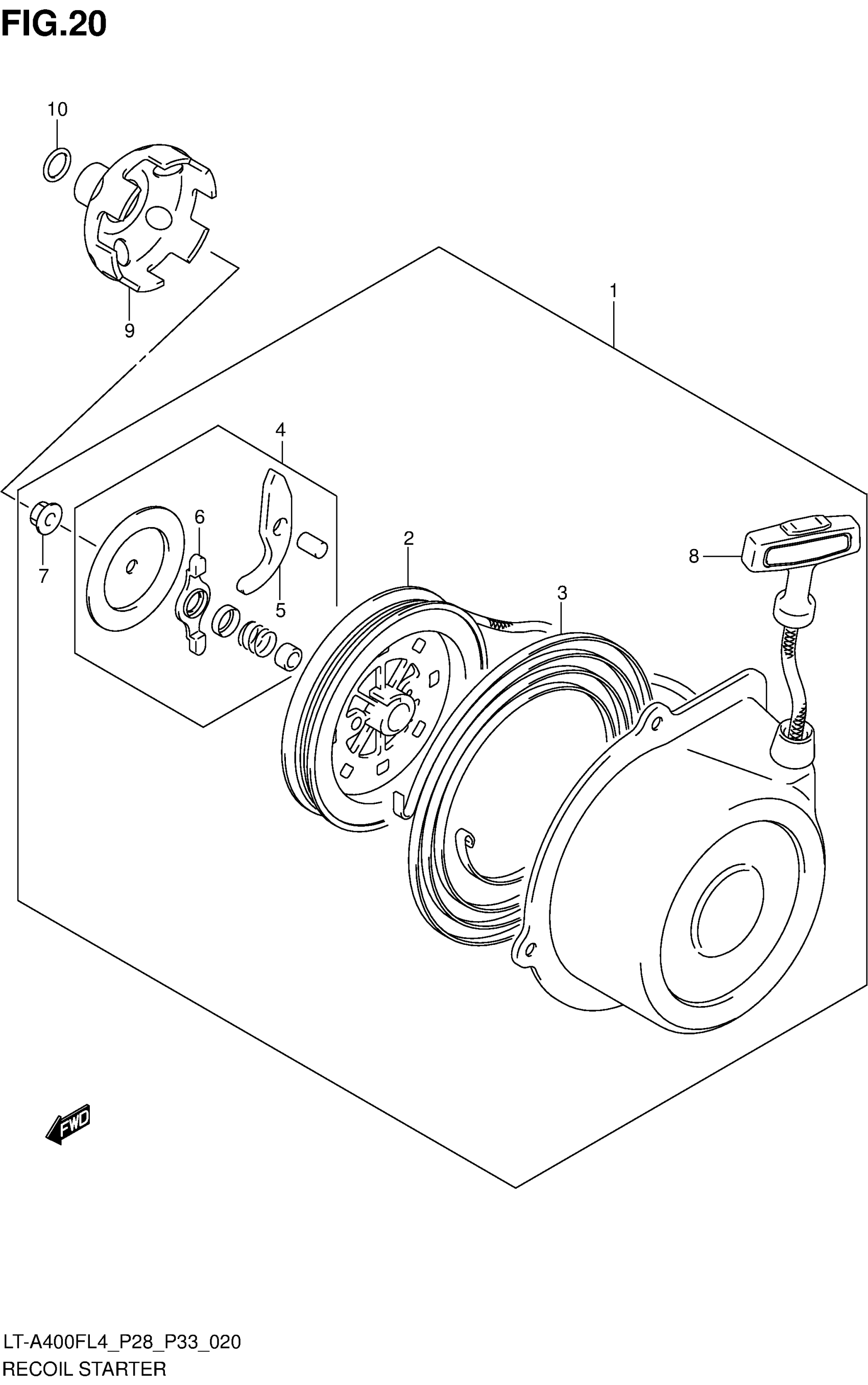

Find the part on the Recoil Starter diagram for your 2014 Suzuki LT-A400FL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-A400FL4 Recoil Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY,RECOIL

18100-24503

1
Out of stock

2

REEL

18120-24500

1
Out of stock

3

.SPRING,SPIRAL

18142-24400

1
Out of stock

4

RATCHET SET

18130-24400

1
Out of stock

5

RATCHET

18131-24411

1
Out of stock

6

..GUIDE,RATCHET

18132-24400

1
Out of stock

7

NUT

08316-1006A

1
Out of stock

8

ROPE ASSY

18200-24501

1
Out of stock

9

CUP,STARTER

18410-09F02

1
Out of stock

10

O RING (D:1.9,ID:12.6)

09280-12009

1
Out of stock
