2014 Suzuki LT-A400FL4 Front Drive Shaft Diagram

← All diagrams

Find the part on the Front Drive Shaft diagram for your 2014 Suzuki LT-A400FL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

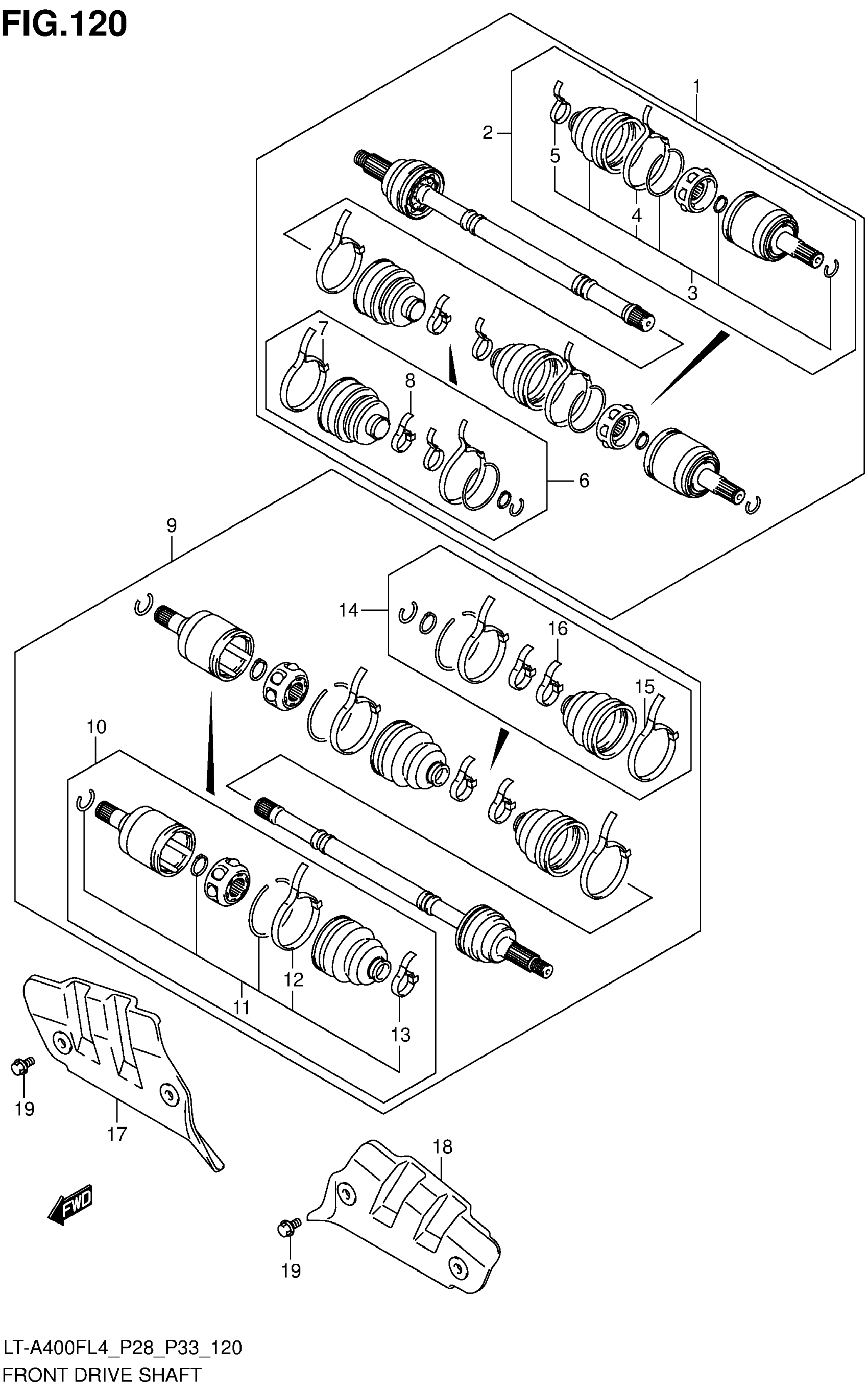

2014 Suzuki LT-A400FL4 Front Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT ASSY, FRONT DRIVE RH This part replaces 54901-27H00.

54901-27H01

1
Out of stock

2

.JOINT SET This part replaces 54933-38F13.

54933-38F14

1
Out of stock

3

..BOOT SET, INNER This part replaces 54931-38F13.

54931-38F14

1
Out of stock

4

BAND, BOOT

44121-38F20

—
Out of stock

5

BAND, BOOT

44124-38F00

—
Out of stock

6

.BOOT SET, OUTER This part replaces 54930-27H00.

54930-27H01

1
Out of stock

7

BAND, BOOT

44121-38F30

—
Out of stock

8

BAND, BOOT

44124-38F00

—
Out of stock

9

SHAFT ASSY, FRONT DRIVE LH This part replaces 54902-27H00.

54902-27H01

1
Out of stock

10

.JOINT SET This part replaces 54933-38F13.

54933-38F14

1
Out of stock

11

..BOOT SET, INNER This part replaces 54931-38F13.

54931-38F14

1
Out of stock

12

BAND, BOOT

44121-38F20

—
Out of stock

13

BAND, BOOT

44124-38F00

—
Out of stock

14

.BOOT SET, OUTER This part replaces 54930-27H00.

54930-27H01

1
Out of stock

15

BAND, BOOT

44121-38F30

—
Out of stock

16

BAND, BOOT

44124-38F00

—
Out of stock

17

PROTECTOR,FRONT DRIVE SHAFT,R This part replaces 54903-27H00.

54903-27H01

1
Out of stock

18

PROTECTOR,FR D/ This part replaces 54904-27H00.

54904-27H00-291

1
Out of stock

19

BOLT (6X12)

09111-06085

4
Out of stock
