2013 Suzuki LT-A400FL3 Starting Motor Diagram

← All diagrams

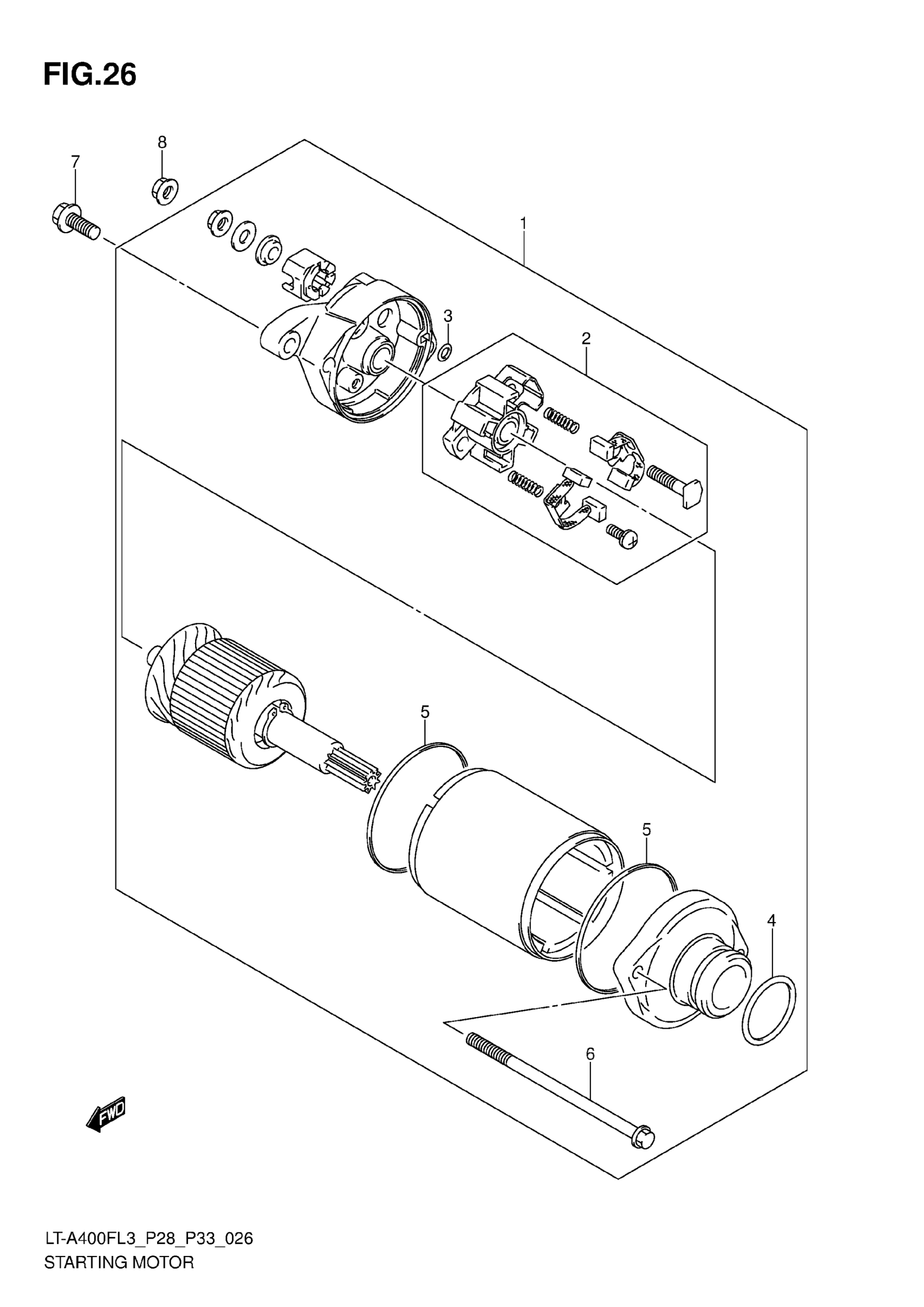

Find the part on the Starting Motor diagram for your 2013 Suzuki LT-A400FL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki LT-A400FL3 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING This part replaces 31100-38F10.

31100-38F20

1
Out of stock

2

BRUSH HOLDER SET

31132-38F10

1
Out of stock

3

O-RING

31143-49040

1
Out of stock

4

O-RING

31156-98E00

1
Out of stock

5

SQUARE RING

31264-38F10

2
Out of stock

6

SET BOLT

31280-38F10

2
Out of stock

7

BOLT

01547-0625A

2
Out of stock

8

NUT

08361-3506A

1
Out of stock
