2013 Suzuki LT-A400FL3 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2013 Suzuki LT-A400FL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

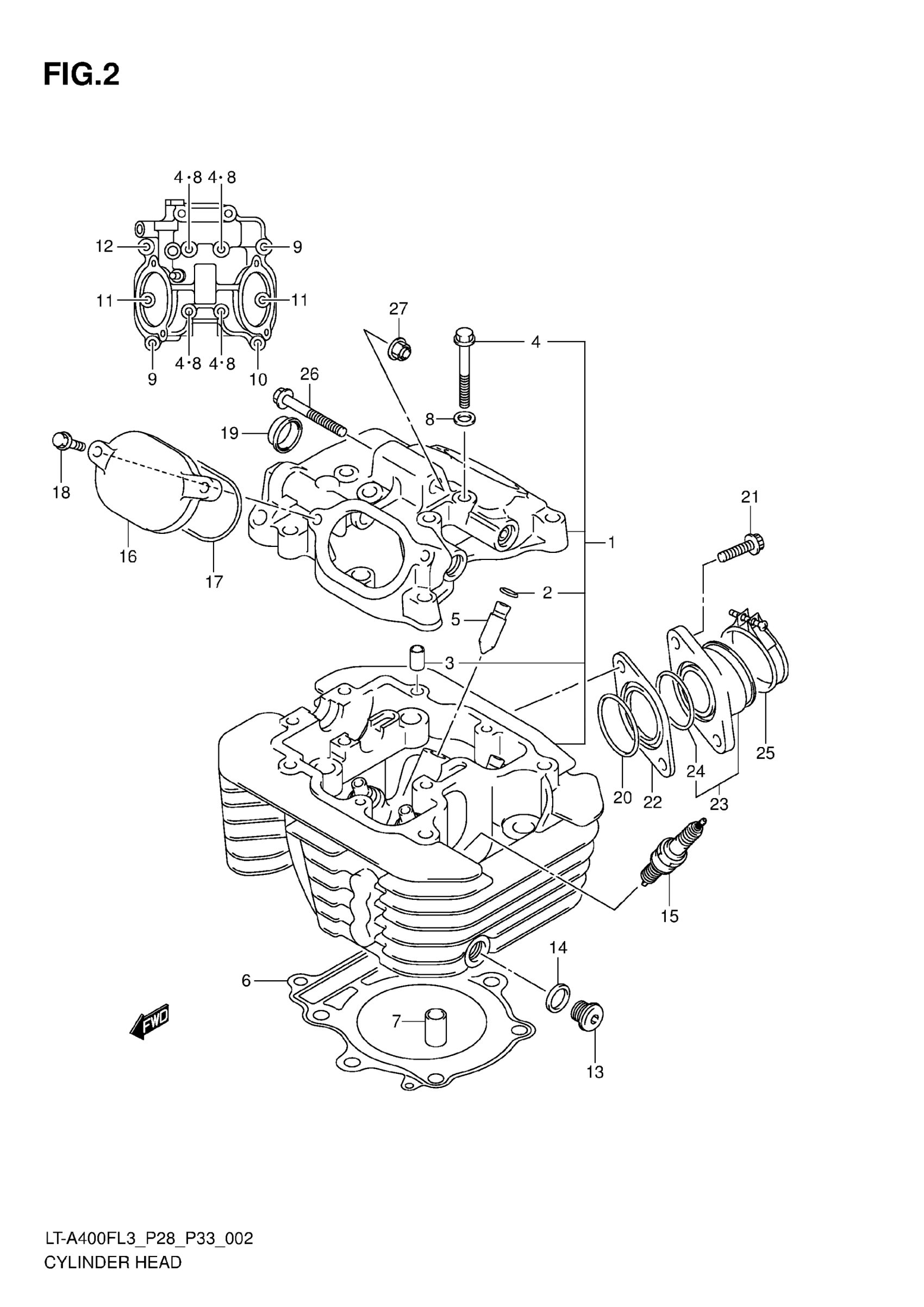

2013 Suzuki LT-A400FL3 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-27H10

1
Out of stock

2

.RING (10X85)

09381-10004

4
Out of stock

3

PIN (8X11)

09206-08001

2
Out of stock

4

BOLT (6X55)

09103-06102

4
Out of stock

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

4
Out of stock

6

GASKET, CYLINDER HEAD

11141-38F00

1
Out of stock

7

PIN (10.4X13X22)

09206-13004

2
Out of stock

8

GASKET (5.8X13X1.2)

09168-06023

4
Out of stock

9

BOLT (6X35)

09103-06108

2
Out of stock

10

BOLT (6X39)

09103-06026

1
Out of stock

11

BOLT

01550-0625A

2
Out of stock

12

BOLT

01550-0630A

1
Out of stock

13

PLUG (L:12)

09248-12004

1
Out of stock

14

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

15

SPARK PLUG (NGK, CR7E)

09482-00516

1
Out of stock

15

SPARK PLUG (DENSO, U22ESR-N)

09482-00515

1
Out of stock

15

SPARK PLUG (NGK, CR6E) | OPT

09482-00528

1
Out of stock

15

SPARK PLUG (DENSO, U20ESR-N) | OPT

09482-00529

1
Out of stock

15

SPARK PLUG (NGK, CR8E) | OPT

09482-00456

1
Out of stock

15

SPARK PLUG (DENSO, U24ESR-N) | OPT

09482-00457

1
Out of stock

16

CAP,INSPECTION

11175-47D00

2
Out of stock

17

.O RING,INSPECTION CAP

11177-14D01

2
Out of stock

18

BOLT

01550-0620A

4
Out of stock

19

PLUG (OD:30)

09241-25007

1
Out of stock

20

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

1
Out of stock

21

SCREW

07120-0625A

2
Out of stock

22

INSULATOR, INTAKE PIPE This part replaces 13117-38F00.

13117-38F01

1
Out of stock

23

PIPE ASSY,INTAKE This part replaces 13101-27H00.

13101-27H01

1
Out of stock

24

O RING

13118-38F00

1
Out of stock

25

CLAMP

09402-54208

1
Out of stock

26

BOLT (8X60)

09103-08217

1
Out of stock

27

NUT

08319-3108A

1
Out of stock
