2012 Suzuki LT-A400FL2 Right Rear Wheel Diagram

← All diagrams

Find the part on the Right Rear Wheel diagram for your 2012 Suzuki LT-A400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

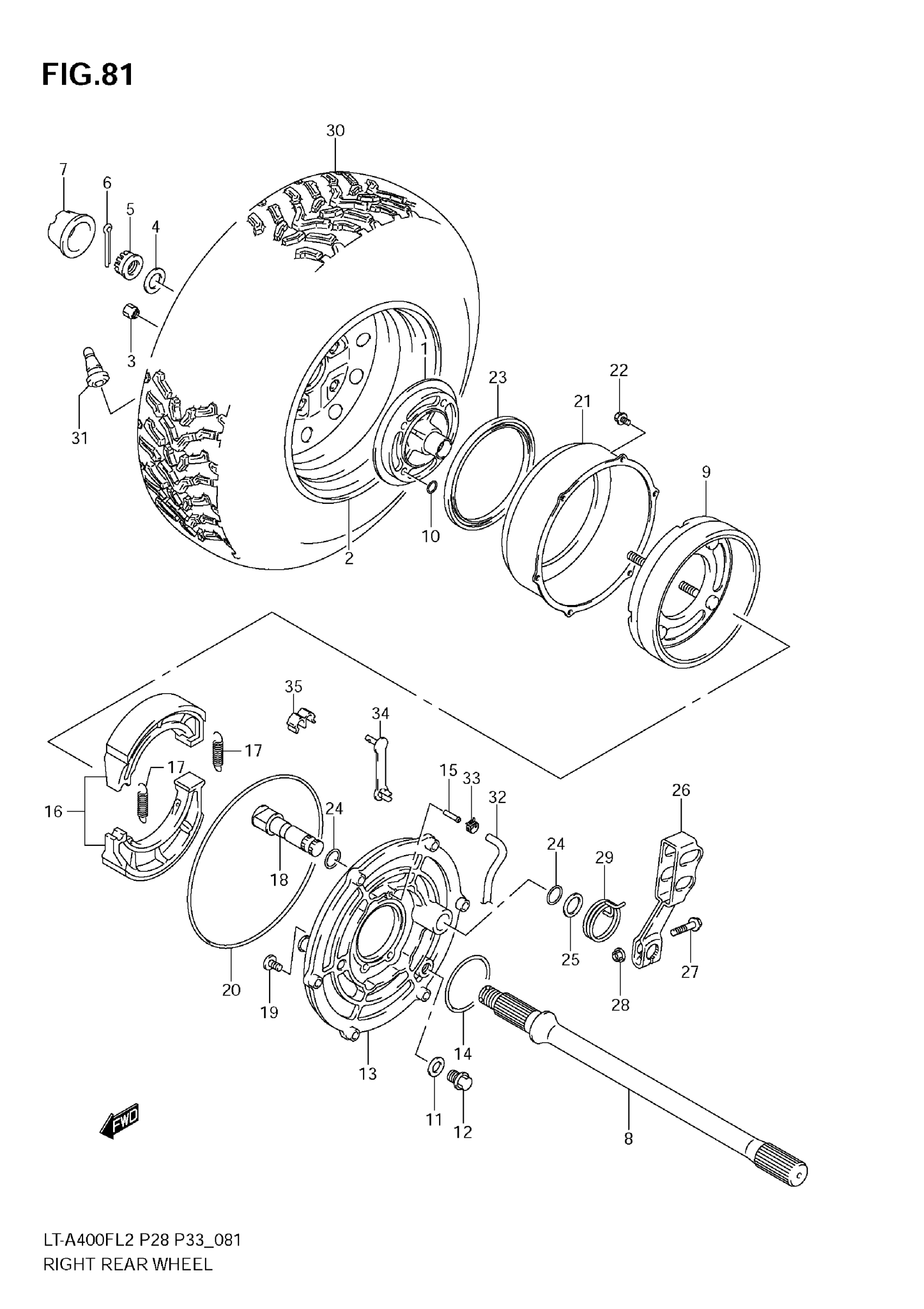

2012 Suzuki LT-A400FL2 Right Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,REAR,R

64111-38F32

1
Out of stock

2

RIM, REAR WHEEL (12X7.5AT) (BLACK)

65310-38F40-291

1
Out of stock

3

NUT

09140-10021

4
Out of stock

4

WASHER,HUB

64723-38F00

1
Out of stock

5

NUT

09141-20008

1
Out of stock

6

COTTER PIN

04111-4035A

1
Out of stock

7

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

8

AXLE,REAR,R

64711-38F20

1
Out of stock

9

DRUM, REAR BRAKE

64120-38F00

1
Out of stock

10

O RING (D:1.9,ID:9.8)

09280-10016

4
Out of stock

11

WASHER (10X17X2)

09161-10007

1
Out of stock

12

PLUG | DRAIN

09247-10008

1
Out of stock

13

PANEL, REAR BRAKE ANCHOR

64210-38F10

1
Out of stock

14

O-RING This part replaces 09280-63001.

09280-63005

1
Out of stock

15

UNION

09364-04004

1
Out of stock

16

SHOE SET, REAR BRAKE

64400-38830

1
Out of stock

17

SPRING, SHOE

55420-30000

2
Out of stock

18

CAM,REAR BRAKE

64440-09F00

1
Out of stock

19

BOLT (8X20)

09106-08161

4
Out of stock

20

O RING (D:3.7,ID:186)

09280-00038

1
Out of stock

21

COVER, REAR BRAKE DRUM

64123-38F00

1
Out of stock

22

BOLT

01547-0612A

6
Out of stock

23

SEAL, REAR BRAKE DRUM COVER

64124-38F00

1
Out of stock

24

O RING, REAR BRAKE CAM DUST

64443-18A00

2
Out of stock

25

WASHER (16X26X1)

09160-16033

1
Out of stock

26

LEVER, REAR BRAKE CAM

64451-09F00

1
Out of stock

27

BOLT

01550-0635A

1
Out of stock

28

NUT

08316-1006A

1
Out of stock

29

SPRING, REAR BRAKE CAM LEVER

64484-38F00

1
Out of stock

30

TIRE,REAR (AT25X10-12) | AT25X10-12 This part replaces 65110-38FC0.

65110-31G30

1
Out of stock

31

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

32

HOSE, REAR BRAKE BREATHER

64275-27H00

1
Out of stock

33

CLIP

09401-06405

1
Out of stock

34

CLAMP (L:33)

09407-03401

2
Out of stock

35

CLIP

09408-00200

1
Out of stock
