2012 Suzuki LT-A400FL2 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2012 Suzuki LT-A400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

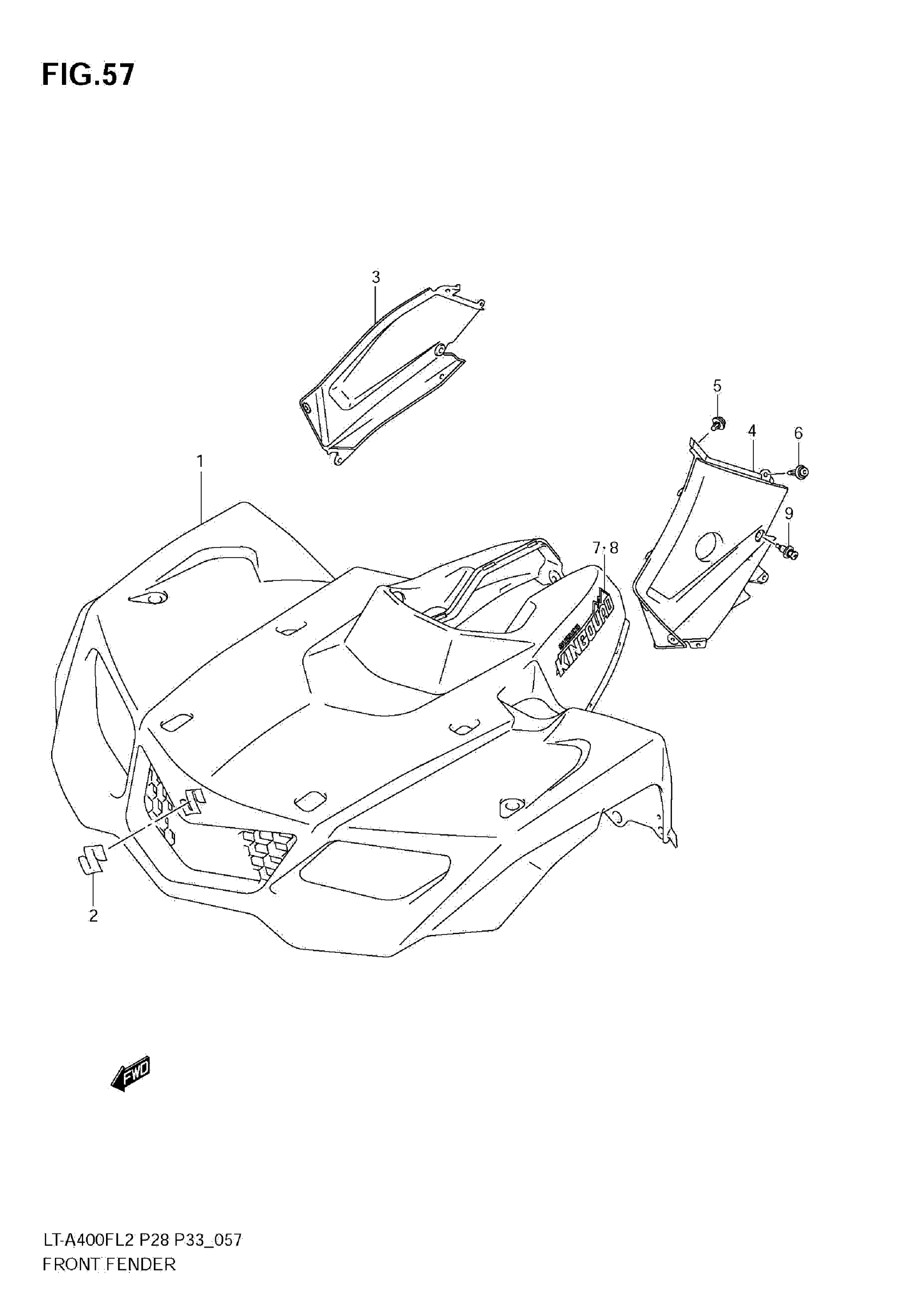

2012 Suzuki LT-A400FL2 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (CAMOUFLAGE)

53111-27H11-YVA

1

$887.80

In stock

2

EMBLEM, FRONT

68151-03G40

1
Out of stock

3

COVER,SIDE,R (BLACK) This part replaces 53112-27H02-291.

53112-27H04-291

1
Out of stock

4

COVER,SIDE,L (BLACK) This part replaces 53122-27H11-291.

53122-27H13-291

1
Out of stock

5

CLIP

09409-07333

2
Out of stock

6

CLIP

09409-08335

4
Out of stock

7

1

$44.45

In stock

8

1

$44.45

In stock

9

CLIP

09409-10306

2
Out of stock
← Front Fender Label →
