2012 Suzuki LT-A400FL2 Front Brake Hose Diagram

← All diagrams

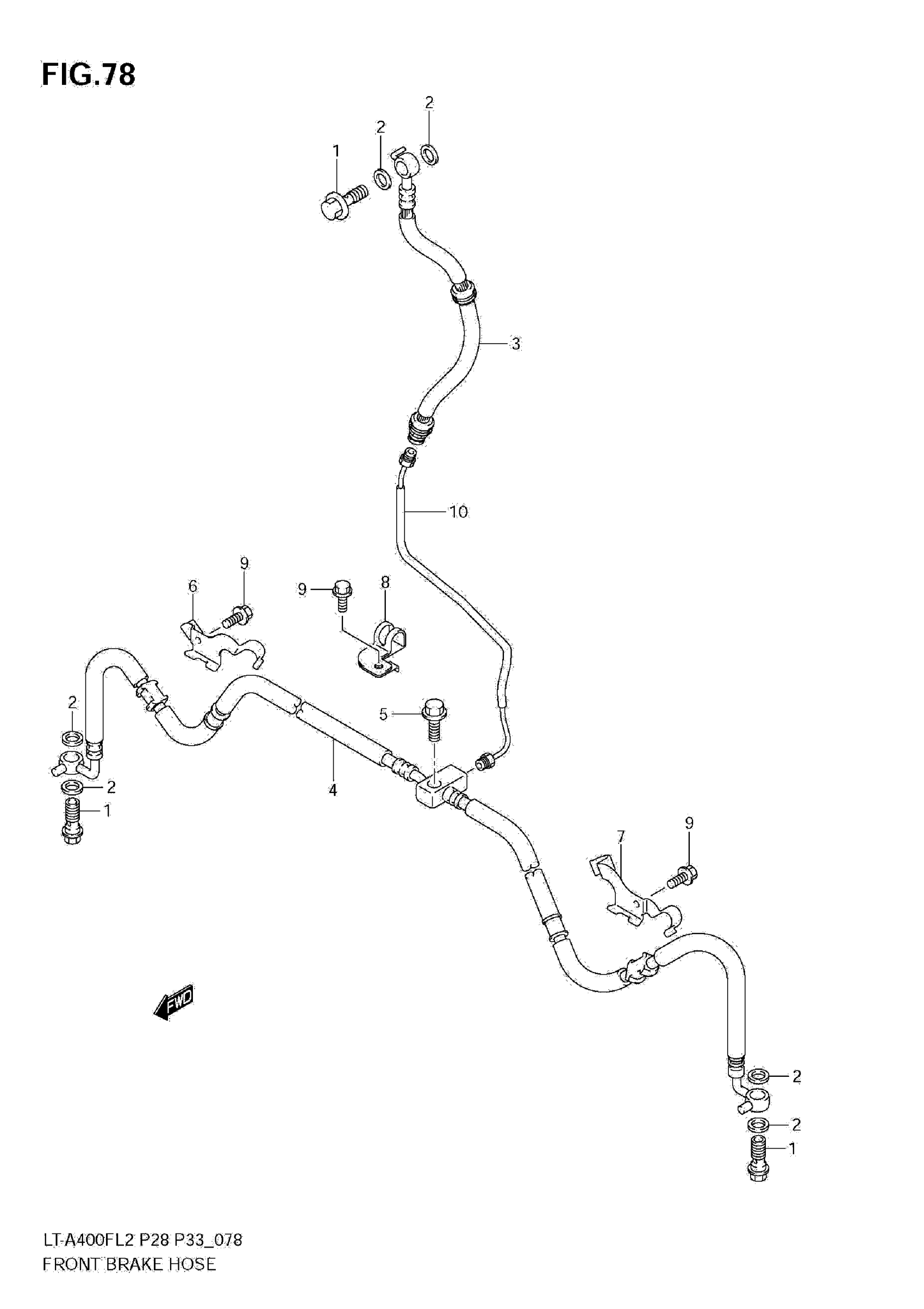

Find the part on the Front Brake Hose diagram for your 2012 Suzuki LT-A400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A400FL2 Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNION

09360-10062

3
Out of stock

2

WASHER (10X15X1.5)

09161-10009

6
Out of stock

3

HOSE,FRONT BRAKE NO.1 This part replaces 59480-27H10.

59480-27H11

1
Out of stock

4

HOSE,FRONT BRAKE NO.2 This part replaces 59240-27H20.

59240-27H22

1
Out of stock

5

BOLT

01550-0625A

1
Out of stock

6

CLAMP,FR BRAKE HOSE NO.2,R

59261-27H00

1
Out of stock

7

CLAMP,FR BRAKE HOSE NO.2,L

59271-27H00

1
Out of stock

8

CLAMP,FR BK HOSE NO.2 MIDDLE

59266-27H00

1
Out of stock

9

BOLT

01550-0616A

3
Out of stock

10

PIPE,FR BRAKE

59250-27H00

1
Out of stock
