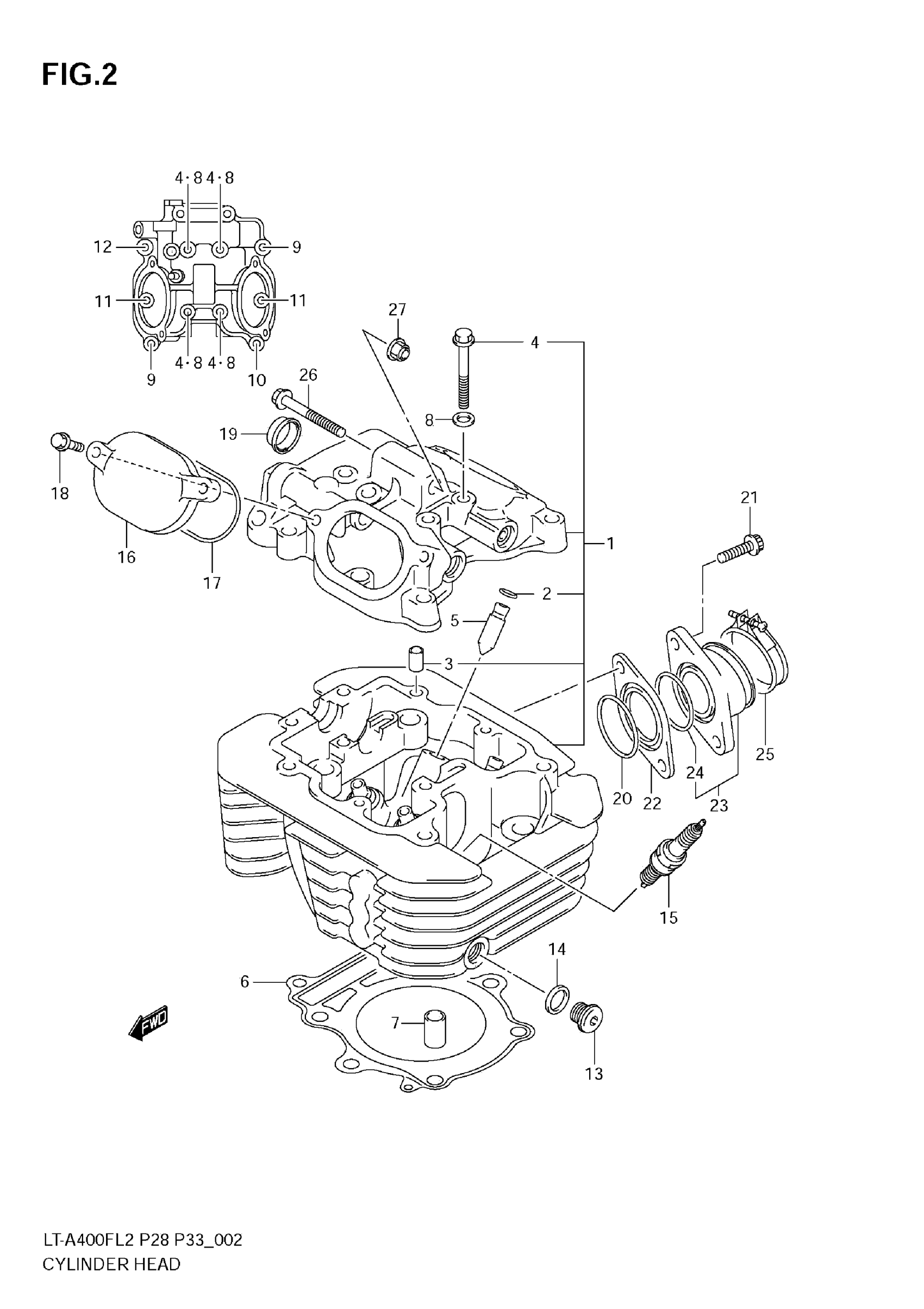

Suzuki LT-A400FL2 (2012) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-27H10

$1,358.13

2

.RING (10X85)

09381-10004

$1.35

3

PIN (6.2X8X11)

09206-08001

$1.77

4

BOLT (6X55)

09103-06102

$1.68

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$44.28

6

GASKET, CYLINDER HEAD

11141-38F00

$32.73

7

PIN (10.4X13X22)

09206-13004

$2.44

8

GASKET (5.8X13X1.2)

09168-06023

$2.01

9

BOLT (6X35)

09103-06108

$2.32

10

BOLT (6X39)

09103-06026

$1.84

11

BOLT

01550-0625A

$1.97

12

BOLT

01550-0630A

$2.31

13

PLUG (L:12)

09248-12004

$8.63

14

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

15

SPARK PLUG (CR7E) | NGK

09482-00516

$5.75

15

SPARK PLUG (U22ESR-N) | DENSO

09482-00515

$5.46

15

SPARK PLUG (CR6E) | OPT DENSO

09482-00528

$5.75

15

SPARK PLUG (U20ESR-N) | OPT DENSO

09482-00529

$5.67

15

SPARK PLUG (CR8E) | OPT DENSO

09482-00456

$5.99

15

SPARK PLUG (U24ESR-N) | OPT DENSO

09482-00457

$5.58

16

CAP,INSPECTION

11175-47D00

$27.22

17

.O RING,INSPECTION CAP

11177-14D01

$4.21

18

BOLT

01550-0620A

$1.97

19

PLUG

09241-25007

$5.58

20

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

21

SCREW

07120-0625A

$2.50

22

INSULATOR, INTAKE PIPE This part replaces 13117-38F00.

13117-38F01

$8.70

23

PIPE ASSY,INTAKE This part replaces 13101-27H00.

13101-27H01

$60.85

24

O RING

13118-38F00

$6.40

25

CLAMP

09402-54208

$5.09

26

BOLT (8X60)

09103-08217

$4.03

27

NUT

08319-3108A

$2.31
