2012 Suzuki LT-A400FL2 Camshaft/valve Diagram

← All diagrams

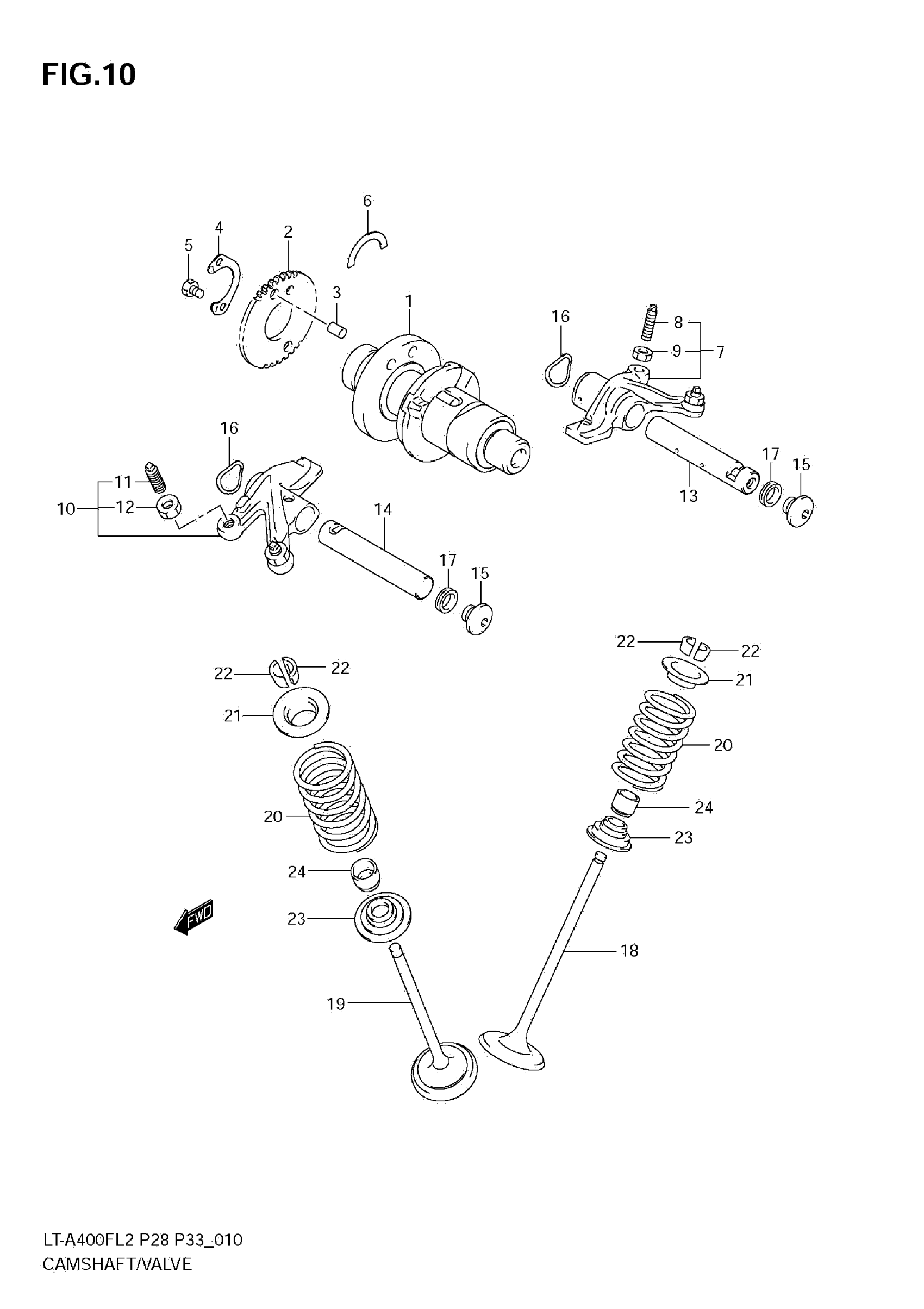

Find the part on the Camshaft/valve diagram for your 2012 Suzuki LT-A400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A400FL2 Camshaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT

12710-27H10

1
Out of stock

2

SPROCKET, CAM DRIVE

12741-38F00

1
Out of stock

3

PIN

09261-05005

1
Out of stock

4

WASHER,SPROCKET

12747-44B00

1
Out of stock

5

BOLT (6X10.5)

09100-06166

2
Out of stock

6

C-RING

09390-22002

1
Out of stock

7

ARM, VALVE ROCKER INTAKE

12840-27H00

1
Out of stock

8

.SCREW,TAPPET ADJUSTING

12842-17C50

2
Out of stock

9

.NUT,TAPPET ADJUSTING

12843-27A00

2
Out of stock

10

ARM, VALVE ROCKER EXHAUST

12850-27H00

1
Out of stock

11

.SCREW,TAPPET ADJUSTING

12842-17C50

2
Out of stock

12

.NUT,TAPPET ADJUSTING

12843-27A00

2
Out of stock

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

1
Out of stock

14

SHAFT, ROCKER ARM EXHAUST

12871-14D50

1
Out of stock

15

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

2
Out of stock

16

WASHER

09164-12018

2
Out of stock

17

GASKET (13.8X18.8X4.8)

09168-14002

2
Out of stock

18

VALVE,INTAKE

12911-14D10

2
Out of stock

19

VALVE,EXHAUST

12912-14D01

2
Out of stock

20

SPRING VALVE

12921-27H00

4
Out of stock

21

RETAINER,VALVE SPRING

12931-27A20

4
Out of stock

22

COTTER, VALVE SPRING

12932-27A00

8
Out of stock

23

SEAT,VALVE SPRING

12933-81400

4
Out of stock

24

OIL SEAL (5X10X9.7)

09289-05011

4
Out of stock
