2011 Suzuki LT-A400FL1 Rear Brake Diagram

← All diagrams

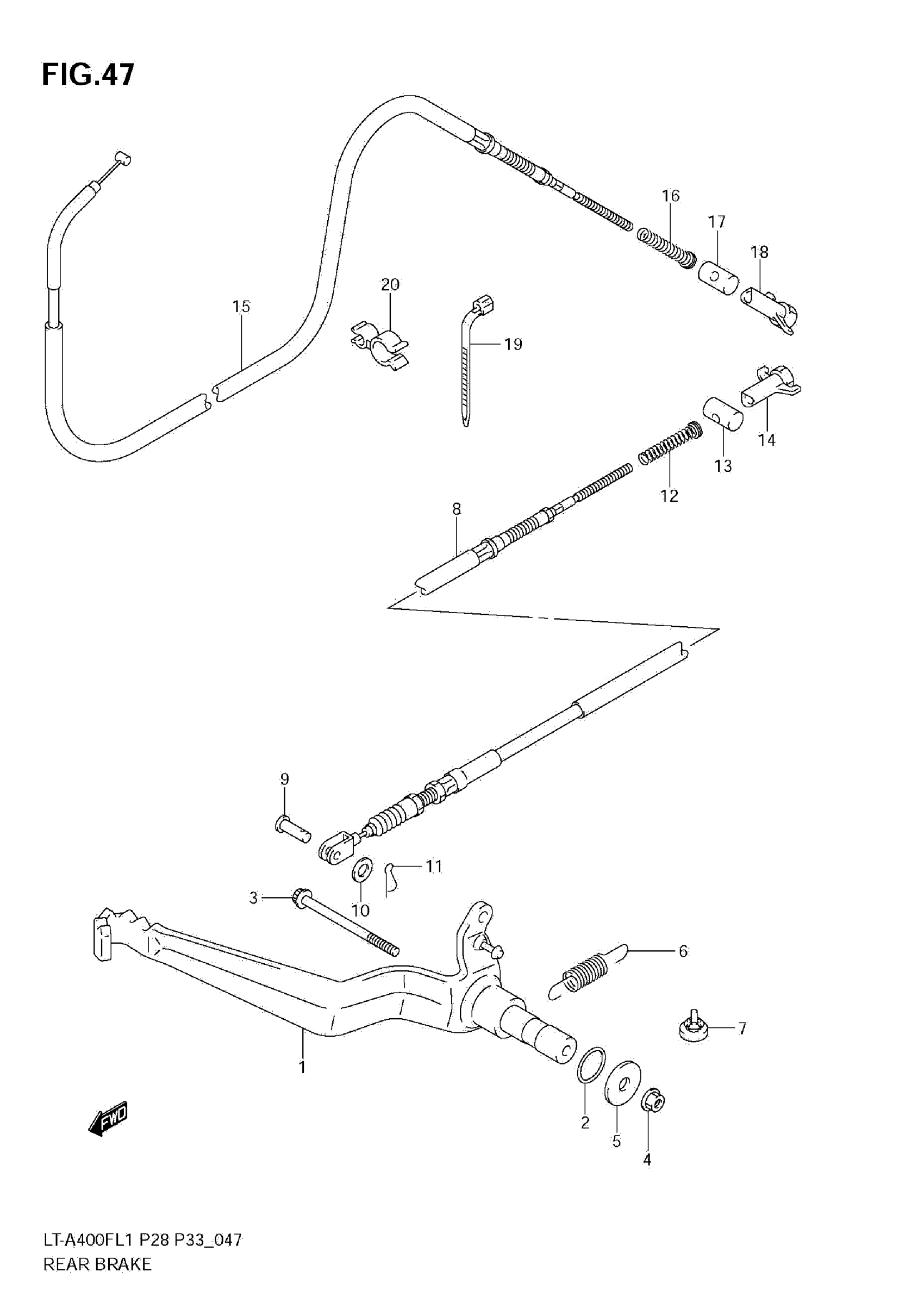

Find the part on the Rear Brake diagram for your 2011 Suzuki LT-A400FL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LT-A400FL1 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL,BRAKE

43110-27H00

1
Out of stock

2

O RING (D:2.4,ID:16.8)

09280-17002

2
Out of stock

3

BOLT

01550-0685A

1
Out of stock

4

NUT

08319-3106A

1
Out of stock

5

WASHER (6.5X28X1.6)

09160-06136

1
Out of stock

6

SPRING

09443-12019

1
Out of stock

7

CUSHION This part replaces 09321-08022.

09321-08026

1
Out of stock

8

CABLE,REAR BRAKE

58510-27H10

1
Out of stock

9

PIN

09200-05001

1
Out of stock

10

WASHER

08322-0106B

1
Out of stock

11

PIN

09385-06012

1
Out of stock

12

SPRING

09440-08042

1
Out of stock

13

PIN

09209-13006

1
Out of stock

14

NUT

09150-06015

1
Out of stock

15

CABLE,PARKING BRAKE This part replaces 58810-27H10.

58810-27H11

1
Out of stock

16

SPRING

09440-08042

1
Out of stock

17

PIN

09209-13006

1
Out of stock

18

NUT

09150-06015

1
Out of stock

19

CLAMP (L:125)

09407-14403

1
Out of stock

20

CLIP

09408-00056

1
Out of stock
