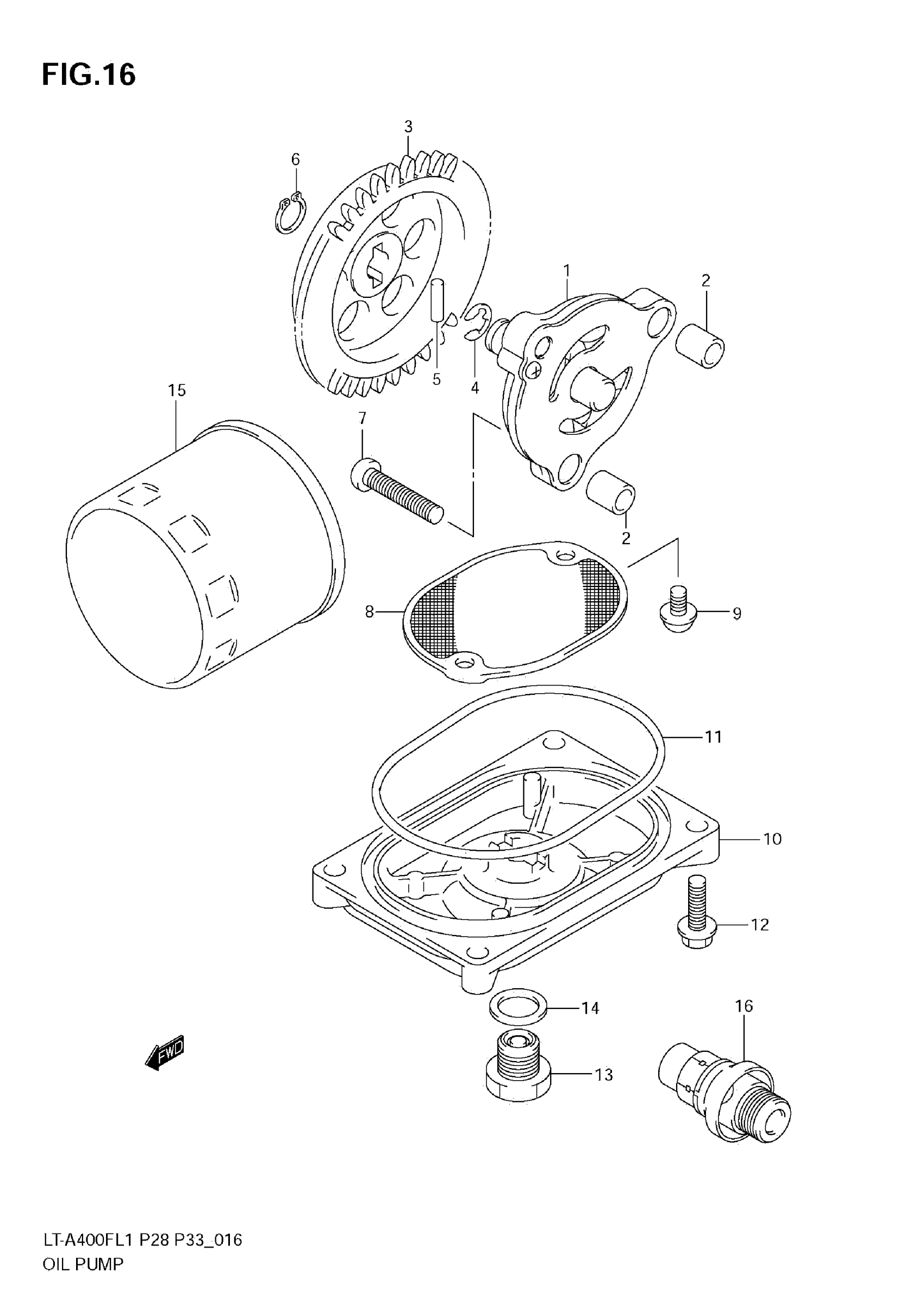

Suzuki LT-A400FL1 (2011) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENGINE OIL

16400-27H00

$185.02

2

PIN

04211-09109

$1.70

3

GEAR, DRIVEN (NT:35)

16331-14D02

$47.60

4

WASHER (10X18X0.5)

09181-10158

$2.03

5

PIN

09261-04009

$1.56

6

CIRCLIP This part replaces 08331-3110A.

08331-31109

$1.82

7

SCREW

02112-0625B

Unavailable

8

STRAINER,ENGINE OIL

16520-27H00

$8.93

9

SCREW

02112-7512A

$2.53

10

CAP, OIL STRAINER

16523-24501

$25.75

11

O RING

16528-24500

$10.46

12

BOLT

01547-0625A

$2.09

13

PLUG (MAGNETO) | DRAIN

09247-14002

$4.86

14

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

15

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$12.35

16

VALVE ASSY, OIL RELIEF

16440-27A01

$74.95
