2011 Suzuki LT-A400FL1 Left Rear Wheel Diagram

← All diagrams

Find the part on the Left Rear Wheel diagram for your 2011 Suzuki LT-A400FL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

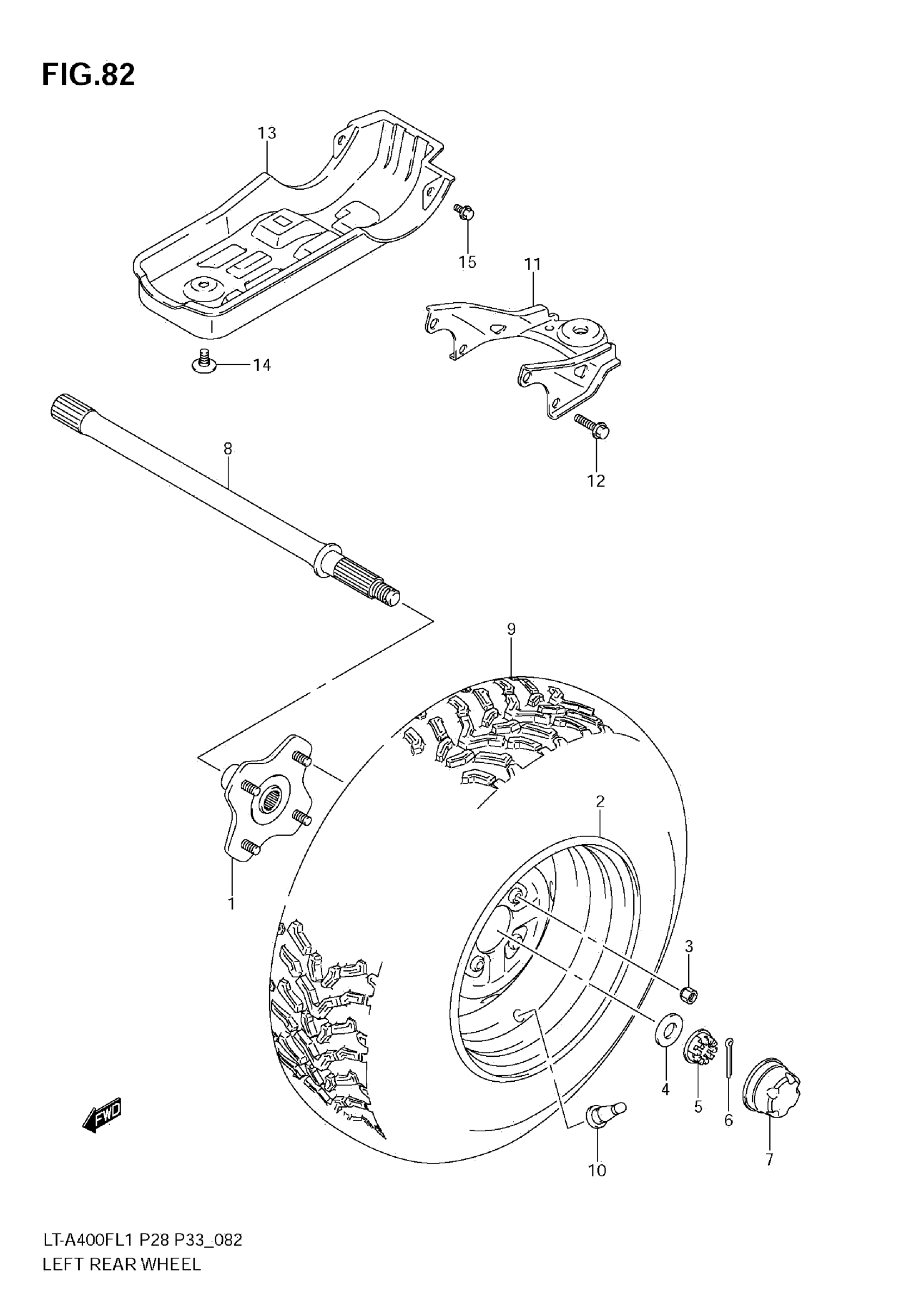

2011 Suzuki LT-A400FL1 Left Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,REAR,L

64110-38F30

1
Out of stock

2

RIM, REAR WHEEL (12X7.5AT) (BLACK)

65310-38F40-291

1
Out of stock

3

NUT

09140-10021

4
Out of stock

4

WASHER,HUB

64723-38F00

1
Out of stock

5

NUT

09141-20008

1
Out of stock

6

COTTER PIN

04111-4035A

1
Out of stock

7

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

8

AXLE,REAR,L

64712-38F20

1
Out of stock

9

TIRE,REAR (AT25X10-12) | AT25X10-12 This part replaces 65110-38FC0.

65110-31G30

1
Out of stock

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

11

PLATE,TRAILER TOW

95210-38F10

1
Out of stock

12

BOLT (10X35)

09103-10422

4
Out of stock

13

PROTECTOR,FINAL CASE This part replaces 61391-38F10.

61391-38F11

1
Out of stock

14

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

1
Out of stock

15

BOLT (6X16.5)

09111-06095

2
Out of stock
