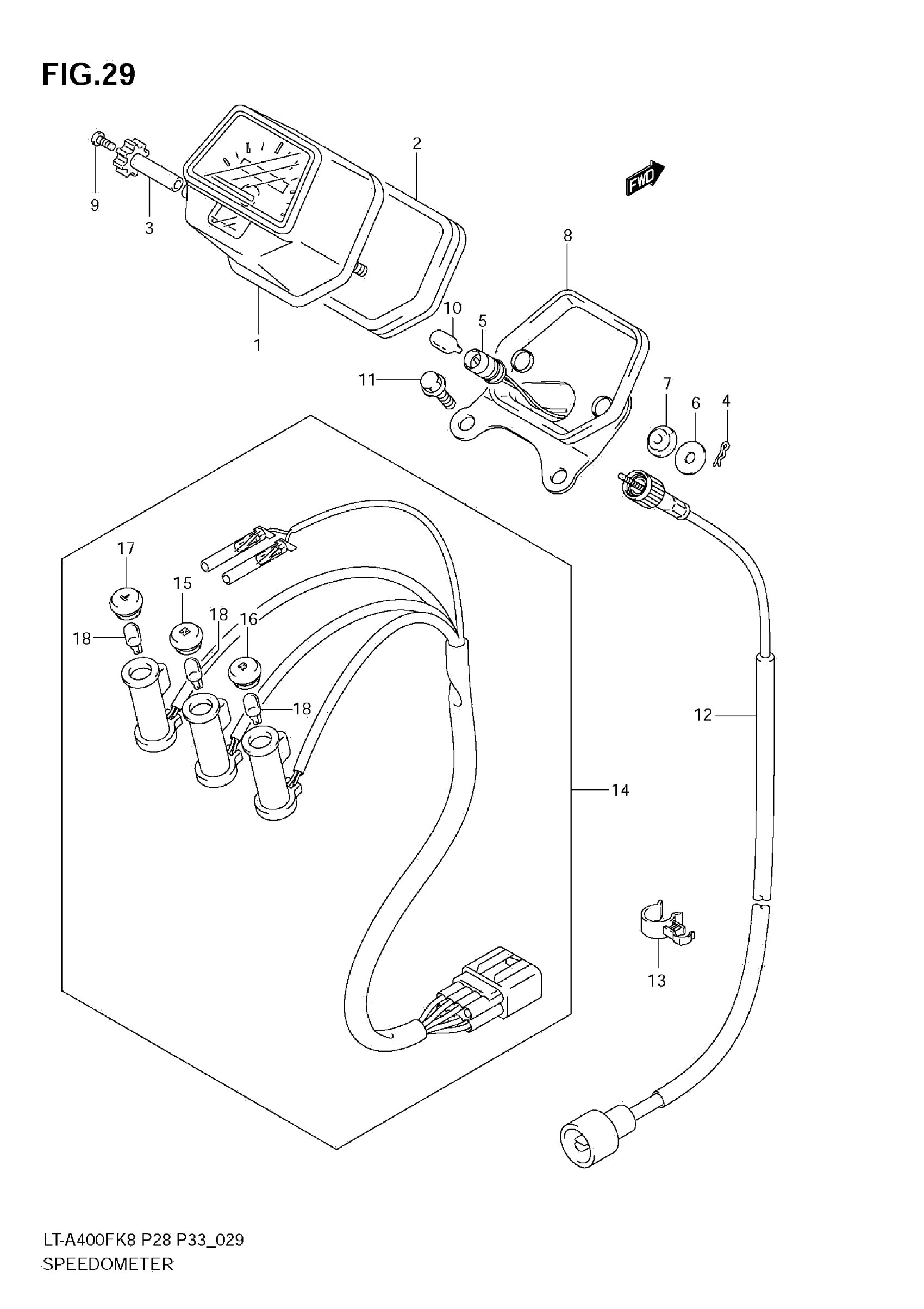

Find the part on the Speedometer diagram for your 2010 Suzuki LT-A400FK8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki LT-A400FK8 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMTR ASSY( This part replaces 34110-38F50.

34100-38F50

1
Out of stock

2

DAMPER

34114-38F40

1
Out of stock

3

KNOB

34124-38F40

1
Out of stock

4

SNAP PIN

34136-38F40

2
Out of stock

5

CORD ASSY

34173-38F40

1
Out of stock

6

WASHER (5.2X18X1.2) This part replaces 34181-38F40.

34181-09F00

2
Out of stock

7

DAMPER

34188-38F40

2
Out of stock

8

BRACKET ASSY

34950-38F40

1
Out of stock

9

SCREW (2X6)

09139-02003

1
Out of stock

10

BULB (12V,1.7W)

09471-12165

1
Out of stock

11

BOLT, SPEEDOMETER

01550-0616A

2
Out of stock

12

CABLE ASSY,SPEE This part replaces 34910-38F00.

34910-38F02

1
Out of stock

13

CLIP

09408-00198

1
Out of stock

14

LAMP ASSY, PILOT

36380-27H00

1
Out of stock

15

LENS, NEUTRAL (GREEN)

36321-45G00

1
Out of stock

16

LENS, REVERSE (RED)

36329-27H00

1
Out of stock

17

LENS, OIL TEMP (RED)

36361-27H00

1
Out of stock

18

BULB (12V,3.4W)

09471-12028

3
Out of stock
